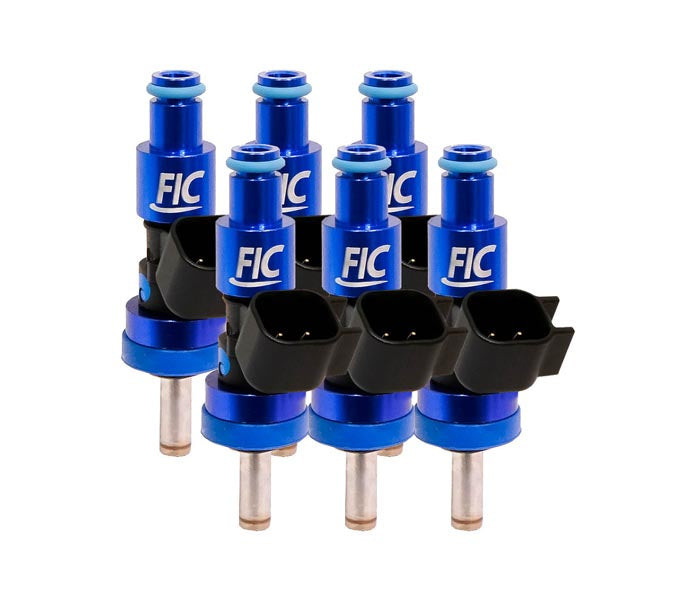

Fuel Injector Clinic 1440cc High-Z Fuel Injector Set (is111-1440h) - 1990-2005 Honda/Acura NSX
Give your 1990-2005 Honda/Acura NSX the fuel capacity required for serious performance with the Fuel Injector Clinic 1440cc High-Z Fuel Injector Set. Part number is111-1440h includes six 1440cc/min saturated, high-impedance ball-and-seat injectors engineered for excellent linearity, short pulse width repeatability, and consistent fuel delivery. The combination of substantial flow capacity and precise injector control makes this set a strong choice for modified NSX applications where dependable fueling and predictable tuning are essential.
Fuel Injector Clinic precisely flow matches each high-performance injector set to within 1 percent. Every injector is individually numbered, and the results for each injector are documented on the detailed flow sheet supplied with the set. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) using CF-16B calibration fluid maintained at 90 degrees F. Tight manufacturing tolerances and superior short pulse width control help provide consistent fueling across all six cylinders while supporting accurate calibration and excellent drivability.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is111-1440h
- Application: 1990-2005 Honda/Acura NSX
- Injector Quantity: 6
- Flow Rating: 1440cc/min
- Injector Type: Ball-and-seat
- Impedance: High impedance / High-Z
- Operation: Saturated
- Flow Matching: Precisely flow matched to within 1 percent
- Testing Pressure: 43.5 PSI (3 Bar)
- Testing Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Pigtails: PGTUSC6
- Optional 3.0L Adapter: PADPUtoJ6 for 1990-2005 3.0L applications
- Optional 3.2L Adapter: PADPUtoH6 for 1997-2005 3.2L applications
- O-Rings: Included for the intended application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1440cc/min high-performance fuel injectors
- Designed for 1990-2005 Honda/Acura NSX applications
- High fuel-flow capacity for demanding performance builds
- Saturated, high-impedance ball-and-seat injector construction
- Excellent linearity for predictable fuel delivery
- Strong short pulse width repeatability for precise injector control
- Precisely flow matched to within 1 percent
- Each injector is individually numbered
- Detailed injector flow results supplied with the matched set
- Tight manufacturing tolerances promote consistent fueling across all six cylinders
- Superior short pulse width control helps simplify tuning and maintain excellent drivability
- Flow tested and rated at 43.5 PSI and 90 degrees F using CF-16B calibration fluid
- Includes PGTUSC6 solder-in pigtails
- Optional plug-and-play wiring adapters available for factory harness connections
- PADPUtoJ6 adapter option for 1990-2005 3.0L applications
- PADPUtoH6 adapter option for 1997-2005 3.2L applications
- Includes O-rings required for the intended application
- Uses brand-new injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against failures caused by original manufacturing defects
Fitment
- 1990 Honda/Acura NSX 3.0L
- 1991 Honda/Acura NSX 3.0L
- 1992 Honda/Acura NSX 3.0L
- 1993 Honda/Acura NSX 3.0L
- 1994 Honda/Acura NSX 3.0L
- 1995 Honda/Acura NSX 3.0L
- 1996 Honda/Acura NSX 3.0L
- 1997 Honda/Acura NSX 3.0L / 3.2L
- 1998 Honda/Acura NSX 3.0L / 3.2L
- 1999 Honda/Acura NSX 3.0L / 3.2L
- 2000 Honda/Acura NSX 3.0L / 3.2L
- 2001 Honda/Acura NSX 3.0L / 3.2L
- 2002 Honda/Acura NSX 3.0L / 3.2L
- 2003 Honda/Acura NSX 3.0L / 3.2L
- 2004 Honda/Acura NSX 3.0L / 3.2L
- 2005 Honda/Acura NSX 3.0L / 3.2L
The is111-1440h can be configured with the included PGTUSC6 solder-in pigtails or optional plug-and-play adapters. PADPUtoJ6 adapters are available for 1990-2005 3.0L applications, while PADPUtoH6 adapters are available for 1997-2005 3.2L applications. If your NSX uses an aftermarket fuel rail or another unusual fuel-system configuration, contact Beefcake Racing before ordering to confirm proper injector fitment.
FAQs
How are the Fuel Injector Clinic is111-1440h injectors matched and tested?
Fuel Injector Clinic precisely flow matches each six-injector set to within 1 percent. Every injector is individually numbered and its results are documented on the detailed flow sheet supplied with the set. The injectors are flow tested and rated at 43.5 PSI (3 Bar) using CF-16B calibration fluid maintained at 90 degrees F, providing tuners with a consistent foundation for calibration.
What wiring options are available for the is111-1440h NSX injector set?
The set is available with PGTUSC6 solder-in pigtails. Fuel Injector Clinic also offers PADPUtoJ6 plug-and-play adapters for 1990-2005 3.0L NSX applications and PADPUtoH6 plug-and-play adapters for 1997-2005 3.2L applications, allowing the appropriate connection method to be selected for the vehicle.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Building a properly matched NSX fuel system means choosing the right injector capacity, wiring solution, supporting fuel-system components, and calibration for the combination. Beefcake Racing can help you determine whether the Fuel Injector Clinic is111-1440h is the right injector set for your build and make sure you get the appropriate connection option for your NSX. For fitment, fuel-system, or ordering assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
