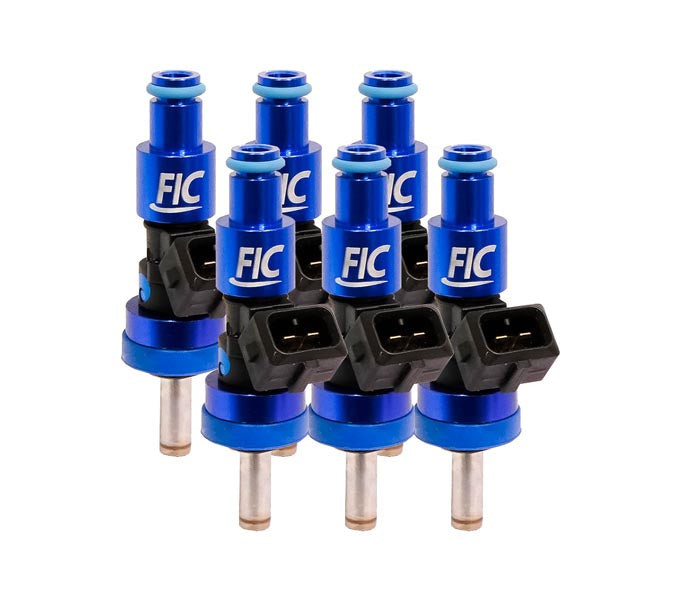

Fuel Injector Clinic 1200cc High-Z Fuel Injector Set (is111-1200h) - 1990-2005 Honda/Acura NSX
Step up the fuel system in your 1990-2005 Honda/Acura NSX with the Fuel Injector Clinic 1200cc High-Z Fuel Injector Set. Part number is111-1200h includes six 1200cc/min saturated, high-impedance ball-and-seat injectors engineered for excellent linearity, short pulse width repeatability, and consistent fuel delivery. With substantially more fueling capacity for modified and higher-output combinations, these injectors give NSX builders the flow they need without sacrificing the precise control that matters for tuning and drivability.
Fuel Injector Clinic precisely flow matches each high-performance injector set to within 1 percent. Every injector is individually numbered, with its results documented on the detailed flow sheet supplied with the set. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with CF-16B calibration fluid maintained at 90 degrees F. Superior short pulse width control and tight manufacturing tolerances help provide consistent fueling across all six cylinders, making these injectors easier to calibrate while supporting excellent drivability.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is111-1200h
- Application: 1990-2005 Honda/Acura NSX
- Injector Quantity: 6
- Flow Rating: 1200cc/min
- Injector Type: Ball-and-seat
- Impedance: High impedance / High-Z
- Operation: Saturated
- Flow Matching: Precisely flow matched to within 1 percent
- Testing Pressure: 43.5 PSI (3 Bar)
- Testing Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Harness Connection: Direct connection available for 1990-2005 3.0L applications
- Included Pigtails: PGTJETR6Q
- Optional Adapter: PADPJtoH6 for 1997-2005 3.2L applications
- O-Rings: Included for the intended factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1200cc/min high-performance fuel injectors for the Honda/Acura NSX
- Saturated, high-impedance ball-and-seat injector design
- Excellent linearity for predictable fuel delivery
- Superior short pulse width control for precise injector operation
- Strong short pulse width repeatability for consistent fueling
- Precisely flow matched to within 1 percent
- Each injector is individually numbered
- Detailed flow results supplied with the matched injector set
- Flow tested and rated at 43.5 PSI and 90 degrees F
- Testing performed using CF-16B calibration fluid
- Tight manufacturing tolerances help simplify calibration and support excellent drivability
- Direct harness connection available for 1990-2005 3.0L NSX applications
- Includes PGTJETR6Q solder-in pigtails
- Optional PADPJtoH6 plug-and-play adapters available for 1997-2005 3.2L applications
- Includes the O-rings required for the intended factory application
- Uses brand-new injectors rather than remanufactured or core-program injectors
- Backed by Fuel Injector Clinic's lifetime warranty against failures caused by original manufacturing defects
Fitment
- 1990 Honda/Acura NSX 3.0L
- 1991 Honda/Acura NSX 3.0L
- 1992 Honda/Acura NSX 3.0L
- 1993 Honda/Acura NSX 3.0L
- 1994 Honda/Acura NSX 3.0L
- 1995 Honda/Acura NSX 3.0L
- 1996 Honda/Acura NSX 3.0L
- 1997 Honda/Acura NSX 3.0L / 3.2L
- 1998 Honda/Acura NSX 3.0L / 3.2L
- 1999 Honda/Acura NSX 3.0L / 3.2L
- 2000 Honda/Acura NSX 3.0L / 3.2L
- 2001 Honda/Acura NSX 3.0L / 3.2L
- 2002 Honda/Acura NSX 3.0L / 3.2L
- 2003 Honda/Acura NSX 3.0L / 3.2L
- 2004 Honda/Acura NSX 3.0L / 3.2L
- 2005 Honda/Acura NSX 3.0L / 3.2L
The is111-1200h supports direct harness connection for 1990-2005 3.0L applications and includes PGTJETR6Q pigtails. For 1997-2005 3.2L applications, PADPJtoH6 plug-and-play adapters are available. If your NSX uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to confirm proper injector fitment.
FAQs
How are the Fuel Injector Clinic is111-1200h injectors matched and tested?
Fuel Injector Clinic precisely flow matches each six-injector set to within 1 percent. Every injector is individually numbered and its results are documented on the detailed flow sheet supplied with the set. The injectors are flow tested and rated at 43.5 PSI (3 Bar) using CF-16B calibration fluid maintained at 90 degrees F, giving tuners a consistent foundation for accurate calibration.
What wiring options are available for the is111-1200h NSX injector set?
The 1200cc injectors offer direct harness connection for 1990-2005 3.0L NSX applications and are available with PGTJETR6Q solder-in pigtails. For 1997-2005 3.2L applications, PADPJtoH6 plug-and-play adapters are available to connect the injectors to the factory harness without cutting or soldering.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
A properly matched NSX fuel system requires more than simply choosing a larger injector. Injector capacity, wiring configuration, supporting fuel-system components, and calibration all need to work together. Beefcake Racing can help you determine whether the Fuel Injector Clinic is111-1200h is the right choice for your build and make sure you order the correct connection option for your NSX. For fitment, fuel-system, or ordering assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
