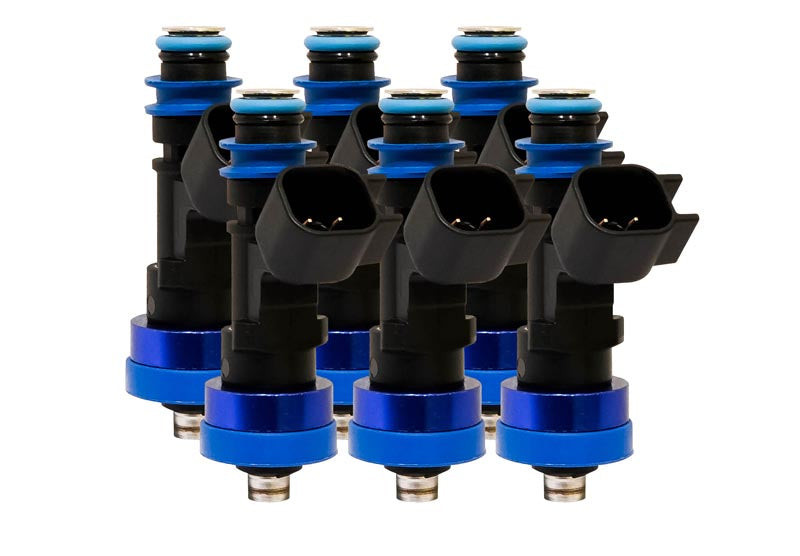

Fuel Injector Clinic 1000cc High-Z Fuel Injector Set (is111-1000h) - 1990-2005 Honda/Acura NSX
Give your 1990-2005 Honda/Acura NSX the fuel delivery needed for a serious performance build with the Fuel Injector Clinic 1000cc High-Z Fuel Injector Set. Part number is111-1000h includes six 1000cc/min saturated, high-impedance ball-and-seat injectors engineered for excellent linearity and short pulse width repeatability. The combination of increased fuel capacity and precise low-pulse control makes this set a strong choice for NSX owners who need substantially more fueling capability while maintaining the response and drivability expected from a properly calibrated performance car.
Fuel Injector Clinic precisely flow matches each high-performance injector set to within 1 percent. Every injector is individually numbered, and the results for each injector are documented on the detailed flow sheet supplied with the set. FIC flow tests and rates these injectors at 43.5 PSI (3 Bar) with CF-16B calibration fluid maintained at 90 degrees F. Tight manufacturing tolerances and superior short pulse width control provide tuners with consistent injector behavior across all six cylinders, helping deliver accurate calibration from low-load operation through high-demand fueling.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: is111-1000h
- Application: 1990-2005 Honda/Acura NSX
- Injector Quantity: 6
- Flow Rating: 1000cc/min
- Injector Type: Ball-and-seat
- Impedance: High impedance / High-Z
- Operation: Saturated
- Flow Matching: Precisely flow matched to within 1 percent
- Testing Pressure: 43.5 PSI (3 Bar)
- Testing Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included Pigtails: PGTUSC6
- OBD1 Plug-and-Play Adapter: PADPUtoJ6
- OBD2 Plug-and-Play Adapter: PADPUtoH6
- O-Rings: Included for the intended factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1000cc/min performance fuel injectors engineered for the 1990-2005 Honda/Acura NSX
- Saturated, high-impedance ball-and-seat injector design
- Excellent injector linearity for predictable fuel delivery
- Superior short pulse width control for precise low-load operation
- Strong short pulse width repeatability for consistent injector response
- Precisely flow matched to within 1 percent
- Each injector is individually numbered
- Detailed injector flow results supplied with the matched set
- Flow tested and rated at 43.5 PSI (3 Bar)
- Testing performed at a controlled fuel temperature of 90 degrees F
- CF-16B calibration fluid used during flow testing
- Tight manufacturing tolerances help simplify tuning and support excellent drivability
- Includes PGTUSC6 solder-in pigtails
- Optional PADPUtoJ6 plug-and-play adapters available for the stock OBD1 harness
- Optional PADPUtoH6 plug-and-play adapters available for the stock OBD2 harness
- Includes O-rings required for the intended factory application
- Uses brand-new injectors rather than remanufactured or core-program injectors
- Covered by Fuel Injector Clinic's lifetime warranty against failures caused by original manufacturing defects
Fitment
- 1990 Honda/Acura NSX 3.0L
- 1991 Honda/Acura NSX 3.0L
- 1992 Honda/Acura NSX 3.0L
- 1993 Honda/Acura NSX 3.0L
- 1994 Honda/Acura NSX 3.0L
- 1995 Honda/Acura NSX 3.0L
- 1996 Honda/Acura NSX 3.0L
- 1997 Honda/Acura NSX 3.0L / 3.2L
- 1998 Honda/Acura NSX 3.0L / 3.2L
- 1999 Honda/Acura NSX 3.0L / 3.2L
- 2000 Honda/Acura NSX 3.0L / 3.2L
- 2001 Honda/Acura NSX 3.0L / 3.2L
- 2002 Honda/Acura NSX 3.0L / 3.2L
- 2003 Honda/Acura NSX 3.0L / 3.2L
- 2004 Honda/Acura NSX 3.0L / 3.2L
- 2005 Honda/Acura NSX 3.0L / 3.2L
The injector connector must be matched to the NSX wiring harness. PGTUSC6 solder-in pigtails are included, or optional plug-and-play adapters can eliminate cutting and soldering. PADPUtoJ6 adapters are available for 1990-2005 3.0L applications, while PADPUtoH6 adapters are available for 1997-2005 3.2L applications. If your NSX uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to confirm proper injector fitment.
FAQs
How are the Fuel Injector Clinic is111-1000h injectors matched and tested?
Fuel Injector Clinic precisely flow matches the six injectors in each set to within 1 percent. Each injector is individually numbered, with its results documented on the detailed flow sheet supplied with the set. FIC flow tests and rates the injectors at 43.5 PSI (3 Bar) using CF-16B calibration fluid maintained at 90 degrees F.
Do the is111-1000h injectors require wiring changes on a 1990-2005 NSX?
The set includes PGTUSC6 pigtails that can be soldered into the vehicle harness. For an installation without cutting or soldering, optional PADPUtoJ6 plug-and-play adapters are available for 1990-2005 3.0L applications, while PADPUtoH6 adapters are available for 1997-2005 3.2L applications.
Why Buy Fuel Injector Clinic Injectors From Beefcake Racing?
Building the right NSX fuel system means matching injector capacity, electrical connections, supporting fuel-system components, and calibration to the demands of the engine. Beefcake Racing can help you determine whether the Fuel Injector Clinic is111-1000h is the right injector set for your combination and make sure you order the correct wiring solution for your NSX. For fitment, fuel-system, or ordering assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
