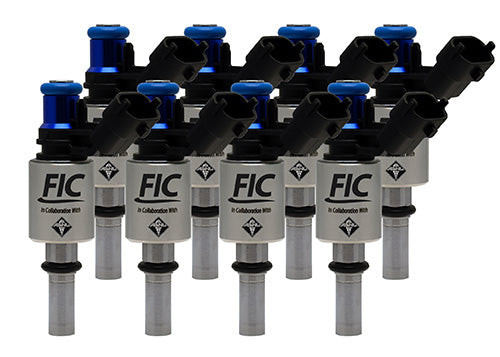

Fuel Injector Clinic 3000cc Injector Set for 8 Cylinder Engines (FIC01-3000-8)
The Fuel Injector Clinic FIC01-3000-8 3000cc Injector Set is engineered for extreme horsepower applications where massive fuel delivery and precise control are equally important. This complete set of eight 3000cc stainless steel injectors is designed for engines utilizing standard 64mm, 14mm top, 14mm bottom fuel rail and intake configurations. Built for professional motorsports, high-boost turbocharged combinations, methanol-capable race applications, and other demanding fuel systems, these injectors deliver exceptional flow while maintaining excellent linearity and repeatable short pulse width performance for easier tuning.
Compatible with all ECUs utilizing 8/2 Amp peak and hold injector drivers, the FIC01-3000-8 incorporates Fuel Injector Clinic's latest injector technology for consistent fueling throughout the operating range. Each injector is supplied with pins and clips for the included 2-way Kompakt 1.A electrical connector, providing the components needed for professional installation.
Every injector set is individually matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector receives its own serial number and is accompanied by a detailed Data Match Sheet containing precise flow and latency information for the matched set. Fuel Injector Clinic flow tests every injector at 43.5 PSI (3 Bar) and 90 degrees Fahrenheit using calibration fluid. The injectors are configured with 14mm upper and 14mm lower O-rings as standard. If your application uses an aftermarket fuel rail or non-standard intake manifold, Fuel Injector Clinic recommends verifying fitment before ordering.
Features
- Complete set of eight 3000cc fuel injectors
- Designed for 8-cylinder engines
- Stainless steel injector construction
- Compatible with standard 64mm fuel rail spacing
- 14mm upper and 14mm lower O-ring configuration
- Compatible with ECUs using 8/2 Amp peak and hold injector drivers
- Latest Fuel Injector Clinic injector technology
- Excellent injector linearity
- Superior short pulse width repeatability
- Fuel Injector Clinic proprietary Data Match Technology
- Each injector individually serial numbered
- Includes detailed Data Match Sheet with flow and latency information
- Flow tested at 43.5 PSI (3 Bar)
- Flow tested at 90 degrees Fahrenheit using calibration fluid
- Includes pins and clips for 2-way Kompakt 1.A electrical connectors
- Ideal for extreme horsepower racing and custom EFI applications
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Manufacturer Part Number: FIC01-3000-8
- Injector Quantity: 8
- Flow Rate: 3000cc/min
- Injector Type: Peak and Hold
- ECU Compatibility: 8/2 Amp peak and hold injector drivers
- Fuel Rail Spacing: Standard 64mm
- O-Ring Size: 14mm top x 14mm bottom
- Injector Material: Stainless Steel
- Flow Matching: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Flow Test Temperature: 90 degrees Fahrenheit
- Included: Eight injectors, Data Match Sheet, pins, and clips for 2-way Kompakt 1.A connectors
FAQs
What ECU is required for these injectors?
The FIC01-3000-8 is designed for engine management systems utilizing 8/2 Amp peak and hold injector drivers. Verify your ECU's injector driver configuration before installation.
Will these fit every aftermarket fuel rail?
These injectors are configured with standard 64mm spacing and 14mm upper and lower O-rings. If your application uses a custom fuel rail or intake manifold, verify fitment before ordering.
Why Buy from Beefcake Racing?
Beefcake Racing offers genuine Fuel Injector Clinic fuel system components backed by knowledgeable technical support. Whether you're building a high-horsepower drag car, race engine, or custom EFI combination, our team can help you select the proper injectors and supporting fuel system components for your application.
