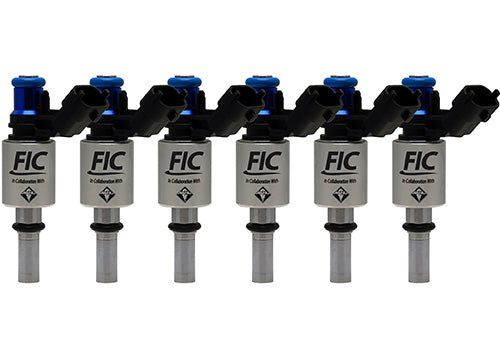

Fuel Injector Clinic 3000cc Injector Set for 6 Cylinder Engines (FIC01-3000-6)
The Fuel Injector Clinic FIC01-3000-6 3000cc Injector Set is engineered for extreme horsepower six-cylinder engines that require massive fuel delivery with uncompromising precision. This complete set of six 3000cc stainless steel injectors is designed to fit standard 64mm fuel rail spacing with 14mm upper and 14mm lower O-rings, making it an excellent choice for custom turbocharged, methanol, drag racing, and other high-output EFI applications. Utilizing Fuel Injector Clinic's latest injector technology, these injectors deliver exceptional linearity and outstanding short pulse width repeatability for easier tuning and consistent fuel delivery.
Designed for compatibility with all engine management systems utilizing 8/2 Amp peak and hold injector drivers, the FIC01-3000-6 provides the fuel capacity required for serious racing combinations while maintaining excellent drivability. Each injector set includes pins and clips for the supplied 2-way Kompakt 1.A electrical connector, providing everything needed for professional installation.
Every injector set is individually matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and supplied with a comprehensive Data Match Sheet containing precise flow and latency values for the matched set. Fuel Injector Clinic flow tests every injector at 43.5 PSI (3 Bar) and 90 degrees Fahrenheit using calibration fluid. The injectors are configured with 14mm upper and 14mm lower O-rings as standard. If your application utilizes an aftermarket fuel rail or non-standard intake manifold, Fuel Injector Clinic recommends verifying fitment before ordering.
Features
- Complete set of six 3000cc fuel injectors
- Designed for 6-cylinder engines
- Stainless steel injector construction
- Compatible with standard 64mm fuel rail spacing
- 14mm upper and 14mm lower O-ring configuration
- Compatible with ECUs utilizing 8/2 Amp peak and hold injector drivers
- Latest Fuel Injector Clinic injector technology
- Excellent injector linearity
- Superior short pulse width repeatability
- Fuel Injector Clinic proprietary Data Match Technology
- Each injector individually serial numbered
- Includes detailed Data Match Sheet with flow and latency information
- Flow tested at 43.5 PSI (3 Bar)
- Flow tested at 90 degrees Fahrenheit using calibration fluid
- Includes pins and clips for 2-way Kompakt 1.A electrical connectors
- Ideal for extreme horsepower racing and custom EFI applications
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Manufacturer Part Number: FIC01-3000-6
- Injector Quantity: 6
- Flow Rate: 3000cc/min
- Injector Type: Peak and Hold
- ECU Compatibility: 8/2 Amp peak and hold injector drivers
- Fuel Rail Spacing: Standard 64mm
- O-Ring Size: 14mm top x 14mm bottom
- Injector Material: Stainless Steel
- Flow Matching: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Flow Test Temperature: 90 degrees Fahrenheit
- Included: Six injectors, Data Match Sheet, pins, and clips for 2-way Kompakt 1.A connectors
FAQs
What type of ECU do these injectors require?
The FIC01-3000-6 is designed for engine management systems equipped with 8/2 Amp peak and hold injector drivers. Verify your ECU's injector driver configuration before installation.
Will these fit my aftermarket fuel rail and intake manifold?
These injectors are configured with standard 64mm fuel rail spacing and 14mm upper and lower O-rings. If your application uses custom fuel rails or a non-standard intake manifold, verify fitment before ordering.
