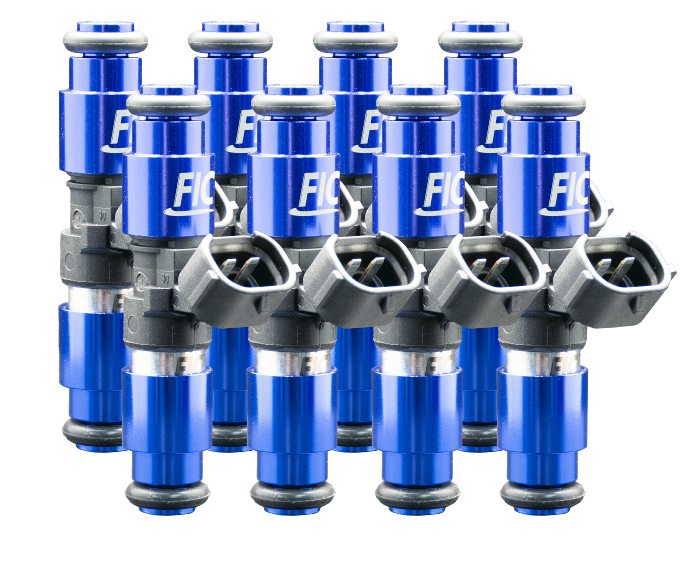

Fuel Injector Clinic Eight Cylinder 2150cc Custom Injector Set - 64mm Height - 14mm Top O-Ring Diameter - 14mm Bottom O-Ring Diameter (2150-64-14-14-8)
Fuel Injector Clinic's 2150cc Custom Injector Set is engineered for extreme horsepower eight cylinder applications where enormous fuel delivery must be combined with outstanding idle quality and drivability. Featuring a 64mm injector body with 14mm upper and lower O-ring diameters, this injector set is ideal for high-output turbocharged, supercharged, and naturally aspirated combinations running gasoline or E85-compatible fuel systems.
Despite their tremendous flow capacity, these injectors offer excellent low pulse width control thanks to Fuel Injector Clinic's proprietary Data Match Technology. Each injector is dynamically matched for flow and latency, individually serial numbered, and supplied with a comprehensive Data Match Sheet to simplify ECU calibration and maximize fueling consistency. Every custom injector set includes solder-in pigtails and all required O-rings for the specified injector configuration. If you need assistance selecting the correct injector dimensions, contact Fuel Injector Clinic at (561) 427-0082 before ordering.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 2150-64-14-14-8
- Part Number: ISC-2150H-8
- Injector Flow Rate: 2150cc/min
- Injector Height: 64mm
- Engine Configuration: 8 Cylinder
- Top O-Ring Diameter: 14mm
- Bottom O-Ring Diameter: 14mm
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 psi (3 Bar)
- Test Fluid: CF-16B Calibration Fluid
- Fuel Temperature During Testing: 90 degrees F
- Included: Eight matched injectors, Data Match Sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Complete matched set of eight 2150cc high performance fuel injectors
- 64mm injector body configuration
- Dynamic flow and latency matching using Fuel Injector Clinic Data Match Technology
- Outstanding short pulse width control for improved idle quality
- Excellent part throttle drivability despite extremely high flow capacity
- Each injector individually serial numbered with comprehensive Data Match Sheet included
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Includes solder-in pigtails for custom installations
- Supplied with all required O-rings for the specified injector configuration
- Protected by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects
Important Fuel Compatibility Information
The internal construction of this 2150cc injector includes a seal that may swell when exposed to MTBE oxygenated fuels, including VP Q16 and VP Import. Seal swelling can significantly reduce injector flow and make the injector unsuitable for these fuels. When operating with alcohol-based fuels such as E85, follow Fuel Injector Clinic's recommended storage and maintenance procedures to help minimize corrosion during extended periods of inactivity.
Fitment
Custom eight cylinder fuel injector applications requiring:
- 2150cc injectors
- 64mm injector height
- 14mm upper O-ring
- 14mm lower O-ring
Designed for custom fuel systems utilizing aftermarket fuel rails, intake manifolds, or standalone engine management systems. Always verify injector height and O-ring dimensions before ordering. Contact Fuel Injector Clinic if you need assistance selecting the proper injector configuration.
FAQs
Can these injectors be used with VP Q16 or VP Import?
No. These injectors are not compatible with MTBE oxygenated fuels such as VP Q16 or VP Import because internal seal swelling can significantly reduce injector flow.
Why do these large injectors still provide good drivability?
Fuel Injector Clinic's proprietary Data Match Technology dynamically matches each injector for flow and latency, providing excellent short pulse width control, smoother idle, and improved part throttle performance.
