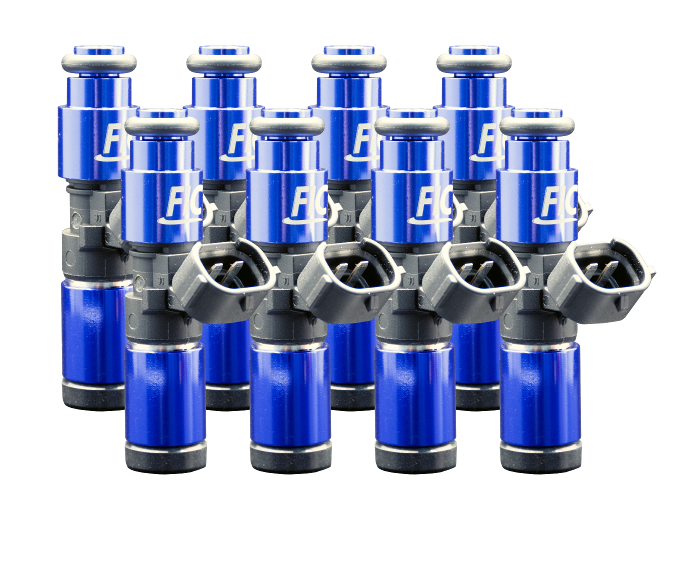

Fuel Injector Clinic Eight Cylinder 2150cc Custom Injector Set - 64mm Height - 14mm Top O-Ring Diameter - 11mm Bottom O-Ring Diameter (2150-64-14-11-8)
Fuel Injector Clinic's 2150cc Custom Injector Set is purpose-built for extreme horsepower eight cylinder applications that demand massive fuel delivery without sacrificing idle quality or drivability. Featuring a 64mm injector body with a 14mm upper O-ring and 11mm lower O-ring configuration, this injector set is ideal for high-output turbocharged, supercharged, and naturally aspirated combinations utilizing gasoline or E85-compatible fuel systems.
Fuel Injector Clinic's proprietary Data Match Technology dynamically matches each injector for both flow and latency, allowing exceptional short pulse width control despite the injector's tremendous 2150cc flow capacity. Every injector is individually serial numbered and supplied with a comprehensive Data Match Sheet containing detailed flow and latency information for more accurate ECU calibration. Each custom injector set includes solder-in pigtails and all required O-rings for the specified injector configuration. If you need assistance selecting the proper injector dimensions, contact Fuel Injector Clinic at (561) 427-0082 before ordering.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 2150-64-14-11-8
- Part Number: ISC-2150H-8
- Injector Flow Rate: 2150cc/min
- Injector Height: 64mm
- Engine Configuration: 8 Cylinder
- Top O-Ring Diameter: 14mm
- Bottom O-Ring Diameter: 11mm
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 psi (3 Bar)
- Test Fluid: CF-16B Calibration Fluid
- Fuel Temperature During Testing: 90 degrees F
- Included: Eight matched injectors, Data Match Sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Complete matched set of eight 2150cc high performance fuel injectors
- 64mm injector body configuration
- Dynamic flow and latency matching using Fuel Injector Clinic Data Match Technology
- Excellent short pulse width control for superior idle quality
- Outstanding drivability despite extremely high injector flow capacity
- Each injector individually serial numbered with comprehensive Data Match Sheet included
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Includes solder-in pigtails for custom installations
- Supplied with all required O-rings for the specified injector configuration
- Protected by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects
Important Fuel Compatibility Information
The internal construction of this 2150cc injector includes a seal that may swell when exposed to MTBE oxygenated fuels, including VP Q16 and VP Import. Seal swelling can significantly reduce injector flow and render the injector unsuitable for these fuels. When using alcohol-based fuels such as E85, follow Fuel Injector Clinic's recommended maintenance procedures to minimize corrosion during extended periods of inactivity.
Fitment
Custom eight cylinder fuel injector applications requiring:
- 2150cc injectors
- 64mm injector height
- 14mm upper O-ring
- 11mm lower O-ring
Designed for custom fuel systems utilizing aftermarket fuel rails, intake manifolds, or standalone engine management systems. Always verify injector height and O-ring dimensions before ordering. Contact Fuel Injector Clinic if you need assistance selecting the proper injector configuration.
FAQs
Can these injectors be used with VP Q16 or VP Import fuel?
No. Fuel Injector Clinic advises against using MTBE oxygenated fuels such as VP Q16 or VP Import because internal seal swelling can significantly reduce injector flow.
Why are these 2150cc injectors still easy to tune?
Fuel Injector Clinic's proprietary Data Match Technology dynamically matches injector flow and latency, resulting in excellent short pulse width control, improved idle quality, and more predictable ECU calibration.
Why Buy from Beefcake Racing?
Beefcake Racing proudly offers genuine Fuel Injector Clinic products backed by knowledgeable technical support. Whether you're building a street car, drag car, road race vehicle, or a dedicated competition vehicle, we'll help you choose the correct injector package for your custom fuel system.
If you have questions before placing your order, contact us at sales@beefcakeracing.com or call 1-855-827-7223. We're committed to helping you build a dependable, high-performance fuel system.
