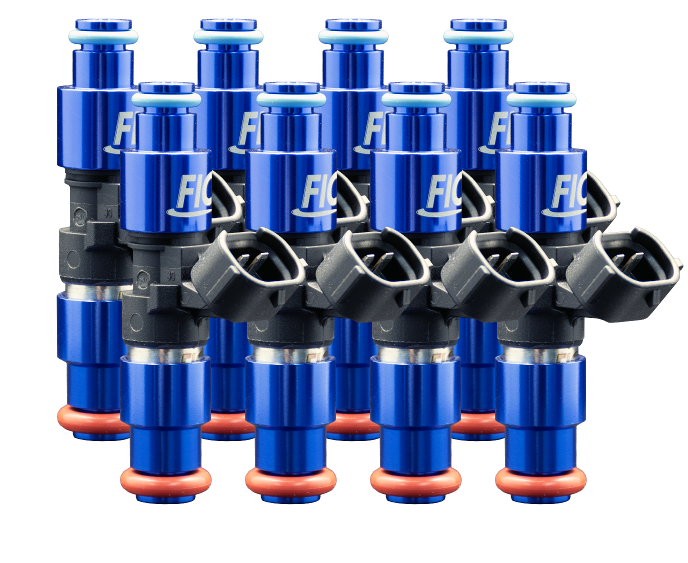

Fuel Injector Clinic Eight Cylinder 2150cc Custom Injector Set - 64mm Height - 11mm Top O-Ring Diameter - 15mm Bottom O-Ring Diameter (2150-64-11-15-8)
Fuel Injector Clinic's 2150cc Custom Injector Set is engineered for extreme horsepower eight cylinder applications that demand massive fuel delivery without sacrificing idle quality or drivability. Featuring a 64mm injector body with an 11mm upper O-ring and 15mm lower O-ring configuration, these high-flow injectors are an outstanding choice for turbocharged, supercharged, and high-output naturally aspirated combinations operating on gasoline or E85-compatible fuel systems.
Fuel Injector Clinic's proprietary Data Match Technology dynamically matches each injector for both flow and latency, allowing exceptional short pulse width control despite the injector's enormous flow capacity. Every injector is individually serial numbered and supplied with a comprehensive Data Match Sheet to simplify ECU calibration and maximize fueling consistency. Each custom injector set includes solder-in pigtails and all required O-rings for the specified injector configuration. If you need assistance selecting the proper injector dimensions, call Fuel Injector Clinic at (561) 427-0082 before ordering.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 2150-64-11-15-8
- Part Number: ISC-2150H-8
- Injector Flow Rate: 2150cc/min
- Injector Height: 64mm
- Engine Configuration: 8 Cylinder
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 15mm
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 psi (3 Bar)
- Test Fluid: CF-16B Calibration Fluid
- Fuel Temperature During Testing: 90 degrees F
- Included: Eight matched injectors, Data Match Sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Complete matched set of eight 2150cc high performance fuel injectors
- 64mm injector body configuration
- Dynamic flow and latency matching using Fuel Injector Clinic Data Match Technology
- Excellent short pulse width control despite extremely high flow capacity
- Outstanding idle quality and part throttle drivability for large injector applications
- Each injector individually serial numbered with comprehensive Data Match Sheet included
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Includes solder-in pigtails for custom installations
- Supplied with all required O-rings for the specified injector configuration
- Protected by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects
Important Fuel Compatibility Information
The internal construction of this 2150cc injector includes a seal that may swell when exposed to MTBE oxygenated fuels, including VP Q16 and VP Import. Seal swelling can significantly reduce injector flow and make the injector unsuitable for use with these fuels. When using alcohol-based fuels such as E85, follow Fuel Injector Clinic's recommended maintenance procedures to minimize the possibility of corrosion during extended storage.
Fitment
Custom eight cylinder fuel injector applications requiring:
- 2150cc injectors
- 64mm injector height
- 11mm upper O-ring
- 15mm lower O-ring
Designed for custom fuel systems utilizing aftermarket fuel rails, intake manifolds, or standalone engine management systems. Always verify injector height and O-ring dimensions before ordering. Contact Fuel Injector Clinic if you need assistance selecting the proper injector configuration.
FAQs
Can these injectors be used with VP Q16 or VP Import fuel?
No. These injectors are not recommended for use with MTBE oxygenated fuels such as VP Q16 or VP Import because internal seal swelling can reduce injector flow.
Why do these 2150cc injectors still offer good drivability?
Fuel Injector Clinic's Data Match Technology dynamically matches each injector for flow and latency, improving idle quality, part throttle operation, and ECU calibration even with extremely large injectors.
Why Buy from Beefcake Racing?
Beefcake Racing proudly offers genuine Fuel Injector Clinic products backed by knowledgeable technical support. Whether you're building a street car, drag car, road race vehicle, or dedicated competition machine, we'll help you choose the correct injector package for your custom fuel system.
If you have questions before placing your order, contact us at sales@beefcakeracing.com or call 1-855-827-7223. We're committed to helping you build a dependable, high-performance fuel system.
