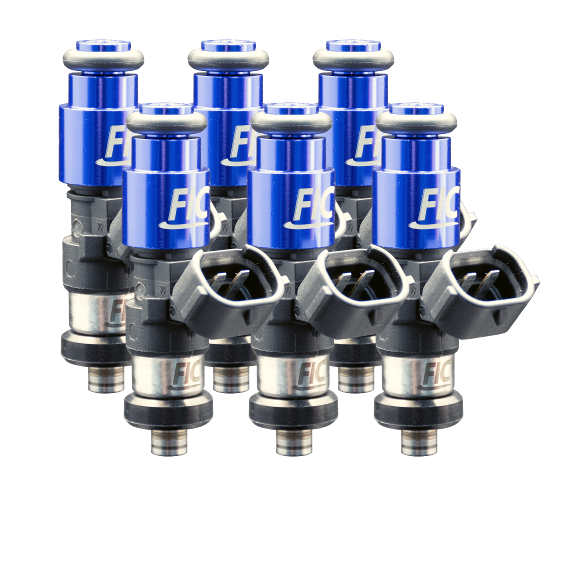

Fuel Injector Clinic Six Cylinder 2150cc Custom Injector Set - 53mm Height - 14mm Top O-Ring Diameter - 16mm Bottom O-Ring Diameter (2150-53-14-16-6)
Designed for extreme horsepower applications, the Fuel Injector Clinic 2150cc Custom Injector Set provides the fuel volume required for serious six-cylinder engine builds without sacrificing drivability. Utilizing advanced injector technology, these high-flow injectors offer exceptional low pulse width control, helping maintain smooth idle characteristics and crisp part-throttle response despite their impressive capacity. Every custom injector set is built to your specified dimensions and includes solder-in pigtails for custom installations.
Each injector is individually flow matched using Fuel Injector Clinic's proprietary Data Match Technology to deliver outstanding cylinder-to-cylinder consistency. Every injector is individually serial numbered and accompanied by a comprehensive Data Match Sheet containing flow and latency values for more precise ECU calibration. Every injector is flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees F and is backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 2150-53-14-16-6
- Part Number: ISC-2150H-6
- Injector Flow Rate: 2150cc/min
- Injector Height: 53mm
- Top O-Ring Diameter: 14mm
- Bottom O-Ring Diameter: 16mm
- Engine Configuration: 6 Cylinder
- Impedance: High Impedance
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees F
- Includes: Six matched injectors, solder-in pigtails, Data Match Sheet, required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Custom matched 2150cc injector set for six-cylinder engines
- 53mm injector height with 14mm top and 16mm bottom O-ring configuration
- Includes solder-in pigtails for custom installations
- Fuel Injector Clinic proprietary Data Match Technology
- Each injector individually serial numbered and dynamically flow matched
- Detailed Data Match Sheet with flow and latency values included
- Excellent short pulse width control for smooth idle and part-throttle performance
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid
- Includes all required O-rings for the specified injector configuration
- Backed by Fuel Injector Clinic's Lifetime Warranty
Important Fuel Compatibility Information
CAUTION: The internal construction of this 2150cc injector contains a seal that has been found to swell when exposed to MTBE found in oxygenated race fuels such as VP Import and Q16. Seal swelling can significantly reduce injector flow, making these injectors unsuitable for use with MTBE oxygenated fuels.
When using alcohol-based fuels such as E85, Fuel Injector Clinic recommends following proper injector maintenance procedures. Extended storage while exposed to alcohol-based fuels may increase the potential for corrosion if proper care guidelines are not followed.
Fitment
Custom six-cylinder applications requiring:
- 53mm injector height
- 14mm top O-ring diameter
- 16mm bottom O-ring diameter
FAQs
Why is Data Match Technology important?
Fuel Injector Clinic individually tests and dynamically matches every injector to provide exceptional consistency between cylinders. Each set includes detailed flow and latency data to simplify ECU calibration.
Can these injectors be used with E85?
Yes. These injectors are compatible with E85 and other alcohol-based fuels, but Fuel Injector Clinic recommends following proper maintenance procedures during long-term storage.
Can I use VP Import or Q16 race fuel?
No. Fuel Injector Clinic specifically advises against using MTBE oxygenated fuels such as VP Import and Q16 because they can cause internal seal swelling and significantly reduce injector flow.
Why Buy From Beefcake Racing?
Beefcake Racing proudly supplies genuine Fuel Injector Clinic fuel system components backed by experienced technical support. Whether you're building a dedicated race car or a high horsepower street machine, our team can help you select the correct injector configuration for your engine and fuel system.
If you have questions about injector sizing, compatibility, or your custom application, contact our knowledgeable team before placing your order.
