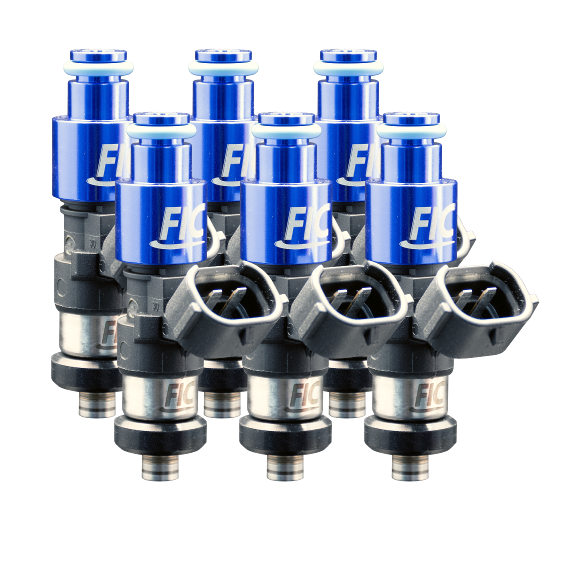

Fuel Injector Clinic Six Cylinder 2150cc Custom Injector Set - 53mm Height - 11mm Top O-Ring Diameter - 16mm Bottom O-Ring Diameter (2150-53-11-16-6)
Built for extreme horsepower applications, the Fuel Injector Clinic 2150cc Custom Injector Set delivers the massive fuel capacity serious performance enthusiasts demand while maintaining outstanding idle quality and drivability. Utilizing advanced injector technology and exceptional short pulse width control, these injectors offer smoother low speed operation than many injectors in this flow range. Each custom six-cylinder injector set includes solder-in pigtails and is configured to your specified dimensions for a proper installation.
Every injector is dynamically flow matched using Fuel Injector Clinic's exclusive Data Match Technology, ensuring exceptional cylinder-to-cylinder consistency for more accurate fueling and easier ECU calibration. Each injector is individually serial numbered and supplied with a detailed Data Match Sheet containing flow and latency information. Every set is flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees F and is backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 2150-53-11-16-6
- Part Number: ISC-2150H-6
- Injector Flow Rate: 2150cc/min
- Injector Height: 53mm
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 16mm
- Engine Configuration: 6 Cylinder
- Impedance: High Impedance
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees F
- Includes: Six matched injectors, solder-in pigtails, Data Match Sheet, required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Custom matched 2150cc injector set for six-cylinder engines
- 53mm injector height with 11mm top and 16mm bottom O-ring configuration
- Includes solder-in pigtails for custom applications
- Fuel Injector Clinic proprietary Data Match Technology
- Individual serial numbers assigned to every injector
- Detailed Data Match Sheet with individual flow and latency values
- Outstanding short pulse width control for improved idle and part throttle operation
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid
- Supplied with the required O-rings for the specified configuration
- Protected by Fuel Injector Clinic's Lifetime Warranty
Important Fuel Compatibility Information
CAUTION: The internal construction of this 2150cc injector contains a seal that has been found to swell when exposed to MTBE found in oxygenated race fuels such as VP Import and Q16. This swelling can significantly reduce injector flow, making these injectors unsuitable for use with MTBE oxygenated fuels.
When using alcohol-based fuels such as E85, Fuel Injector Clinic recommends following proper injector care procedures. Long-term storage while exposed to alcohol fuels may increase the potential for corrosion if maintenance recommendations are not followed.
Fitment
Custom six-cylinder applications requiring:
- 53mm injector height
- 11mm top O-ring diameter
- 16mm bottom O-ring diameter
FAQs
Why does each injector include a Data Match Sheet?
Every injector is individually tested and flow matched, allowing the included Data Match Sheet to provide precise flow and latency information that helps simplify ECU calibration and improve tuning accuracy.
Are these injectors compatible with E85?
Yes. These injectors can be used with E85 and other alcohol-based fuels, but Fuel Injector Clinic recommends following proper maintenance procedures if the vehicle will be stored for extended periods.
Can these injectors be used with VP Import or Q16 race fuel?
No. Due to the presence of MTBE in these oxygenated fuels, Fuel Injector Clinic does not recommend using this 2150cc injector with VP Import, Q16, or similar MTBE oxygenated fuels.
Why Buy From Beefcake Racing?
Beefcake Racing offers genuine Fuel Injector Clinic products backed by experienced technical support. Whether you're building a street car, drag car, or dedicated race vehicle, our team can help you choose the proper injector configuration for your horsepower goals and fuel system.
If you have questions about injector sizing, compatibility, or your custom combination, we're ready to help.
