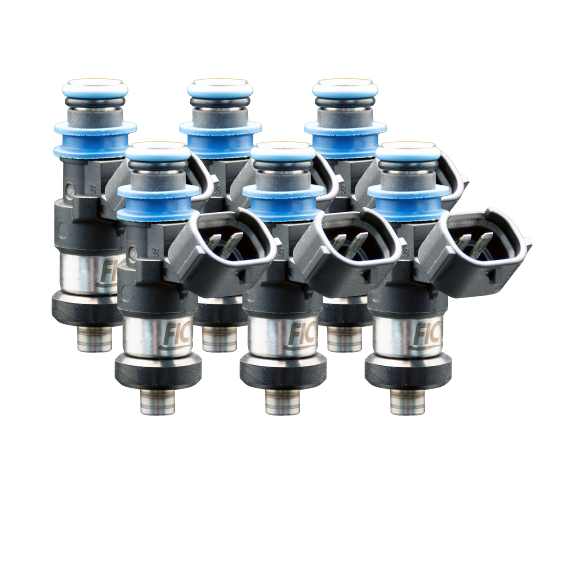

Fuel Injector Clinic Six Cylinder 2150cc SHORT Custom Injector Set - 38mm Height - 11mm Top O-Ring Diameter - 16mm Bottom O-Ring Diameter (2150-38-11-16-6)
The Fuel Injector Clinic 2150cc SHORT Custom Injector Set is built for serious six-cylinder performance applications that require exceptional fuel delivery in a compact package. Featuring a 38mm SHORT injector body, this set is ideal for custom intake manifolds and installations where space is at a premium. Despite its enormous flow capacity, these injectors offer outstanding low pulse width control, providing smoother idle quality and improved part-throttle drivability than many injectors in this performance category. Every custom injector set includes solder-in pigtails for custom installations.
Each injector is individually tested and dynamically flow matched using Fuel Injector Clinic's proprietary Data Match Technology to provide exceptional cylinder-to-cylinder consistency. Every injector receives an individual serial number and includes a comprehensive Data Match Sheet with flow and latency values for accurate ECU calibration. Every injector is flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees F and is backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 2150-38-11-16-6
- Part Number: ISC-2150H-6
- Injector Flow Rate: 2150cc/min
- Injector Height: 38mm (SHORT)
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 16mm
- Engine Configuration: 6 Cylinder
- Impedance: High Impedance
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees F
- Includes: Six matched injectors, solder-in pigtails, Data Match Sheet, required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Custom matched 2150cc SHORT injector set for six-cylinder engines
- Compact 38mm injector body for limited-clearance applications
- 11mm top and 16mm bottom O-ring configuration
- Includes solder-in pigtails for custom wiring installations
- Fuel Injector Clinic proprietary Data Match Technology
- Each injector individually serial numbered and dynamically flow matched
- Detailed Data Match Sheet with flow and latency values included
- Outstanding short pulse width control for excellent idle quality and drivability
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid
- Includes all required O-rings for the specified injector configuration
- Protected by Fuel Injector Clinic's Lifetime Warranty
Important Fuel Compatibility Information
CAUTION: The internal construction of this 2150cc injector contains a seal that has been found to swell when exposed to MTBE found in oxygenated race fuels such as VP Import and Q16. This swelling can significantly reduce injector flow, making these injectors unsuitable for use with MTBE oxygenated fuels.
When using alcohol-based fuels such as E85, Fuel Injector Clinic recommends following proper injector maintenance procedures. Extended storage while exposed to alcohol-based fuels may increase the potential for corrosion if recommended care guidelines are not followed.
Fitment
Custom six-cylinder applications requiring:
- 38mm SHORT injector height
- 11mm top O-ring diameter
- 16mm bottom O-ring diameter
FAQs
What are the benefits of the 38mm SHORT injector body?
The compact 38mm design is ideal for engine combinations with limited injector clearance while delivering the same 2150cc flow capability, excellent drivability, and precise fuel control.
Can these injectors be used with E85?
Yes. These injectors are compatible with E85 and other alcohol-based fuels, but Fuel Injector Clinic recommends proper maintenance whenever the vehicle will be stored for extended periods.
Can I use VP Import or Q16 race fuel with these injectors?
No. Fuel Injector Clinic specifically advises against using MTBE oxygenated fuels such as VP Import and Q16 because they can cause internal seal swelling and significantly reduce injector flow.
Why Buy From Beefcake Racing?
Beefcake Racing proudly offers genuine Fuel Injector Clinic fuel system components backed by experienced technical support. Whether you're building a high horsepower street car or an all-out competition vehicle, our knowledgeable team can help you choose the proper injector configuration for your engine and fuel system.
If you have questions about injector sizing, compatibility, or your custom application, contact our team before placing your order.
