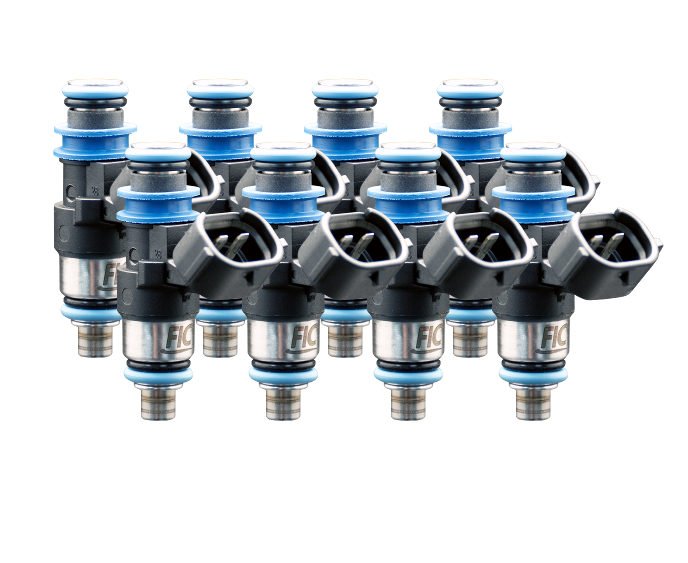

Fuel Injector Clinic Eight Cylinder 2150cc SHORT Custom Injector Set - 38mm Height - 11mm Top O-Ring Diameter - 11mm Bottom O-Ring Diameter (2150-38-11-11-8)
Fuel Injector Clinic's 2150cc SHORT Custom Injector Set is engineered for extreme horsepower eight cylinder applications that require maximum fuel delivery in a compact 38mm injector package. Featuring an 11mm upper O-ring and 11mm lower O-ring configuration, this injector set is ideal for turbocharged, supercharged, and naturally aspirated racing engines where limited clearance demands a short-body injector without sacrificing drivability or tuning precision.
Fuel Injector Clinic's proprietary Data Match Technology dynamically matches every injector for both flow and latency, providing exceptional short pulse width control despite the injector's massive 2150cc flow capacity. Each injector is individually serial numbered and includes a comprehensive Data Match Sheet with detailed flow and latency values for precise ECU calibration. Every custom injector set includes solder-in pigtails and all required O-rings for the specified injector configuration. If you need assistance selecting the correct injector dimensions, contact Fuel Injector Clinic at (561) 427-0082 before placing your order.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 2150-38-11-11-8
- Part Number: ISC-2150H-8
- Injector Flow Rate: 2150cc/min
- Injector Height: 38mm SHORT
- Engine Configuration: 8 Cylinder
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 11mm
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 psi (3 Bar)
- Calibration Fluid: CF-16B
- Fuel Temperature During Testing: 90 degrees F
- Included: Eight matched injectors, Data Match Sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Matched set of eight 2150cc SHORT high performance fuel injectors
- Compact 38mm short-body injector design
- Fuel Injector Clinic Data Match Technology for dynamic flow matching
- Outstanding short pulse width control for excellent idle quality
- Exceptional drivability despite ultra-high flow capacity
- Each injector individually serial numbered
- Detailed Data Match Sheet included with every set
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Solder-in pigtails included
- Supplied with all required O-rings for the specified configuration
- Protected by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects
Important Fuel Compatibility Information
The internal construction of this 2150cc injector utilizes a seal that may swell when exposed to MTBE oxygenated fuels such as VP Q16 or VP Import. This condition can significantly reduce injector flow, making these injectors unsuitable for use with MTBE oxygenated fuels. When operating with alcohol-based fuels, including E85, Fuel Injector Clinic recommends following proper storage and maintenance procedures to minimize corrosion during extended periods of inactivity.
Fitment
Custom eight cylinder fuel injector applications requiring:
- 2150cc injectors
- 38mm SHORT injector height
- 11mm upper O-ring
- 11mm lower O-ring
Designed for custom fuel systems utilizing aftermarket fuel rails, intake manifolds, or standalone engine management systems where a compact injector package is required. Always verify injector height and O-ring dimensions before ordering.
FAQs
What is the advantage of the 38mm SHORT injector body?
The compact 38mm design provides additional clearance for aftermarket intake manifolds and fuel rail combinations while maintaining the same exceptional 2150cc flow capacity and drivability.
Can these injectors be used with VP Q16 or VP Import fuel?
No. Fuel Injector Clinic does not recommend these injectors for use with MTBE oxygenated fuels because the internal seal can swell and reduce injector performance.
