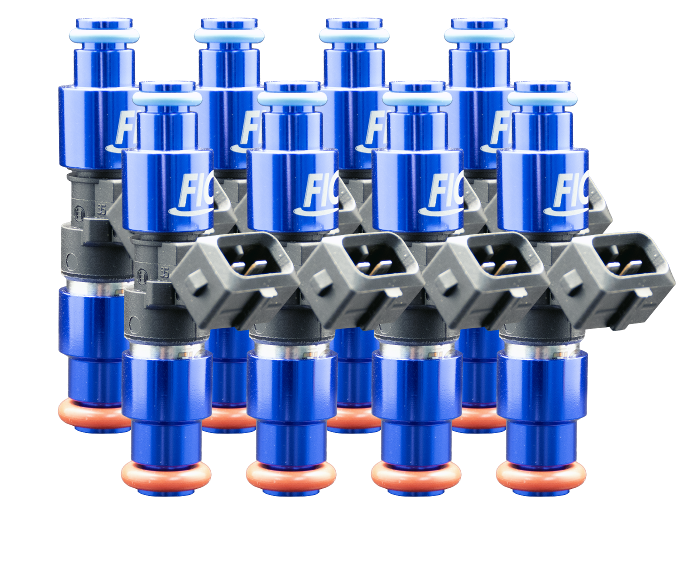

Fuel Injector Clinic Eight Cylinder 1650cc Custom Injector Set - 64mm Height - 11mm Top O-Ring Diameter - 15mm Bottom O-Ring Diameter (1650-64-11-15-8)
Fuel Injector Clinic's 1650cc Custom Injector Set is built for serious high horsepower eight cylinder engines that demand exceptional fuel delivery, precise injector matching, and outstanding drivability. Featuring a full-height 64mm injector body with an 11mm upper O-ring and 15mm lower O-ring configuration, this injector set is an excellent solution for custom EFI systems, turbocharged applications, supercharged combinations, and dedicated race builds.
Every injector is individually flow tested, serial numbered, and precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each set includes a comprehensive Data Match Sheet containing individual flow and latency values, allowing tuners to maximize ECU calibration accuracy. Solder-in pigtails are also included for custom installations. If you have questions about selecting the correct injector configuration, Fuel Injector Clinic's technical support team is available at (561) 427-0082.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 1650-64-11-15-8
- Part Number: ISC-1650H-8
- Injector Flow Rate: 1650cc/min
- Injector Height: 64mm
- Engine Configuration: 8 Cylinder
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 15mm
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 psi (3 Bar)
- Test Fluid: CF-16B Calibration Fluid
- Fuel Temperature During Testing: 90 degrees F
- Included: Eight matched injectors, Data Match Sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Complete matched set of eight 1650cc high performance fuel injectors
- Matched using Fuel Injector Clinic's proprietary Data Match Technology
- Individual injector serial numbers for complete traceability
- Comprehensive Data Match Sheet with flow and latency values included
- 64mm injector body for compatible fuel system applications
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Superior short pulse width control for exceptional idle quality and drivability
- State of the art matching simplifies tuning and ECU calibration
- Includes solder-in pigtails for custom wiring installations
- Supplied with the required O-rings for the specified injector dimensions
- Protected by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects
Fitment
Custom eight cylinder fuel injector applications requiring:
- 1650cc injectors
- 64mm injector height
- 11mm upper O-ring
- 15mm lower O-ring
Designed for custom fuel systems utilizing aftermarket fuel rails, intake manifolds, or standalone engine management systems. Please verify injector dimensions before ordering. If you need assistance selecting the correct injector configuration, contact Fuel Injector Clinic at (561) 427-0082.
FAQs
Why does Data Match Technology benefit engine tuning?
Fuel Injector Clinic's Data Match Technology provides detailed flow and latency matching, allowing tuners to achieve more consistent fueling, improved idle quality, and greater ECU calibration accuracy.
What comes with this injector set?
Each kit includes eight individually matched injectors, a detailed Data Match Sheet, solder-in pigtails, and the required O-rings for this injector configuration.
