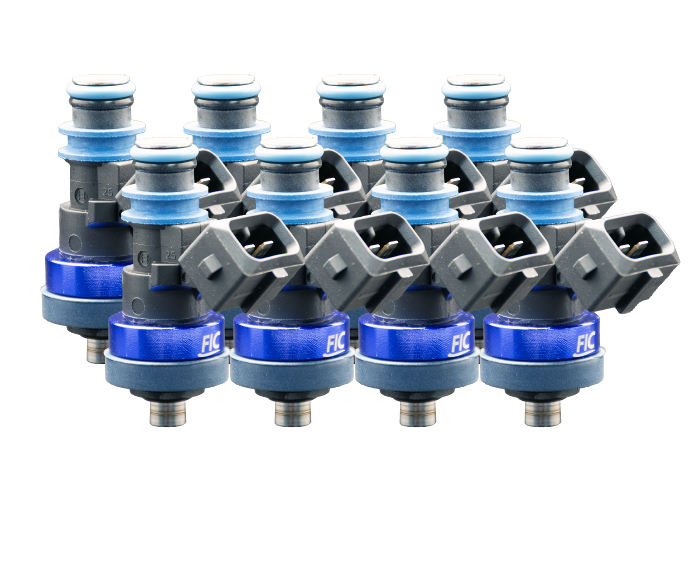

Fuel Injector Clinic Eight Cylinder 1650cc SHORT Custom Injector Set - 38mm Height - 11mm Top O-Ring Diameter - 21mm Bottom O-Ring Diameter (1650-38-11-21-8)
Fuel Injector Clinic's 1650cc SHORT Custom Injector Set is built for high horsepower eight cylinder applications that require a compact 38mm injector body without sacrificing fuel delivery, drivability, or tuning precision. Featuring an 11mm upper O-ring and 21mm lower O-ring configuration, this injector set is ideal for custom EFI systems, turbocharged combinations, supercharged engines, engine swaps, and performance applications with limited injector clearance.
Every injector is individually flow tested, serial numbered, and precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector set includes a comprehensive Data Match Sheet containing individual flow and latency values, giving tuners the information needed for accurate ECU calibration. Solder-in pigtails are included for custom wiring installations, and Fuel Injector Clinic's technical support team is available at (561) 427-0082 to help ensure you receive the proper injector configuration.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 1650-38-11-21-8
- Part Number: ISC-1650H-8
- Injector Flow Rate: 1650cc/min
- Injector Height: 38mm SHORT
- Engine Configuration: 8 Cylinder
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 21mm
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 psi (3 Bar)
- Test Fluid: CF-16B Calibration Fluid
- Fuel Temperature During Testing: 90 degrees F
- Included: Eight matched injectors, Data Match Sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Complete matched set of eight 1650cc high performance fuel injectors
- Compact 38mm SHORT injector body for limited-clearance applications
- Precision matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector is individually serial numbered for complete quality assurance and traceability
- Comprehensive Data Match Sheet with flow and latency information included
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Superior short pulse width control for exceptional idle quality and smooth drivability
- State of the art matching simplifies ECU tuning and improves fuel consistency
- Includes solder-in pigtails for custom wiring installations
- Supplied with the required O-rings for the specified injector configuration
- Backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects
Fitment
Custom eight cylinder fuel injector applications requiring:
- 1650cc injectors
- 38mm SHORT injector height
- 11mm upper O-ring
- 21mm lower O-ring
Designed for custom fuel systems utilizing aftermarket fuel rails, intake manifolds, or standalone engine management systems where a compact 38mm injector is required. Always verify injector height and O-ring dimensions before ordering. If you need assistance selecting the proper injector configuration, contact Fuel Injector Clinic at (561) 427-0082.
FAQs
What are the benefits of Fuel Injector Clinic's 38mm SHORT injectors?
The compact 38mm injector body fits applications with limited clearance while delivering exceptional fuel flow, excellent idle quality, superior drivability, and precise ECU tuning through Data Match Technology.
What is included with this injector set?
Each package includes eight individually matched injectors, a comprehensive Data Match Sheet, solder-in pigtails, and the required O-rings for this injector configuration.
Why Buy from Beefcake Racing?
Beefcake Racing offers experienced technical support and one of the largest selections of Fuel Injector Clinic products available. Whether you're building a high horsepower street vehicle, drag car, or custom race application, we'll help you choose the correct injector configuration for your fuel system.
If you have questions before placing your order, contact us at sales@beefcakeracing.com or call 1-855-827-7223. We're committed to helping you build a reliable, high-performance fuel system.
