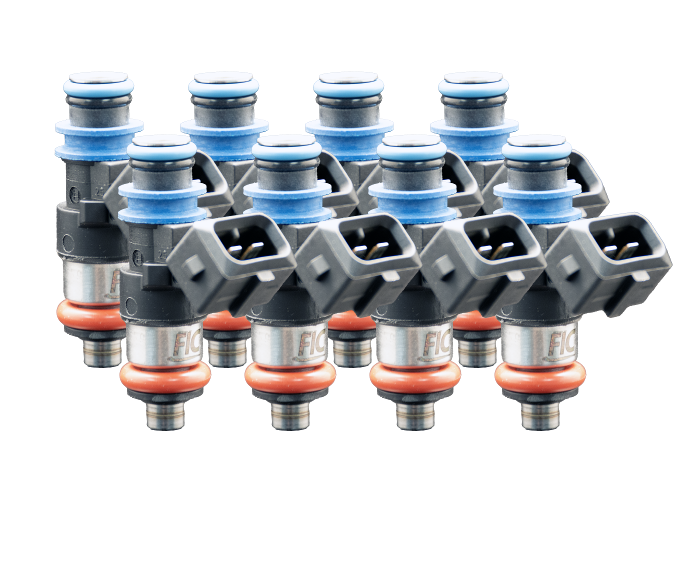

Fuel Injector Clinic Eight Cylinder 1650cc SHORT Custom Injector Set - 38mm Height - 11mm Top O-Ring Diameter - 15mm Bottom O-Ring Diameter (1650-38-11-15-8)
Fuel Injector Clinic's 1650cc SHORT Custom Injector Set is designed for high horsepower eight cylinder applications requiring a compact 38mm injector body while maintaining exceptional fuel delivery and drivability. Featuring an 11mm upper O-ring and 15mm lower O-ring configuration, this injector set is an outstanding choice for custom EFI systems, turbocharged and supercharged combinations, engine swaps, and other high-performance builds with limited injector clearance.
Every injector is individually flow tested, serial numbered, and precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector set includes a comprehensive Data Match Sheet containing individual flow and latency values, allowing tuners to achieve highly accurate ECU calibration. Solder-in pigtails are included for custom installations, and Fuel Injector Clinic's technical support team is available at (561) 427-0082 if you need assistance selecting the proper injector configuration.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 1650-38-11-15-8
- Part Number: ISC-1650H-8
- Injector Flow Rate: 1650cc/min
- Injector Height: 38mm SHORT
- Engine Configuration: 8 Cylinder
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 15mm
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 psi (3 Bar)
- Test Fluid: CF-16B Calibration Fluid
- Fuel Temperature During Testing: 90 degrees F
- Included: Eight matched injectors, Data Match Sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Complete matched set of eight 1650cc high performance fuel injectors
- Compact 38mm SHORT injector body for limited-clearance applications
- Precision matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector is individually serial numbered for complete quality assurance and traceability
- Comprehensive Data Match Sheet with flow and latency information included
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Superior short pulse width control for exceptional idle quality and smooth drivability
- State of the art matching simplifies ECU tuning and improves fuel consistency
- Includes solder-in pigtails for custom wiring installations
- Supplied with the required O-rings for the specified injector configuration
- Backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects
Fitment
Custom eight cylinder fuel injector applications requiring:
- 1650cc injectors
- 38mm SHORT injector height
- 11mm upper O-ring
- 15mm lower O-ring
Designed for custom fuel systems utilizing aftermarket fuel rails, intake manifolds, or standalone engine management systems where a compact 38mm injector is required. Always verify injector height and O-ring dimensions before ordering. If you need assistance selecting the proper injector configuration, contact Fuel Injector Clinic at (561) 427-0082.
FAQs
Why choose the 38mm SHORT injector configuration?
The compact 38mm injector body is designed for applications with limited clearance while still delivering the high flow capability, precise fuel control, and excellent drivability expected from Fuel Injector Clinic injectors.
What is included with this injector package?
Each package includes eight individually matched injectors, a comprehensive Data Match Sheet, solder-in pigtails, and the required O-rings for this injector configuration.
