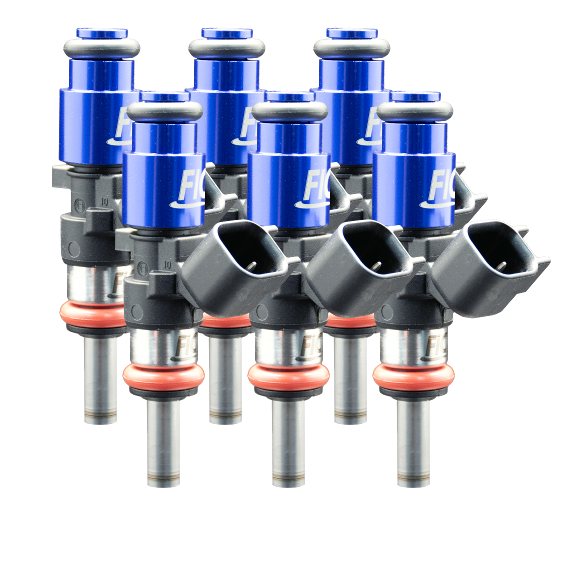

Fuel Injector Clinic Six Cylinder 1440cc Custom Injector Set - 53mm Height - 14mm Top O-Ring Diameter - 15mm Bottom O-Ring Diameter (1440-53-14-15-6)
The Fuel Injector Clinic 1440cc Custom Injector Set is designed for serious six-cylinder street and race applications that require exceptional fuel delivery without compromising drivability. Positioned perfectly between FIC's 1200cc and 1650cc injectors, these high impedance injectors provide the additional fuel capacity needed for demanding horsepower goals while maintaining smooth idle quality, responsive throttle control, and excellent tuning characteristics on both gasoline and E85. Every custom injector set includes solder-in pigtails for custom installations.
Built with a premium stainless alloy valve, the 1440cc injector is compatible with virtually every popular performance fuel, including pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Each injector is individually serial numbered and dynamically matched using Fuel Injector Clinic's proprietary Data Match Technology. Every set includes a comprehensive Data Match Sheet with flow and latency values, is flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees F, and is backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 1440-53-14-15-6
- Part Number: ISC-1440H-6
- Injector Flow Rate: 1440cc/min
- Injector Height: 53mm
- Top O-Ring Diameter: 14mm
- Bottom O-Ring Diameter: 15mm
- Engine Configuration: 6 Cylinder
- Injector Type: High Impedance
- Valve Material: Stainless Alloy
- Compatible Fuels: Pump Gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees F
- Includes: Six matched injectors, solder-in pigtails, Data Match Sheet, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Custom 1440cc injector set for six-cylinder engines
- 53mm injector height with 14mm top and 15mm bottom O-ring configuration
- High impedance injector design
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Outstanding idle quality and excellent short pulse width control
- Supports demanding high horsepower gasoline and E85 combinations
- Stainless alloy valve construction for superior durability and fuel compatibility
- Precisely matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector individually serial numbered
- Detailed Data Match Sheet included for accurate ECU calibration
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid
- Includes solder-in pigtails for custom installations
- Protected by Fuel Injector Clinic's Lifetime Warranty
Fitment
Custom six-cylinder applications requiring:
- 53mm injector height
- 14mm top O-Ring diameter
- 15mm bottom O-Ring diameter
FAQs
Why choose the Fuel Injector Clinic 1440cc injector?
The 1440cc injector fills the gap between FIC's 1200cc and 1650cc injectors, providing excellent idle quality, precise fuel control, and the capacity needed for serious gasoline and E85 performance builds.
Which fuels can these injectors safely run?
These injectors are compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels thanks to their durable stainless alloy valve construction.
What is included with the injector set?
Each kit includes six individually matched injectors, solder-in pigtails, all required O-rings, and a detailed Data Match Sheet containing flow and latency information for simplified ECU calibration.
