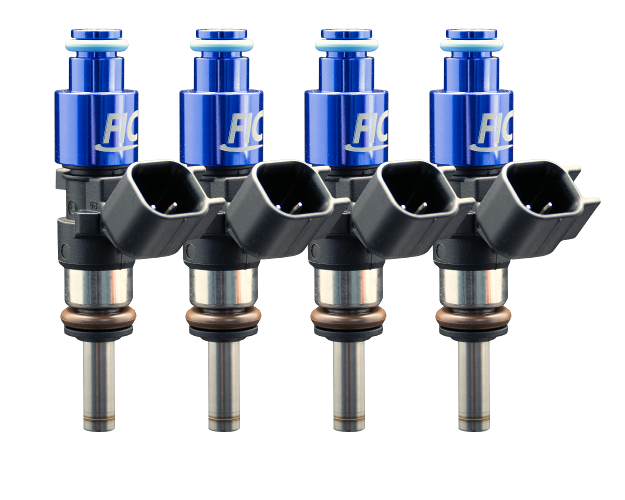

Fuel Injector Clinic Four Cylinder 1440cc Custom Injector Set - 53mm Height - 11mm Top O-Ring Diameter - 14mm Bottom O-Ring Diameter (ISC-1440H-4)
The Fuel Injector Clinic Four Cylinder 1440cc Custom Injector Set is built for custom four-cylinder fuel systems requiring a 53mm injector height, 11mm top O-ring diameter, and 14mm bottom O-ring diameter. Delivering 1440cc/min of fuel flow, these high impedance injectors fit between Fuel Injector Clinic's 1200cc and 1650cc offerings, providing the fuel capacity needed for serious horsepower while maintaining excellent idle performance and street-friendly drivability.
Stainless alloy valve construction allows these injectors to be used with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Each set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology, individually serial numbered, and supplied with a Data Match Sheet containing detailed flow-matching and latency information. Custom injector sets also include solder-in pigtails for integration into the vehicle's wiring system.
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Part Number: ISC-1440H-4
- Product Code: 1440-53-11-14-4
- Engine Configuration: Four cylinder
- Injector Quantity: Set of four
- Flow Rate: 1440cc/min
- Injector Type: High impedance
- Injector Height: 53mm
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 14mm
- Valve Construction: Stainless alloy
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Flow-Test Pressure: 43.5 PSI, or 3 Bar
- Flow-Test Fuel Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Matching Process: Fuel Injector Clinic Data Match Technology
- Included: Four matched fuel injectors, solder-in pigtails, required O-rings, and Data Match Sheet
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- 1440cc/min flow rate provides a performance option between Fuel Injector Clinic's 1200cc and 1650cc injectors.
- High impedance injector design supports excellent idle quality and drivability in properly tuned street-driven vehicles.
- Provides the fuel capacity required for higher-horsepower four-cylinder applications running gasoline or E85.
- Stainless alloy valve construction supports compatibility with a broad range of gasoline, ethanol, and oxygenated race fuels.
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels.
- Precisely matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered for identification and documentation.
- Includes a Data Match Sheet with detailed flow-matching and latency information.
- Flow tested and rated at 43.5 PSI, or 3 Bar, at a fuel temperature of 90 degrees F.
- Tested using CF-16B calibration fluid for consistent injector characterization.
- Superior short pulse width control helps simplify tuning and promote excellent drivability.
- Includes solder-in pigtails for custom wiring installations.
- Includes the O-rings required for the specified 53mm, 11mm, and 14mm configuration.
- Covered by Fuel Injector Clinic's lifetime warranty against qualifying manufacturing defects.
Fitment
- Custom four-cylinder engine applications
- Applications requiring a 53mm injector height
- Applications requiring an 11mm top O-ring diameter
- Applications requiring a 14mm bottom O-ring diameter
This is a custom injector set without vehicle-specific fitment. Compatibility is determined by injector height, O-ring dimensions, fuel rail, intake manifold, electrical connection, and the other components used in the fuel system. Verify all measurements before ordering. For aftermarket or unusual fuel-system configurations, contact Beefcake Racing to confirm the correct injector setup for your application.
FAQs
What applications are compatible with the Fuel Injector Clinic ISC-1440H-4 injector set?
This custom set is intended for four-cylinder applications requiring a 53mm injector height, 11mm top O-ring diameter, and 14mm bottom O-ring diameter. Because it is not assigned to a specific vehicle, all dimensions and fuel-system requirements should be verified before ordering.
Are the ISC-1440H-4 injectors compatible with E85 and race fuels?
Yes. Fuel Injector Clinic states that the stainless alloy valve construction is compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels.
Why Buy From Beefcake Racing?
Beefcake Racing supplies proven fuel-system components for high-horsepower street and race builds. Our experienced performance team can help you verify injector dimensions, fuel compatibility, horsepower requirements, and installation needs before ordering.
For product assistance, email sales@beefcakeracing.com or call 1-855-827-7223.
