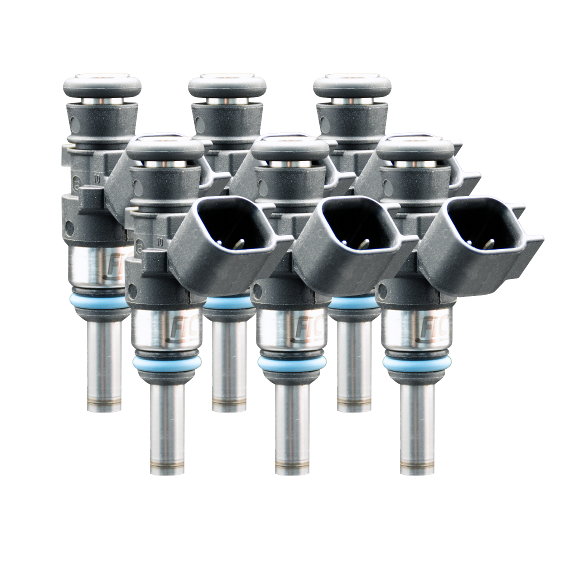

Fuel Injector Clinic Six Cylinder 1440cc SHORT Custom Injector Set - 38mm Height - 14mm Top O-Ring Diameter - 21mm Bottom O-Ring Diameter (1440-38-14-21-6)
The Fuel Injector Clinic Six Cylinder 1440cc SHORT Custom Injector Set is engineered for serious performance applications that require maximum fuel delivery in a compact injector package. Featuring a 38mm SHORT body, these high impedance injectors are ideal for custom installations with limited injector clearance while supplying the fuel volume needed for high horsepower gasoline and E85 combinations. Positioned between FIC's 1200cc and 1650cc injectors, they provide exceptional idle quality, crisp throttle response, and outstanding tuning consistency. Every custom injector set includes solder-in pigtails for custom installations.
Built with a premium stainless alloy valve, the 1440cc SHORT injector is compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Every injector is dynamically matched using Fuel Injector Clinic's proprietary Data Match Technology, individually serial numbered, and supplied with a comprehensive Data Match Sheet containing flow and latency values for accurate ECU calibration. Each injector is flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees F and backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 1440-38-14-21-6
- Part Number: ISC-1440H-6
- Injector Flow Rate: 1440cc/min
- Injector Height: 38mm (SHORT)
- Top O-Ring Diameter: 14mm
- Bottom O-Ring Diameter: 21mm
- Engine Configuration: 6 Cylinder
- Injector Type: High Impedance
- Valve Material: Stainless Alloy
- Compatible Fuels: Pump Gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees F
- Includes: Six matched injectors, solder-in pigtails, Data Match Sheet, and all required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Custom 1440cc SHORT injector set for six-cylinder engines
- Compact 38mm injector body for clearance-sensitive applications
- 14mm top and 21mm bottom O-Ring configuration
- High impedance injector design
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Excellent idle quality and superior short pulse width control
- Supports demanding high horsepower gasoline and E85 combinations
- Premium stainless alloy valve construction
- Matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector individually serial numbered
- Detailed Data Match Sheet included for simplified ECU calibration
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid
- Includes solder-in pigtails for custom installations
- Protected by Fuel Injector Clinic's Lifetime Warranty
Fitment
Custom six-cylinder applications requiring:
- 38mm SHORT injector height
- 14mm top O-Ring diameter
- 21mm bottom O-Ring diameter
FAQs
Why choose the SHORT 38mm injector?
The compact 38mm body is designed for custom intake manifolds and tight engine bay applications while maintaining the outstanding drivability and fuel delivery Fuel Injector Clinic is known for.
Can these injectors be used with E85 and race fuels?
Yes. Their stainless alloy valve construction makes them compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels.
What is included with this injector set?
Each set includes six individually matched injectors, solder-in pigtails, all required O-rings, and a detailed Data Match Sheet containing individual flow and latency information for accurate ECU calibration.
