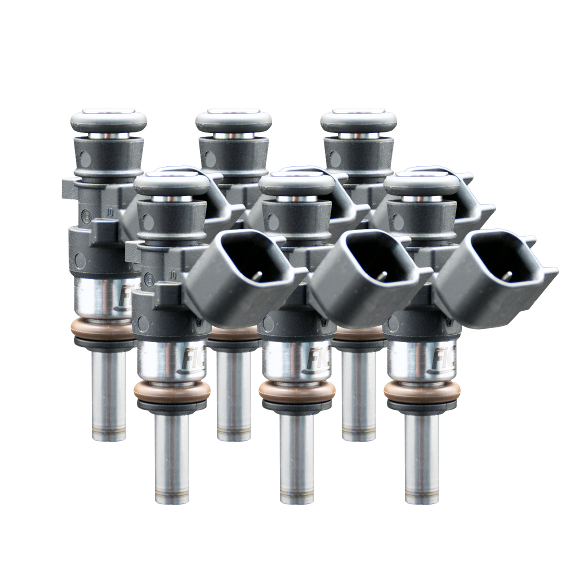

Fuel Injector Clinic Six Cylinder 1440cc SHORT Custom Injector Set - 38mm Height - 14mm Top O-Ring Diameter - 14mm Bottom O-Ring Diameter (1440-38-14-14-6)
The Fuel Injector Clinic Six Cylinder 1440cc SHORT Custom Injector Set delivers exceptional fuel flow for compact, high-performance applications where injector clearance is at a premium. Designed with a 38mm SHORT body, these high impedance injectors fit where standard-length injectors cannot while providing the fuel capacity required for serious gasoline and E85 horsepower builds. Positioned between FIC's proven 1200cc and 1650cc injectors, they deliver outstanding idle quality, smooth throttle response, and excellent tuning characteristics. Every custom injector set includes solder-in pigtails for custom installations.
Featuring a premium stainless alloy valve, the 1440cc SHORT injector is compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Every injector is dynamically matched using Fuel Injector Clinic's proprietary Data Match Technology, individually serial numbered, and supplied with a comprehensive Data Match Sheet containing flow and latency values for simplified ECU calibration. Each injector is flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees F and backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 1440-38-14-14-6
- Part Number: ISC-1440H-6
- Injector Flow Rate: 1440cc/min
- Injector Height: 38mm (SHORT)
- Top O-Ring Diameter: 14mm
- Bottom O-Ring Diameter: 14mm
- Engine Configuration: 6 Cylinder
- Injector Type: High Impedance
- Valve Material: Stainless Alloy
- Compatible Fuels: Pump Gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees F
- Includes: Six matched injectors, solder-in pigtails, Data Match Sheet, and all required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Custom 1440cc SHORT injector set for six-cylinder engines
- Compact 38mm injector body for limited-clearance applications
- 14mm top and 14mm bottom O-Ring configuration
- High impedance injector design
- Compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Excellent idle quality and outstanding short pulse width control
- Supports demanding high horsepower gasoline and E85 combinations
- Premium stainless alloy valve construction
- Matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector individually serial numbered
- Detailed Data Match Sheet included for accurate ECU calibration
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid
- Includes solder-in pigtails for custom installations
- Backed by Fuel Injector Clinic's Lifetime Warranty
Fitment
Custom six-cylinder applications requiring:
- 38mm SHORT injector height
- 14mm top O-Ring diameter
- 14mm bottom O-Ring diameter
FAQs
Why choose the SHORT 38mm injector?
The compact 38mm body is designed for custom intake manifolds and applications with limited injector clearance while maintaining the drivability and fuel delivery Fuel Injector Clinic is known for.
What fuels are supported?
These injectors are compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels thanks to their durable stainless alloy valve construction.
What comes with the injector set?
Each kit includes six individually matched injectors, solder-in pigtails, all required O-rings, and a detailed Data Match Sheet containing injector flow and latency values for simplified ECU calibration.
