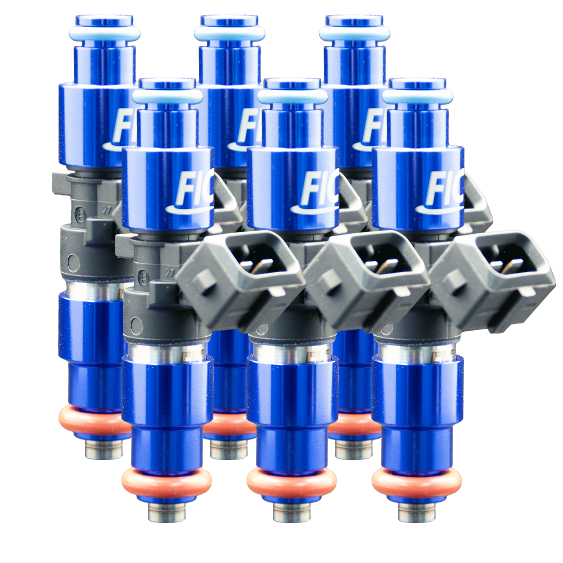

Fuel Injector Clinic Six Cylinder 1200cc Custom Injector Set - 64mm Height - 11mm Top O-Ring - 15mm Bottom O-Ring (1200-64-11-15-6)
The Fuel Injector Clinic 1200cc Custom Injector Set is built for custom six-cylinder performance applications that demand exceptional fuel delivery, precise injector matching, and excellent street manners. Featuring a 64mm injector height, 11mm top O-ring, and 15mm bottom O-ring, this injector set is engineered for custom fuel system combinations where accurate injector dimensions are essential. Every custom injector set includes solder-in pigtails, and Fuel Injector Clinic's technical staff is available to help ensure you receive the correct injector configuration for your application.
Each injector is individually matched using Fuel Injector Clinic's proprietary Data Match Technology, then assigned a unique serial number and supplied with a comprehensive Data Match Sheet containing individual flow and latency values. Every injector is flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit, providing excellent short pulse width control, smooth idle quality, and predictable fuel delivery throughout the RPM range. Every set includes the proper O-rings for the specified configuration and is backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 1200-64-11-15-6
- SKU: ISC-1200H-6
- Injector Flow Rate: 1200cc
- Injector Quantity: Set of 6
- Injector Height: 64mm
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 15mm
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees Fahrenheit
- Data Matching: Proprietary Data Match Technology with individual serial numbers and Data Match Sheet
- Included: Solder-in injector pigtails and required O-rings
- Warranty: Lifetime warranty against manufacturing defects
Features
- 1200cc high-performance fuel injectors for custom six-cylinder applications.
- 64mm injector body designed for compatible factory and aftermarket fuel systems.
- 11mm top O-ring and 15mm bottom O-ring configuration.
- Precisely matched using Fuel Injector Clinic's exclusive Data Match Technology.
- Each injector is individually serial numbered and includes a detailed Data Match Sheet.
- Excellent short pulse width control for superior idle quality and drivability.
- Highly consistent injector matching simplifies ECU calibration and tuning.
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid.
- Includes solder-in injector pigtails for installation.
- Supplied with the proper O-rings for the specified injector dimensions.
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Fitment
Custom six-cylinder applications requiring:
- 64mm injector height
- 11mm top O-ring diameter
- 15mm bottom O-ring diameter
If your vehicle utilizes an aftermarket intake manifold, fuel rail, or custom fuel system, please contact Beefcake Racing before placing your order so we can verify proper injector compatibility.
FAQs
Are injector connectors included?
Yes. Every Fuel Injector Clinic custom injector set includes solder-in injector pigtails for installation.
What does the included Data Match Sheet provide?
The Data Match Sheet contains individual flow and latency information for each serial numbered injector, allowing for more accurate ECU calibration and consistent engine performance.
Will these injectors work with my custom fuel system?
This injector set is designed for applications requiring a 64mm injector with an 11mm top O-ring and 15mm bottom O-ring. Contact Beefcake Racing if you'd like assistance confirming compatibility before ordering.
Why Buy From Beefcake Racing?
Beefcake Racing offers expert support for custom fuel system builds. Our experienced team can help verify injector sizing, dimensions, and compatibility so you receive the correct Fuel Injector Clinic injectors for your project. We're committed to helping you achieve reliable performance from your build.
