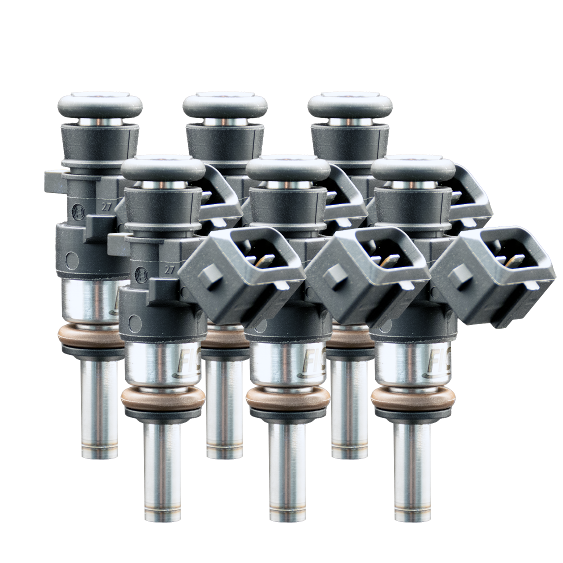

Fuel Injector Clinic Six Cylinder 1200cc SHORT Custom Injector Set - 38mm Height - 14mm Top O-Ring - 14mm Bottom O-Ring (1200-38-14-14-6)
The Fuel Injector Clinic 1200cc SHORT Custom Injector Set is engineered for custom six-cylinder performance applications that require a compact injector package while maintaining exceptional fuel delivery, drivability, and tuning accuracy. Featuring a 38mm SHORT injector height, 14mm top O-ring, and 14mm bottom O-ring, this injector set is an ideal solution for aftermarket intake manifolds, custom fuel rails, and specialized fuel system combinations where space is limited and precise injector dimensions are critical. Every custom injector set includes solder-in pigtails, and Fuel Injector Clinic's knowledgeable technical team is available to help ensure you receive the correct injector configuration for your application.
Each injector is individually matched using Fuel Injector Clinic's proprietary Data Match Technology, assigned its own serial number, and supplied with a detailed Data Match Sheet containing individual flow and latency values. Every injector is flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit, delivering exceptional short pulse width control, smooth idle quality, and highly repeatable fuel delivery throughout the operating range. Every injector set includes the proper O-rings for the specified dimensions and is backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 1200-38-14-14-6
- SKU: ISC-1200H-6
- Injector Flow Rate: 1200cc
- Injector Quantity: Set of 6
- Injector Height: 38mm (SHORT)
- Top O-Ring Diameter: 14mm
- Bottom O-Ring Diameter: 14mm
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees Fahrenheit
- Data Matching: Proprietary Data Match Technology with individual serial numbers and Data Match Sheet
- Included: Solder-in injector pigtails and required O-rings
- Warranty: Lifetime warranty against manufacturing defects
Features
- 1200cc high-performance SHORT fuel injectors for custom six-cylinder applications.
- Compact 38mm injector body designed for installations with limited clearance.
- 14mm top O-ring and 14mm bottom O-ring configuration.
- Precisely matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered and includes a comprehensive Data Match Sheet.
- Excellent short pulse width control for smooth idle quality and exceptional drivability.
- Highly consistent injector matching simplifies ECU calibration and tuning.
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid.
- Includes solder-in injector pigtails for installation.
- Supplied with the proper O-rings for the specified injector dimensions.
- Protected by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Fitment
Custom six-cylinder applications requiring:
- 38mm SHORT injector height
- 14mm top O-ring diameter
- 14mm bottom O-ring diameter
Ideal for aftermarket intake manifolds, custom fuel rails, and other fuel system combinations requiring a compact 38mm injector. Contact Beefcake Racing before ordering if you need assistance confirming compatibility.
FAQs
Why use a 38mm SHORT injector?
The compact 38mm SHORT body is ideal for custom applications where space is limited, making it a popular choice for aftermarket intake manifolds and custom fuel rail installations.
What is included with the Data Match Sheet?
Every injector is individually flow tested and matched, with injector-specific flow and latency values documented on the included Data Match Sheet for accurate ECU calibration and consistent performance.
Are installation pigtails and seals included?
Yes. Every Fuel Injector Clinic custom injector set includes solder-in injector pigtails along with the appropriate O-rings for the specified injector dimensions.
