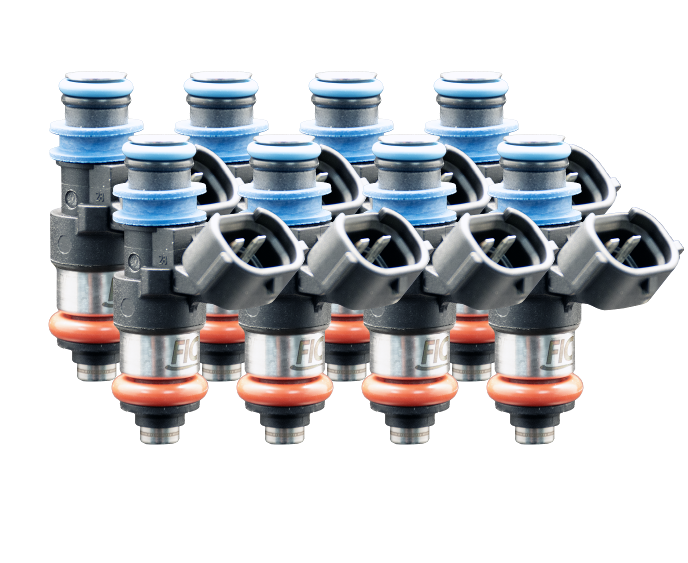

Fuel Injector Clinic Eight Cylinder 1200cc SHORT Custom Injector Set - 38mm Height - 11mm Top O-Ring Diameter - 15mm Bottom O-Ring Diameter (1200-38-11-15-8)
When packaging space is limited but performance cannot be compromised, the Fuel Injector Clinic 1200cc SHORT Custom Injector Set is the ideal solution. Designed with a compact 38mm body, this injector package is perfect for custom high-performance V8 applications that require additional clearance without sacrificing fuel delivery or drivability. Fuel Injector Clinic's proprietary Data Match Technology dynamically matches every injector for exceptional cylinder-to-cylinder consistency, smooth idle quality, crisp throttle response, and simplified ECU calibration. Every custom injector set includes solder-in pigtails, and Fuel Injector Clinic's technical specialists are available at (561) 427-0082 to help configure the right injector package for your build.
Each injector is individually serial numbered and includes a comprehensive Data Match Sheet containing detailed flow and latency information for precise tuning. Every injector is flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit to ensure outstanding consistency and repeatable performance. The injectors are supplied with the proper O-rings for the specified dimensions and are backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Part Number: 1200-38-11-15-8
- Injector Flow Rate: 1200cc
- Engine Configuration: 8 Cylinder
- Injector Height: 38mm (SHORT)
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 15mm
- Flow Test Pressure: 43.5 psi (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees Fahrenheit
- Matching Technology: Fuel Injector Clinic Proprietary Data Match Technology
- Included: Eight injectors, solder-in pigtails, Data Match Sheet, required O-rings
- Warranty: Lifetime warranty against manufacturing defects
Features
- 1200cc SHORT injectors with a compact 38mm body for limited-clearance applications
- Designed for high-performance eight-cylinder engine combinations
- Matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector is individually serial numbered for complete quality traceability
- Includes a detailed Data Match Sheet with flow and latency values
- Outstanding short pulse width control for smooth idle quality and excellent drivability
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Includes solder-in pigtails for custom fuel system installations
- Supplied with the proper O-rings for the specified injector configuration
- Protected by Fuel Injector Clinic's lifetime warranty against manufacturing defects
Fitment
Custom eight-cylinder SHORT fuel injector set.
Compatible with applications requiring:
- 38mm injector height (SHORT)
- 11mm top O-ring diameter
- 15mm bottom O-ring diameter
If your application uses aftermarket fuel rails, intake manifolds, or custom fuel system components, contact Beefcake Racing before ordering to verify compatibility.
FAQs
Why choose a 38mm SHORT injector?
The compact 38mm body is designed for applications where space is limited, allowing proper injector fitment while maintaining the performance, fuel control, and drivability Fuel Injector Clinic is known for.
Does every injector include calibration information?
Yes. Each injector set includes a detailed Data Match Sheet with individual flow and latency values, along with solder-in pigtails and the required O-rings for the specified injector configuration.
Why Buy From Beefcake Racing?
Beefcake Racing offers expert technical guidance to help you choose the proper Fuel Injector Clinic injector package for your horsepower goals, fuel type, and engine combination. Whether you're finishing a street build or a dedicated race car, our knowledgeable team is here to help you get the right components the first time.
