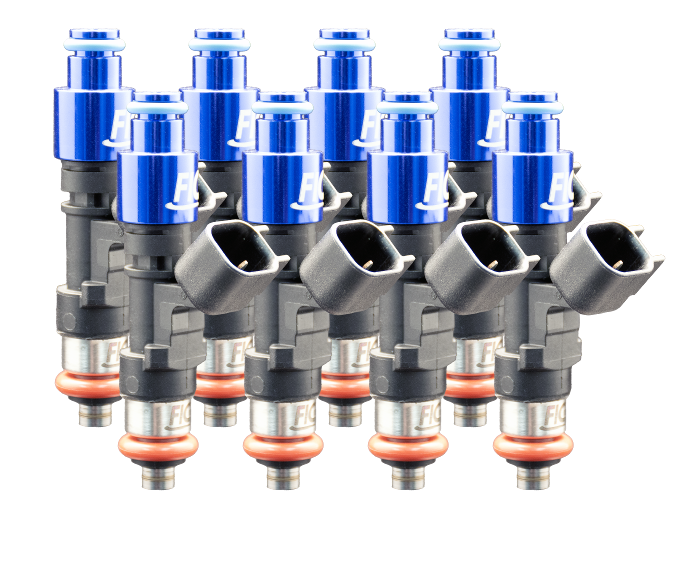

Fuel Injector Clinic Eight Cylinder 1000cc Custom Injector Set - 64mm Height - 11mm Top O-Ring Diameter - 15mm Bottom O-Ring Diameter (1000-64-11-15-8)
Fuel Injector Clinic's 1000cc Custom Injector Set is built for high-performance eight cylinder applications that demand exceptional fuel delivery, precise injector calibration, and outstanding drivability. Featuring a 64mm injector body with an 11mm upper O-ring and 15mm lower O-ring configuration, this injector set is an excellent solution for naturally aspirated, turbocharged, and supercharged engines running upgraded or custom fuel systems.
Every injector is individually flow tested, serial numbered, and matched using Fuel Injector Clinic's proprietary Data Match Technology. Each set includes a detailed Data Match Sheet with individual flow and latency values, providing tuners with the data needed for highly accurate ECU calibration. Custom injector sets include solder-in pigtails for simplified installation, and Fuel Injector Clinic's technical support team is available at (561) 427-0082 to help ensure you receive the correct injector configuration.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 1000-64-11-15-8
- Part Number: ISC-1000H-8
- Injector Flow Rate: 1000cc/min
- Injector Height: 64mm
- Engine Configuration: 8 Cylinder
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 15mm
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Test Pressure: 43.5 psi (3 Bar)
- Test Fluid: CF-16B Calibration Fluid
- Fuel Temperature During Testing: 90 degrees F
- Included: Eight matched injectors, Data Match Sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Complete matched set of eight 1000cc high performance fuel injectors
- 64mm injector body for compatible OEM and custom fuel system applications
- Matched using Fuel Injector Clinic's proprietary Data Match Technology
- Each injector is individually serial numbered for complete quality assurance and traceability
- Comprehensive Data Match Sheet with flow and latency information included
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Superior short pulse width control for smooth idle quality and excellent drivability
- State of the art matching improves fueling consistency and ECU tuning accuracy
- Includes solder-in pigtails for custom wiring installations
- Supplied with the required O-rings for the specified injector configuration
- Backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects
Fitment
Custom eight cylinder fuel injector applications requiring:
- 1000cc injectors
- 64mm injector height
- 11mm upper O-ring
- 15mm lower O-ring
Designed for custom fuel systems utilizing aftermarket fuel rails, intake manifolds, or standalone engine management systems. Always verify injector height and O-ring dimensions before ordering. If you need assistance selecting the correct injector configuration, contact Fuel Injector Clinic at (561) 427-0082.
FAQs
How does Fuel Injector Clinic Data Match Technology improve performance?
Each injector is dynamically matched for flow and latency, helping deliver consistent fuel distribution, easier ECU tuning, smoother idle, and improved drivability across the RPM range.
What is included with this injector set?
Each package includes eight individually matched injectors, a detailed Data Match Sheet, solder-in pigtails, and all required O-rings for the specified injector configuration.
Why Buy from Beefcake Racing?
Beefcake Racing offers knowledgeable technical support and one of the largest selections of Fuel Injector Clinic products available. Whether you're building a street car, drag car, road race machine, or dedicated competition vehicle, we'll help you select the proper injector configuration for your fuel system.
If you have questions before placing your order, contact us at sales@beefcakeracing.com or call 1-855-827-7223. We're committed to helping you build a dependable, high-performance fuel system.
