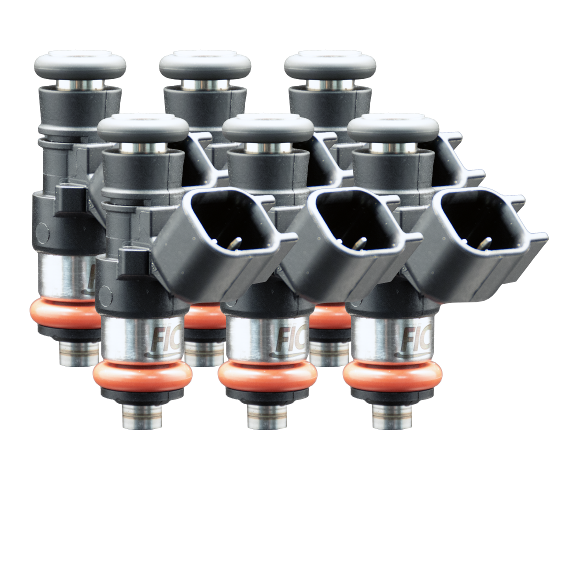

Fuel Injector Clinic Six Cylinder 850cc SHORT Custom Injector Set - 38mm Height - 14mm Top O-Ring Diameter - 16mm Bottom O-Ring Diameter (Product Code: 0850-38-14-16-6)
Upgrade your custom six cylinder fuel system with the Fuel Injector Clinic 850cc SHORT Custom Injector Set. Designed specifically for applications requiring a compact 38mm SHORT injector, this high performance injector package delivers excellent idle quality, crisp throttle response, and consistent fuel delivery for both naturally aspirated and forced induction engine combinations.
Each injector set is dynamically matched using Fuel Injector Clinic's proprietary Data Match Technology, providing exceptional consistency throughout the injector's operating range. Every injector is individually serial numbered and includes a comprehensive Data Match Sheet containing detailed flow and latency information for more accurate ECU calibration. Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid, these injectors feature excellent short pulse width control for smooth street manners without compromising high performance capability. This custom injector set features a 38mm SHORT body with a 14mm upper O-ring and 16mm lower O-ring configuration, includes solder-in pigtails, and is backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 0850-38-14-16-6
- SKU: isc-0850h-6
- Injector Flow Rate: 850cc/min
- Injector Height: 38mm SHORT
- Top O-Ring Diameter: 14mm
- Bottom O-Ring Diameter: 16mm
- Engine Configuration: Six Cylinder
- Flow Matching: Fuel Injector Clinic Data Match Technology
- Flow Rating: Rated at 43.5 PSI (3 Bar)
- Flow Test Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Included: Six matched injectors, Data Match Sheet, solder-in pigtails, and all required O-rings
- Warranty: Lifetime warranty against defects in original manufacture
Features
- Complete set of six 850cc SHORT high performance fuel injectors.
- Compact 38mm short body design for custom fuel system applications.
- Precision matched using Fuel Injector Clinic Data Match Technology.
- Each injector individually serial numbered for quality verification.
- Comprehensive Data Match Sheet included with every injector set.
- Outstanding short pulse width control for smooth idle and excellent drivability.
- State of the art dynamic flow matching improves ECU tuning accuracy.
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid.
- 38mm injector body with 14mm upper and 16mm lower O-ring configuration.
- Includes solder-in pigtails for custom wiring installations.
- Supplied with all required O-rings for installation.
- Protected by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Fitment
Custom fit six cylinder fuel injector set.
Designed for applications requiring:
- 38mm SHORT injector height
- 14mm top O-ring diameter
- 16mm bottom O-ring diameter
Designed for custom fuel systems utilizing this injector height and O-ring configuration. If your application uses aftermarket fuel rails, intake manifolds, or other non-standard fuel system components, verify injector dimensions before ordering. Contact Beefcake Racing if you need assistance confirming compatibility.
FAQs
What is Fuel Injector Clinic Data Match Technology?
Data Match Technology dynamically matches each injector throughout its operating range while supplying detailed flow and latency information, helping improve ECU calibration and overall drivability.
What is included with this injector set?
The package includes six matched injectors, solder-in pigtails, all required O-rings, and a detailed Data Match Sheet for installation and tuning.
Why Buy From Beefcake Racing?
Beefcake Racing is your trusted source for Fuel Injector Clinic injectors and expert fuel system support. Our knowledgeable team can help verify injector sizing, dimensions, and compatibility before you order, ensuring you receive the correct injector set for your custom build.
If you have questions about injector selection or fitment, contact our experienced staff before placing your order.
