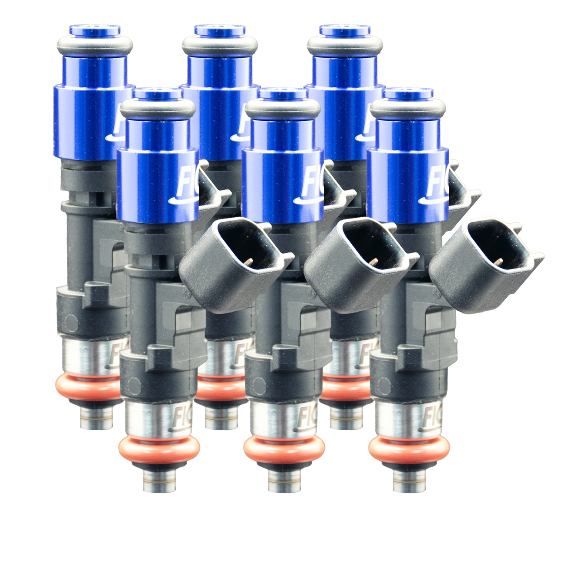

Fuel Injector Clinic Six Cylinder 650cc Custom Injector Set - 64mm Height - 14mm Top O-Ring Diameter - 15mm Bottom O-Ring Diameter (Product Code: 0650-64-14-15-6)
Whether you're building a responsive street car or a dedicated competition vehicle, the Fuel Injector Clinic 650cc Custom Injector Set provides the fuel delivery precision needed to maximize performance. Designed for six cylinder engines, these injectors offer exceptional idle quality, quick throttle response, and dependable fueling for naturally aspirated and boosted applications alike.
Every injector is dynamically matched using Fuel Injector Clinic's exclusive Data Match Technology, ensuring exceptional consistency throughout the injector set. Each injector is individually serial numbered and supplied with a comprehensive Data Match Sheet containing detailed flow and latency information, making ECU calibration faster and more accurate. This custom injector set features a 64mm body height with a 14mm upper O-ring and 15mm lower O-ring configuration, includes solder-in pigtails, and is backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 0650-64-14-15-6
- SKU: isc-0650h-6
- Injector Flow Rate: 650cc/min
- Injector Height: 64mm
- Top O-Ring Diameter: 14mm
- Bottom O-Ring Diameter: 15mm
- Engine Configuration: Six Cylinder
- Flow Rating: Rated at 43.5 PSI (3 Bar)
- Flow Test Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Included: Six matched injectors, Data Match Sheet, solder-in pigtails, and all required O-rings
- Warranty: Lifetime warranty against defects in original manufacture
Features
- Complete matched set of six 650cc performance fuel injectors.
- Flow matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered for complete quality control.
- Includes a detailed Data Match Sheet with individual flow and latency values.
- Excellent short pulse width control for smooth idle and superior drivability.
- Provides consistent fuel delivery for easier ECU tuning.
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid.
- 64mm injector body with 14mm upper and 15mm lower O-ring configuration.
- Includes solder-in pigtails for custom fuel system installations.
- Supplied with all necessary O-rings for proper fitment.
- Covered by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Fitment
Custom fit six cylinder fuel injector set.
Designed for applications requiring:
- 64mm injector height
- 14mm top O-ring diameter
- 15mm bottom O-ring diameter
Ideal for custom fuel systems utilizing this injector configuration. If your application uses aftermarket fuel rails, intake manifolds, or other non-standard fuel system components, verify dimensions before ordering. Contact Beefcake Racing if you need assistance selecting the correct injector setup.
FAQs
What are the advantages of Data Match Technology?
Fuel Injector Clinic dynamically matches injectors across their operating range, providing highly accurate flow and latency characteristics that improve tuning accuracy, idle quality, and overall engine performance.
Does this injector set include installation accessories?
Yes. Every custom injector set includes solder-in pigtails, the appropriate O-rings for this configuration, and a detailed Data Match Sheet with individual injector performance data.
Why Buy From Beefcake Racing?
Beefcake Racing is dedicated to helping enthusiasts and racers choose the right fuel system components for their builds. Our experienced team can help verify injector dimensions, compatibility, and flow requirements before you order, ensuring you receive the correct Fuel Injector Clinic injector set for your application.
Need assistance before purchasing? Contact our knowledgeable staff for expert recommendations and personalized support.
