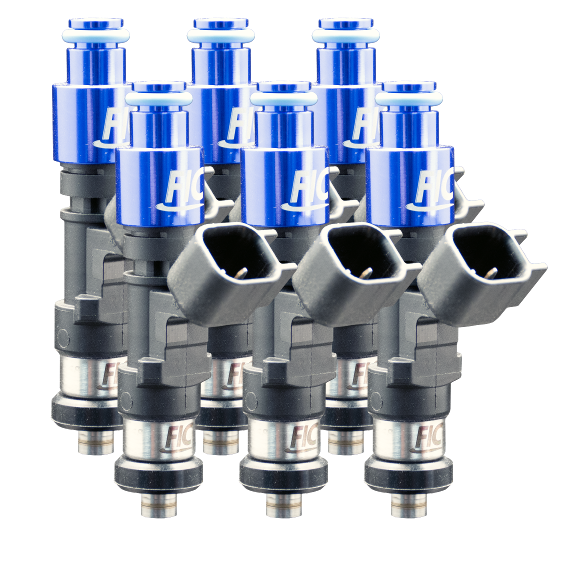

Fuel Injector Clinic Six Cylinder 650cc Custom Injector Set - 64mm Height - 11mm Top O-Ring Diameter - 16mm Bottom O-Ring Diameter (Product Code: 0650-64-11-16-6)
Take the guesswork out of fuel system upgrades with this Fuel Injector Clinic 650cc Custom Injector Set for six cylinder engines. Designed to deliver exceptional fueling accuracy, smooth idle quality, and consistent performance, these injectors are an excellent choice for naturally aspirated and forced induction combinations that demand reliable fuel delivery and precise ECU calibration.
Every injector is dynamically matched using Fuel Injector Clinic's exclusive Data Match Technology to ensure outstanding consistency throughout the operating range. Each injector is individually serial numbered and supplied with a comprehensive Data Match Sheet containing flow and latency information for simplified tuning. This custom injector set features a 64mm body height with an 11mm upper O-ring and 16mm lower O-ring configuration, includes solder-in pigtails, and is protected by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 0650-64-11-16-6
- SKU: isc-0650h-6
- Injector Flow Rate: 650cc/min
- Injector Height: 64mm
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 16mm
- Engine Configuration: Six Cylinder
- Flow Rating: Rated at 43.5 PSI (3 Bar)
- Flow Test Temperature: 90 degrees F
- Calibration Fluid: CF-16B
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Included: Six matched injectors, Data Match Sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime warranty against defects in original manufacture
Features
- Complete matched set of six 650cc high performance fuel injectors.
- Flow matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Individual serial numbers for complete injector traceability.
- Includes a detailed Data Match Sheet with flow and latency values.
- Outstanding short pulse width control for smooth idle and part throttle operation.
- Excellent drivability with consistent fuel delivery throughout the operating range.
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid.
- 64mm injector body with 11mm upper and 16mm lower O-ring configuration.
- Includes solder-in pigtails for custom fuel system installations.
- Supplied with the necessary O-rings for the specified configuration.
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Fitment
Custom fit six cylinder fuel injector set.
Designed for applications requiring:
- 64mm injector height
- 11mm top O-ring diameter
- 16mm bottom O-ring diameter
Applications utilizing aftermarket intake manifolds, fuel rails, or custom fuel systems should verify injector dimensions before ordering. If you need assistance selecting the proper injector configuration, contact Beefcake Racing before placing your order.
FAQs
Why are injectors dynamically matched?
Fuel Injector Clinic's Data Match Technology matches injectors throughout their operating range instead of at a single flow point, providing more accurate tuning data and better engine performance.
Does this injector kit include everything needed for installation?
The injector set includes solder-in pigtails, the required O-rings for this injector configuration, and an individual Data Match Sheet. Always verify your application before installation.
Why Buy From Beefcake Racing?
Beefcake Racing offers expert guidance to help you choose the correct Fuel Injector Clinic injectors for your combination. Whether you're matching injector dimensions to a custom fuel rail or selecting the proper flow rate for your horsepower goals, our knowledgeable team is ready to help ensure you receive the right components the first time.
Need assistance before ordering? Contact our performance specialists for personalized recommendations.
