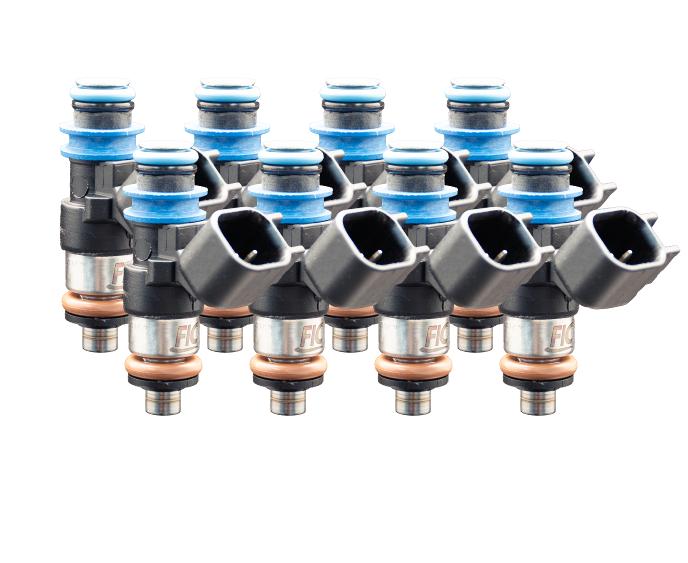

Fuel Injector Clinic Eight Cylinder 540cc SHORT Custom Injector Set - 38mm Height - 11mm Top O-Ring Diameter - 15mm Bottom O-Ring Diameter (0540-38-11-15-8)
Fuel Injector Clinic's 540cc SHORT Custom Injector Set is engineered for high-performance eight cylinder applications that require a compact 38mm short body injector without compromising fuel delivery, drivability, or tuning precision. Ideal for naturally aspirated, turbocharged, and supercharged engine combinations, these high impedance injectors provide consistent fueling with excellent street manners and dependable performance under load.
Each injector is precisely flow matched to within one percent and individually serial numbered, with a detailed flow sheet included in every set. Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid at 90 degrees F, these injectors feature exceptional short pulse width control and tight manufacturing tolerances for simplified ECU tuning. Every custom injector set includes solder-in pigtails along with the required O-rings for the specified injector configuration. If you need assistance selecting the correct injector dimensions, call Fuel Injector Clinic at (561) 427-0082 before ordering.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 0540-38-11-15-8
- Part Number: ISC-0540H-8
- Injector Flow Rate: 540cc/min
- Injector Height: 38mm Short
- Engine Configuration: 8 Cylinder
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 15mm
- Flow Matching: Matched to within 1%
- Flow Test Pressure: 43.5 psi (3 Bar)
- Test Fluid: CF-16B Calibration Fluid
- Fuel Temperature During Testing: 90 degrees F
- Included: Eight matched injectors, detailed flow sheet, solder-in pigtails, and required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Complete matched set of eight 540cc SHORT high performance fuel injectors
- Compact 38mm short body injector design
- Flow matched to within one percent for exceptional cylinder-to-cylinder consistency
- Each injector individually numbered with detailed flow sheet included
- Flow tested at 43.5 psi (3 Bar) using CF-16B calibration fluid
- Excellent short pulse width control for smooth idle and crisp throttle response
- Tight manufacturing tolerances simplify ECU tuning and improve drivability
- Includes solder-in pigtails for custom wiring installations
- Supplied with all required O-rings for the specified injector configuration
- Protected by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects
Fitment
Custom eight cylinder fuel injector applications requiring:
- 540cc injectors
- 38mm SHORT injector height
- 11mm upper O-ring
- 15mm lower O-ring
Designed for custom fuel systems utilizing aftermarket fuel rails, intake manifolds, or other non-standard EFI configurations. Always verify injector height and O-ring dimensions before ordering. Contact Fuel Injector Clinic if you need assistance selecting the proper injector configuration.
FAQs
Why are Fuel Injector Clinic injectors flow matched?
Each injector is matched to within one percent, providing balanced cylinder-to-cylinder fuel delivery, easier ECU tuning, smoother idle quality, and more consistent engine performance.
What comes with this custom injector set?
Each package includes eight matched injectors, a detailed individual flow sheet, solder-in pigtails, and all required O-rings for the specified injector configuration.
