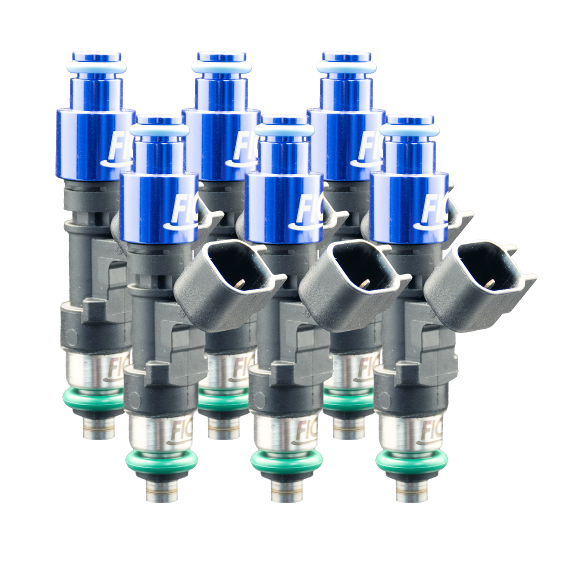

Fuel Injector Clinic Six Cylinder 525cc Custom Injector Set - 64mm Height - 11mm Top O-Ring Diameter - 14mm Bottom O-Ring Diameter (0525-64-11-14-6)
The Fuel Injector Clinic 525cc Custom Injector Set delivers the precision, consistency, and drivability enthusiasts expect from one of the industry's most respected injector manufacturers. Designed for naturally aspirated, turbocharged, and supercharged six-cylinder engine combinations, these injectors provide reliable fuel delivery with outstanding idle quality and crisp throttle response. Each custom injector set includes solder-in pigtails for custom installations.
Every injector is individually flow matched to within one percent and assigned its own serial number, with detailed test results included on the supplied flow sheet. Fuel Injector Clinic tests every injector at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees F to ensure exceptional consistency and repeatable performance. Excellent short pulse width control and tight manufacturing tolerances make these injectors easy to calibrate while providing outstanding street manners. Every set is backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 0525-64-11-14-6
- Part Number: ISC-0525H-6
- Injector Flow Rate: 525cc/min
- Injector Height: 64mm
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 14mm
- Engine Configuration: 6 Cylinder
- Flow Matching: Matched to within 1%
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees F
- Includes: Six matched injectors, solder-in pigtails, detailed flow sheet, required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Custom matched 525cc injector set for six-cylinder engines
- 64mm injector height with 11mm top and 14mm bottom O-ring configuration
- Flow matched to within 1% for exceptional cylinder-to-cylinder consistency
- Each injector individually serial numbered
- Detailed injector flow sheet included
- Excellent short pulse width control for smooth idle quality and drivability
- Tight manufacturing tolerances simplify ECU tuning
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid
- Includes solder-in pigtails for custom installations
- Supplied with all required O-rings for the specified injector configuration
- Backed by Fuel Injector Clinic's Lifetime Warranty
Fitment
Custom six-cylinder applications requiring:
- 64mm injector height
- 11mm top O-ring diameter
- 14mm bottom O-ring diameter
FAQs
How accurately are these injectors matched?
Each Fuel Injector Clinic injector set is flow matched to within one percent. Every injector is individually serial numbered and includes a detailed flow sheet for outstanding tuning accuracy and cylinder-to-cylinder consistency.
Will these injectors provide good drivability?
Yes. Excellent short pulse width control and precise manufacturing tolerances help provide smooth idle quality, responsive throttle control, and straightforward ECU tuning.
What is included with this injector set?
The package includes six matched injectors, solder-in pigtails, the required O-rings for the specified configuration, and a detailed injector flow sheet.
Why Buy From Beefcake Racing?
Beefcake Racing proudly supplies genuine Fuel Injector Clinic products backed by experienced technical support. Whether you're upgrading a street car or building a dedicated race vehicle, our knowledgeable team can help you select the proper injector configuration for your engine and fuel system.
If you have questions about injector sizing or compatibility, contact our team before placing your order.
