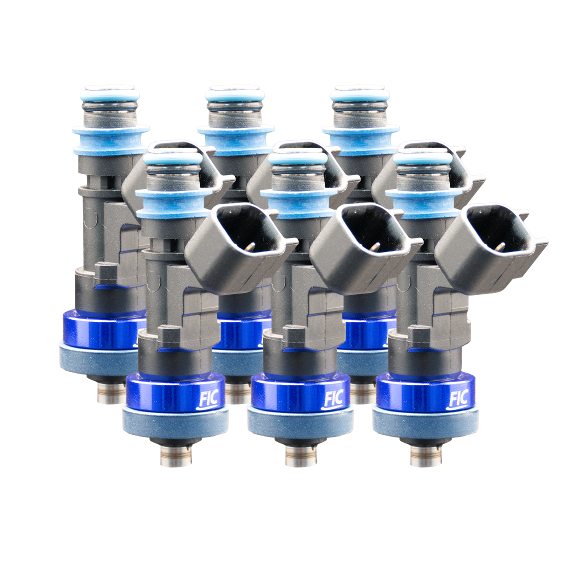

Fuel Injector Clinic Six Cylinder 525cc Custom Injector Set - 53mm Height - 11mm Top O-Ring Diameter - 21mm Bottom O-Ring Diameter (0525-53-11-21-6)
The Fuel Injector Clinic 525cc Custom Injector Set is engineered to deliver precise, consistent fuel delivery for naturally aspirated, turbocharged, and supercharged six-cylinder engine combinations. Built for enthusiasts who demand dependable performance and exceptional drivability, these injectors provide smooth idle quality, crisp throttle response, and accurate fueling throughout the RPM range. Every custom injector set includes solder-in pigtails for custom installations.
Each injector is individually flow matched to within one percent and assigned its own serial number, with detailed performance results documented on the included injector flow sheet. Every injector is flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees F to ensure outstanding cylinder-to-cylinder consistency. Superior short pulse width control and tight manufacturing tolerances simplify ECU tuning while maintaining excellent street manners. Every injector set is backed by Fuel Injector Clinic's Lifetime Warranty against manufacturing defects.
Specifications
- Manufacturer: Fuel Injector Clinic
- Product Code: 0525-53-11-21-6
- Part Number: ISC-0525H-6
- Injector Flow Rate: 525cc/min
- Injector Height: 53mm
- Top O-Ring Diameter: 11mm
- Bottom O-Ring Diameter: 21mm
- Engine Configuration: 6 Cylinder
- Flow Matching: Matched to within 1%
- Flow Test Pressure: 43.5 PSI (3 Bar)
- Calibration Fluid: CF-16B at 90 degrees F
- Includes: Six matched injectors, solder-in pigtails, detailed flow sheet, required O-rings
- Warranty: Lifetime Warranty against manufacturing defects
Features
- Custom matched 525cc injector set for six-cylinder engines
- 53mm injector height with 11mm top and 21mm bottom O-ring configuration
- Flow matched to within 1% for outstanding cylinder-to-cylinder consistency
- Each injector individually serial numbered
- Detailed injector flow sheet included
- Excellent short pulse width control for smooth idle quality and responsive throttle performance
- Tight manufacturing tolerances simplify ECU calibration
- Flow tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid
- Includes solder-in pigtails for custom installations
- Supplied with all required O-rings for the specified injector configuration
- Protected by Fuel Injector Clinic's Lifetime Warranty
Fitment
Custom six-cylinder applications requiring:
- 53mm injector height
- 11mm top O-Ring diameter
- 21mm bottom O-Ring diameter
FAQs
How accurately are these injectors flow matched?
Every Fuel Injector Clinic injector set is matched to within one percent. Each injector is individually serial numbered and includes a detailed flow sheet for exceptional tuning accuracy and cylinder-to-cylinder consistency.
Will these injectors maintain smooth street manners?
Yes. Superior short pulse width control and precise manufacturing tolerances provide excellent idle quality, responsive throttle performance, and straightforward ECU tuning.
What comes with this injector set?
The package includes six matched injectors, solder-in pigtails, all required O-rings for the specified configuration, and a detailed injector flow sheet.
