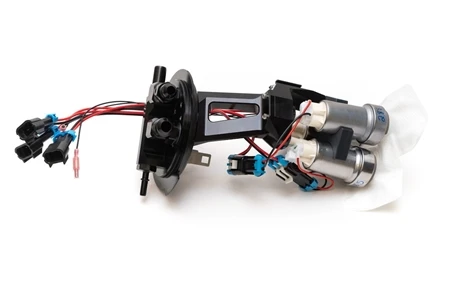

Fore Innovations Triple Pump Fuel Module (91-900) - 2015-2026 Ford F-150 5.0L Coyote
Build the fuel system your high-horsepower 2015-2026 Ford F-150 5.0L Coyote needs with the Fore Innovations Triple Pump Fuel Module. Designed as the foundation of a complete return-style fuel system, the 91-900 supports triple fuel pumps for 900+ RWHP applications while retaining the factory fuel level sender and EVAP functionality.
This is not simply a higher-capacity replacement for the factory pump assembly. The Fore Innovations 91-900 is designed to operate as part of a complete standalone return-style fuel system using external feed and return lines, external filtration, external fuel pressure regulation, an upgraded electrical system, professional installation, and custom tuning. For triple-pump configurations, Fore recommends operating one pump continuously and activating the secondary pumps under load.
Triple Pump Capability for 900+ RWHP Builds
The 91-900 is designed to accommodate three fuel pumps and provide the fuel delivery capability required by serious forced-induction and other high-output Coyote F-150 combinations. When incorporated into an appropriately configured return-style fuel system, the module is intended for applications producing 900+ rear-wheel horsepower.
Fore recommends running one fuel pump full time and activating the additional pumps as fuel demand increases under load. This staged configuration allows the system to provide substantial fuel capacity when required without unnecessarily operating all three high-output pumps continuously.
Retains Factory Fuel Level Sender and EVAP Functionality
Despite being designed for a standalone high-performance fuel system, the Fore Innovations Triple Pump Module retains the OE fuel level sender and EVAP functionality. This allows the module to provide the foundation for a substantially upgraded fuel delivery system while retaining these important factory functions.
Complete Return-Style Fuel System Required
The 91-900 must be used as part of a complete return-style fuel system. Installation requires external feed and return fuel lines, external filtration for the injectors, external fuel pressure regulation, and an upgraded electrical system capable of properly supporting the high-output fuel pumps.
Boost-referenced fuel pressure regulation is recommended, and upgraded fuel rails are recommended for most applications. Proper component selection, placement, hose routing, wiring, and tuning are essential to creating a complete system capable of safely supporting the intended power level.
2015-2017 F-150 Fuel Supply
On 2015-2017 5.0L Coyote F-150 applications, the system is designed to supply the port fuel injection system. It can also support an optional small wet nitrous system when the complete fuel system is properly configured for the additional fuel demand.
2018-2023 F-150 Fuel Supply
On 2018-2023 5.0L Coyote F-150 applications, the system supplies the High Pressure Fuel Pump (HPFP), port injection, and an optional small wet nitrous system.
These applications also require a flow-through T-block mounted directly on the HPFP inlet tube. Fore Innovations suggests using dual matching regulators when maximizing system output and recommends its F1i or F2i regulators for this configuration.
E85 Fuel Pump Requirements
For applications running E85, Fore Innovations specifies the use of compatible high-performance fuel pumps. E85 configurations require F90000267, F90000274, or F90000285 fuel pumps.
Do not select an incompatible pump configuration when the vehicle will be operated on E85. Fuel compatibility must be considered when configuring the complete system.
Professional Installation and Custom Tuning Required
This component is part of a standalone fuel system and requires professional installation and a custom tune. The installer and tuner must be qualified to interface the system with the OE harness and Fuel Pump Driver Module (FPDM), understand correct component placement and hose routing, and configure the completed vehicle with factory-like fuel pump prime and on/off logic without producing error codes.
Fore Innovations supplies basic system schematics and detailed component-level instructions. Fore can also provide troubleshooting assistance regarding the performance and function of the supplied fuel system components.
Fore Innovations does not provide assistance with integration into the OE harness, ECU integration or tuning, or the elimination of alarm codes or Check Engine Lights (CELs). These responsibilities must be handled by the qualified installer and tuner completing the vehicle.
Fuel Temperature and Fuel Level Requirements
High-output fuel pumps generate substantially more heat and fuel capacity than the original fuel system. The F-150's composite fuel tank acts as an insulator and can retain the additional heat generated by the high-powered pumps. The shape of the factory fuel tank also limits the pickup capacity available to the upgraded system.
Because of these characteristics, the driver must maintain a higher-than-normal fuel level in the tank at all times. Keeping sufficient fuel in the tank is necessary to help control fuel system temperatures, minimize the possibility of heat-related damage, and maintain adequate fuel pickup during vehicle operation.
Features
- Fore Innovations Triple Pump Fuel Module
- Part number 91-900
- Designed for 2015-2026 Ford F-150 5.0L Coyote applications
- Designed for use with a complete return-style fuel system
- Supports triple fuel pump configurations
- Designed to support 900+ RWHP applications when used as part of a properly configured complete fuel system
- Fore recommends running one pump full time and activating the secondary pumps under load
- Retains OE fuel level sender functionality
- Retains OE EVAP functionality
- Requires external feed and return fuel lines
- Requires external filtration for the injectors
- Requires external fuel pressure regulation
- Boost-referenced fuel pressure regulation is recommended
- Requires an upgraded electrical system
- Fuel rails are recommended for most applications
- 2015-2017 applications supply the port injection system
- 2015-2017 applications can support an optional small wet nitrous system
- 2018-2023 applications supply the HPFP and port injection system
- 2018-2023 applications can support an optional small wet nitrous system
- 2018-2023 applications require a flow-through T-block mounted directly to the HPFP inlet tube
- Dual matching regulators are suggested when maximizing output on applicable configurations
- Fore Innovations F1i or F2i regulators are recommended for applicable dual-regulator configurations
- E85 requires F90000267, F90000274, or F90000285 fuel pumps
- Professional installation required
- Custom tuning required
- Qualified installer must be capable of interfacing with the OE harness and FPDM
- System must be configured with proper component placement and hose routing
- Completed system should retain factory-like pump prime and on/off logic without error codes
- Fore Innovations supplies basic system schematics and detailed component-level instructions
- High-output fuel pumps generate substantially more heat than the factory fuel pump
- Higher-than-normal fuel levels must be maintained to minimize heat damage and ensure adequate fuel pickup
Fitment
- 2015 Ford F-150 5.0L Coyote
- 2016 Ford F-150 5.0L Coyote
- 2017 Ford F-150 5.0L Coyote
- 2018 Ford F-150 5.0L Coyote
- 2019 Ford F-150 5.0L Coyote
- 2020 Ford F-150 5.0L Coyote
- 2021 Ford F-150 5.0L Coyote
- 2022 Ford F-150 5.0L Coyote
- 2023 Ford F-150 5.0L Coyote
- 2024 Ford F-150 5.0L Coyote
- 2025 Ford F-150 5.0L Coyote
- 2026 Ford F-150 5.0L Coyote
Fitment Notes
- For 2015-2026 Ford F-150 applications equipped with the 5.0L Coyote engine.
- This module is part of a standalone return-style fuel system and is not a complete fuel system by itself.
- External feed and return lines, external filtration, external regulation, and an upgraded electrical system are required.
- Fuel rails are recommended for most applications.
- 2018-2023 applications require a flow-through T-block mounted directly to the HPFP inlet tube.
- E85 applications require F90000267, F90000274, or F90000285 fuel pumps.
- Professional installation and custom tuning are required.
- Fore Innovations does not provide OE harness integration, ECU tuning, or assistance eliminating alarm codes or CELs.
- The driver must maintain more fuel than normal in the factory tank to help control heat and ensure adequate fuel pickup.
Fuel Pump Warranty:
We take great pride in our product line since we design, machine, assemble, and package our products entirely in house. We guarantee our products to be free of defects in materials and workmanship to the original purchaser. Due to the highly technical nature of our products, we recommend only experienced and competent individuals and shops install our products and systems.
We cannot accept returns on injectors or pumps that have been in contact with fuel.
Fore Innovations, LLC does not warranty any product that have been damaged or rendered defective as a result of accident, misuse, or abuse. Additionally, Fore Innovations is not responsible for special, incidental, or consequential damages or costs incurred due to the installation, use, or misuse of our products.
We will gladly refund any parts that are received in new resalable condition and accompanied with a Return Authorization Number to the original purchaser. Fore Innovations will not be responsible for any items sent to us without a Return Authorization Number.
TI Automotive (and Walbro) fuel pumps are sold only with TI Automotive’s warranty. Currently, TI Automotive does not have a warranty on their high performance parts. For more information:
