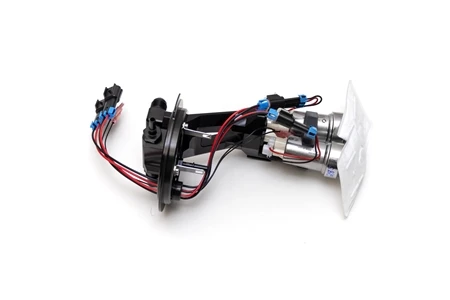

Fore Innovations Dual Pump Fuel Module (91-800) - 2015-2026 Ford F-150 5.0L Coyote
Build a high-capacity return-style fuel system for your 2015-2026 Ford F-150 5.0L Coyote with the Fore Innovations Dual Pump Fuel Module. Designed to support dual fuel pumps as part of a complete return-style system, the 91-800 provides the fuel delivery foundation for approximately 800-900 RWHP applications while retaining the OE fuel level sender and EVAP functionality.
Fore recommends operating one fuel pump continuously and activating the secondary pump under load. This staged configuration provides additional fuel capacity as engine demand increases while avoiding the need to operate both high-output pumps continuously.
The 91-800 is a component of a complete standalone fuel system and is not a drop-in replacement for the factory fuel system by itself. External feed and return lines, external filtration, external fuel pressure regulation, an upgraded electrical system, professional installation, and custom tuning are required.
Dual Pump Capability for 800-900 RWHP
The Fore Innovations 91-800 is designed for dual fuel pump configurations supporting approximately 800-900 rear-wheel horsepower when incorporated into a properly configured complete return-style fuel system. This makes it an excellent foundation for high-powered Coyote F-150 builds that require substantially more fuel capacity than the original system can provide.
Fore recommends running one pump full time and activating the second pump under load. Proper pump staging allows the secondary pump to provide additional fuel delivery as engine load and fuel demand increase.
Retains OE Fuel Level Sender and EVAP Functionality
Although the 91-800 is designed around a standalone return-style fuel system, it retains the OE fuel level sender and EVAP functionality. This allows the upgraded fuel system to provide significantly increased capacity while retaining these important factory functions.
Complete Return-Style Fuel System Required
The Fore Innovations 91-800 must be used in conjunction with a complete return-style fuel system. The module requires external feed and return lines, external filtration for the injectors, external fuel pressure regulation, and an upgraded electrical system capable of properly supporting the high-output fuel pumps.
Boost-referenced fuel pressure regulation is recommended. Upgraded fuel rails are also recommended for most applications. Proper sizing and configuration of every component in the system is critical when supporting high-horsepower combinations.
2015-2017 F-150 Fuel Supply
For 2015-2017 5.0L Coyote F-150 applications, the return-style fuel system supplies the port injection system. The system can also supply an optional small wet nitrous system when appropriately configured for the additional fuel demand.
2018-2023 F-150 Fuel Supply
For 2018-2023 5.0L Coyote F-150 applications, the system supplies the High Pressure Fuel Pump (HPFP), port injection, and an optional small wet nitrous system.
These applications also require a flow-through T-block mounted directly on the HPFP inlet tube. When maximizing fuel system output, Fore Innovations suggests using dual matching regulators and recommends Fore F1i or F2i regulators for this configuration.
E85 Fuel Pump Requirements
Fuel pump selection is especially important when the vehicle will be operated on E85. Fore Innovations specifies the F90000267, F90000274, or F90000285 fuel pumps for E85 applications using this module.
E85 applications require F90000267, F90000274, or F90000285 pumps. The complete fuel system must be configured with components appropriate for the fuel being used.
Professional Installation Required
This module is part of a standalone fuel system and requires professional installation. Qualified installers must understand correct component placement and hose routing and must be capable of properly interfacing the upgraded system with the OE harness and Fuel Pump Driver Module (FPDM).
The completed vehicle must retain proper factory-like fuel pump prime and on/off logic without producing error codes. Installation of a system at this level requires a qualified professional who understands both the aftermarket fuel system and its interaction with the factory vehicle electronics.
Custom Tuning Required
A custom tune is required for this component and the associated fuel system to function properly. Fore Innovations provides detailed assistance regarding the function of the components it supplies, along with basic system schematics and detailed component-level instructions.
Fore Innovations can also assist with troubleshooting the performance and function of its fuel system and components. However, Fore does not provide assistance with integration into the OE harness, ECU integration or tuning, or elimination of alarm codes or Check Engine Lights (CELs). These responsibilities must be handled by the qualified installer and tuner completing the vehicle.
Fuel Heat and Minimum Fuel Level Considerations
High-output fuel pumps generate substantially more heat and capacity than the original F-150 fuel system. The high-powered pumps produce considerably more heat than the factory pump, while the composite construction of the factory fuel tank acts as an insulator and stores heat.
The shape of the factory fuel tank also limits the pickup capacity of the upgraded fuel system. Because of these characteristics, the driver must maintain more fuel than normal in the tank at all times. Maintaining an adequate fuel level is necessary to help minimize heat-related damage and ensure sufficient fuel pickup.
Features
- Fore Innovations Dual Pump Fuel Module
- Part number 91-800
- Designed for 2015-2026 Ford F-150 5.0L Coyote applications
- Designed for use with a complete return-style fuel system
- Supports dual fuel pump configurations
- Designed to support approximately 800-900 RWHP when used as part of a properly configured complete fuel system
- Fore recommends running one fuel pump full time and activating the secondary pump under load
- Retains OE fuel level sender functionality
- Retains OE EVAP functionality
- Requires external feed and return fuel lines
- Requires external filtration for the injectors
- Requires external fuel pressure regulation
- Boost-referenced fuel pressure regulation is recommended
- Requires an upgraded electrical system
- Fuel rails are recommended for most applications
- 2015-2017 applications supply port injection
- 2015-2017 applications can support an optional small wet nitrous system
- 2018-2023 applications supply the High Pressure Fuel Pump (HPFP) and port injection
- 2018-2023 applications can support an optional small wet nitrous system
- 2018-2023 applications require a flow-through T-block mounted directly on the HPFP inlet tube
- Dual matching regulators are suggested when maximizing system output
- Fore F1i or F2i regulators are recommended for applicable dual-regulator configurations
- E85 requires F90000267, F90000274, or F90000285 fuel pumps
- Professional installation required
- Custom tuning required
- Qualified installer and tuner must be capable of interfacing with the OE harness and FPDM
- Proper component placement and hose routing are required
- Completed installation must provide factory-like pump prime and on/off logic without error codes
- Fore Innovations supplies basic system schematics and detailed component-level instructions
- Fore Innovations provides troubleshooting assistance for the performance and function of its supplied system and components
- High-output fuel pumps generate substantially more heat than the factory pump
- Higher-than-normal fuel levels must be maintained to help minimize heat damage and ensure adequate fuel pickup
Fitment
- 2015 Ford F-150 5.0L Coyote
- 2016 Ford F-150 5.0L Coyote
- 2017 Ford F-150 5.0L Coyote
- 2018 Ford F-150 5.0L Coyote
- 2019 Ford F-150 5.0L Coyote
- 2020 Ford F-150 5.0L Coyote
- 2021 Ford F-150 5.0L Coyote
- 2022 Ford F-150 5.0L Coyote
- 2023 Ford F-150 5.0L Coyote
- 2024 Ford F-150 5.0L Coyote
- 2025 Ford F-150 5.0L Coyote
- 2026 Ford F-150 5.0L Coyote
Fitment Notes
- For 2015-2026 Ford F-150 applications equipped with the 5.0L Coyote engine.
- This module is one component of a standalone return-style fuel system and is not a complete fuel system by itself.
- External feed and return lines, external filtration, external regulation, and an upgraded electrical system are required.
- Fuel rails are recommended for most applications.
- 2018-2023 applications require a flow-through T-block mounted directly on the HPFP inlet tube.
- E85 applications require F90000267, F90000274, or F90000285 fuel pumps.
- Professional installation and custom tuning are required.
- Fore Innovations does not provide assistance with OE harness integration, ECU integration or tuning, or elimination of alarm codes or CELs.
- The driver must maintain a higher-than-normal fuel level in the factory tank to help minimize heat damage and ensure adequate fuel pickup.
Fuel Pump Warranty:
We take great pride in our product line since we design, machine, assemble, and package our products entirely in house. We guarantee our products to be free of defects in materials and workmanship to the original purchaser. Due to the highly technical nature of our products, we recommend only experienced and competent individuals and shops install our products and systems.
We cannot accept returns on injectors or pumps that have been in contact with fuel.
Fore Innovations, LLC does not warranty any product that have been damaged or rendered defective as a result of accident, misuse, or abuse. Additionally, Fore Innovations is not responsible for special, incidental, or consequential damages or costs incurred due to the installation, use, or misuse of our products.
We will gladly refund any parts that are received in new resalable condition and accompanied with a Return Authorization Number to the original purchaser. Fore Innovations will not be responsible for any items sent to us without a Return Authorization Number.
TI Automotive (and Walbro) fuel pumps are sold only with TI Automotive’s warranty. Currently, TI Automotive does not have a warranty on their high performance parts. For more information:
