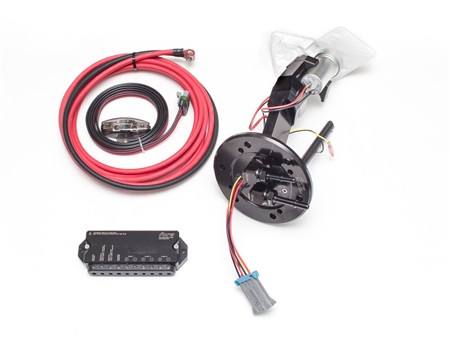

Fore Innovations Level 1 Dual Pump Fuel System (54-521) - 1999-2004 Ford Lightning
The Fore Innovations Level 1 Dual Pump Fuel System is a boost-referenced fuel system capable of supporting 700+ RWHP for 1999-2004 Ford Lightning applications. Designed as a straightforward upgrade, the system allows the factory feed and return lines to connect directly to the Fore Innovations dual pump module.
The Level 1 system can also serve as the foundation for future upgrades. Larger feed and return lines, higher-capacity filtration and regulation, and larger fuel pumps can be added later as power and fuel system requirements increase.
Features
- Supports 700+ RWHP depending on fuel pump configuration
- Dual fuel pump configuration
- Boost-referenced fuel system
- Uses OE feed and return fuel lines
- OE feed and return lines connect directly to the Fore Innovations pump module
- Can be upgraded later with larger feed and return lines
- Supports future upgrades to higher-capacity filtration and regulation
- Wide or compact dual pump module supplied based on fuel pump selection
Included Components
- 1999-2004 Lightning Dual Pump Module - wide or compact configuration supplied based on pump selection
- OE feed line adapter
- OE return line adapter
Installation Notes
Depending on the selected fuel pump arrangement, the lower pump module assembly may be larger than the fuel tank opening. Partial disassembly of the module may be required to install it into the fuel tank.
Fitment
- 1999 Ford F-150 Lightning
- 2000 Ford F-150 Lightning
- 2001 Ford F-150 Lightning
- 2002 Ford F-150 Lightning
- 2003 Ford F-150 Lightning
- 2004 Ford F-150 Lightning
- 1999 Ford F-150 Short Bed
- 2000 Ford F-150 Short Bed
- 2001 Ford F-150 Short Bed
- 2002 Ford F-150 Short Bed
- 2003 Ford F-150 Short Bed
Note: Some modification may be required for 1999-2003 Ford F-150 Short Bed applications.
Available Options and Upgrades
Electrical Options
- None: Base module configuration with approximately 6"""" of fuel pump power wire extending from the hermetic seal.
- FC2 Controller with 6-Gauge Wiring: Operates both pumps simultaneously using factory control. Best for two smaller street-duty pumps or two large pumps in track applications where increased fuel heat is less of a concern. Can control secondary pumps on a triple-pump module when a small primary pump is powered by the OEM harness. Includes 14' of 6 AWG power wire, 100-amp fuse, 3' ground wire, 7' 12 AWG pump leads, and sealed Delphi connector.
- FC3 Staged Controller with 4-Gauge Wiring: Independently controls the secondary pump(s) from the primary pump using factory control plus a secondary trigger. Recommended for two or three large pumps in street applications to help minimize fuel heat. Includes 14' of 4 AWG power wire, 100-amp fuse, 3' ground wire, 7' 12 AWG pump leads, and sealed Delphi connector.
- Delphi Connector / Pigtail Only: Includes a sealed Delphi connector and 7' of 12 AWG pump leads. Installer is responsible for supplying and properly configuring the required fuses and relays.
Additional System Options
- Honeywell Pressure Switch for FC3: 1/8"""" NPT male pressure switch designed for installation in the intake manifold. Must receive both boost and vacuum signals.
