Fore Innovations Level 1E Dual Pump Fuel System (49-521E) - Hemi LX
The Fore Innovations Level 1E Dual Pump Fuel System is an 800 RWHP capable return-style fuel system designed for Hemi LX applications where the factory fuel rails must be retained. Supply fuel is regulated before entering the factory fuel rails, with an upgraded feed line and proper filtration included.
This system can be configured for E85 use with the proper fuel pumps and filtration. Fore generally recommends its Level 2 or Level 4 systems over the Level 1E or Level 3 configurations for E85 because the engine must be able to start on fuel vapor. Starting on E85 may be challenging and requires additional consideration from the tuner.
E85 Applications
For E85 compatibility, select F90000267, F90000274, or F90000285 fuel pumps along with microglass SSD or stainless filtration.

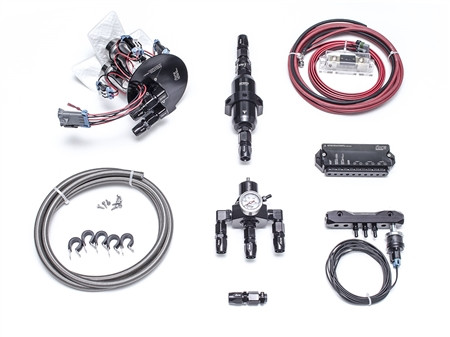

Included Components
- LX dual fuel pump module
- F2i Fuel Pressure Regulator
- 88mm inline fuel filter
- Filter-mounted FCV check valve
- OE regulator blockoff kit
- OE feed line blockoff kit
- 30 feet of fuel line with choice of available fuel line type
- 8 compression-style billet hose ends
- 4 low-profile 90-degree billet O-ring fittings
- 2 straight AN-to-O-ring fittings
- 10 hose straps with stainless mounting screws
- 1 EFI 3/8-inch male to AN-8 male adapter
- Fittings, hose, and hardware necessary for typical fuel line plumbing
Installation Notes
Professional installation and a custom tune are required. This is a standalone fuel system. Qualified installers and tuners must be able to interface with the OE harness and FPDM where required, understand proper component placement and hose routing, and provide factory-like pump prime and on/off operation without error codes.
Fore Innovations provides basic system schematics, detailed component-level instructions, and troubleshooting assistance for the performance and function of its fuel system and components.
High-output fuel pumps generate substantially more heat than the factory fuel pump, while the composite fuel tank can insulate and retain this additional heat. The shape of the factory fuel tank also limits fuel pickup capacity. More fuel than normal must be kept in the tank at all times to help minimize heat-related damage and maintain adequate fuel pickup.
Features
- Supports up to 800 RWHP when properly configured
- Return-style dual pump fuel system
- Retains the factory fuel rails
- Supply fuel regulated before entering the factory fuel rails
- Upgraded feed line and filtration included
- F2i Fuel Pressure Regulator
- 88mm inline fuel filter
- Filter-mounted FCV check valve
- Can be configured for E85 with specified pumps and filtration
- Professional installation and custom tuning required
Fitment
- 2005 Chrysler 300C
- 2006 Chrysler 300C
- 2007 Chrysler 300C
- 2008 Chrysler 300C
- 2009 Chrysler 300C
- 2010 Chrysler 300C
- 2011 Chrysler 300C
- 2012 Chrysler 300C
- 2013 Chrysler 300C
- 2014 Chrysler 300C
- 2015 Chrysler 300C
- 2016 Chrysler 300C
- 2017 Chrysler 300C
- 2018 Chrysler 300C
- 2019 Chrysler 300C
- 2020 Chrysler 300C
- 2021 Chrysler 300C
- 2022 Chrysler 300C
- 2023 Chrysler 300C
- 2006 Dodge Charger
- 2007 Dodge Charger
- 2008 Dodge Charger
- 2009 Dodge Charger
- 2010 Dodge Charger
- 2011 Dodge Charger
- 2012 Dodge Charger
- 2013 Dodge Charger
- 2014 Dodge Charger
- 2015 Dodge Charger
- 2016 Dodge Charger
- 2017 Dodge Charger
- 2018 Dodge Charger
- 2019 Dodge Charger
- 2020 Dodge Charger
- 2021 Dodge Charger
- 2022 Dodge Charger
- 2023 Dodge Charger
- 2008 Dodge Challenger
- 2009 Dodge Challenger
- 2010 Dodge Challenger
- 2011 Dodge Challenger
- 2012 Dodge Challenger
- 2013 Dodge Challenger
- 2014 Dodge Challenger
- 2015 Dodge Challenger
- 2016 Dodge Challenger
- 2017 Dodge Challenger
- 2018 Dodge Challenger
- 2019 Dodge Challenger
- 2020 Dodge Challenger
- 2021 Dodge Challenger
- 2022 Dodge Challenger
- 2023 Dodge Challenger
- 2005 Dodge Magnum
- 2006 Dodge Magnum
- 2007 Dodge Magnum
- 2008 Dodge Magnum
Note: Does not fit Hellcat applications.
Available Options and Upgrades
Electrical Options
- None: Base module configuration with approximately 6"" of fuel pump power wire extending from the hermetic seal.
- FC2 Controller with 6-Gauge Wiring: Operates both pumps simultaneously using factory control. Best for two smaller street-duty pumps or two large pumps in track applications where increased fuel heat is less of a concern. Can control secondary pumps on a triple-pump module when a small primary pump is powered by the OEM harness. Includes 14' of 6 AWG power wire, 100-amp fuse, 3' ground wire, 7' 12 AWG pump leads, and sealed Delphi connector.
- FC3 Staged Controller with 4-Gauge Wiring: Independently controls the secondary pump(s) from the primary pump using factory control plus a secondary trigger. Recommended for two or three large pumps in street applications to help minimize fuel heat. Includes 14' of 4 AWG power wire, 100-amp fuse, 3' ground wire, 7' 12 AWG pump leads, and sealed Delphi connector.
- Delphi Connector / Pigtail Only: Includes a sealed Delphi connector and 7' of 12 AWG pump leads. Installer is responsible for supplying and properly configuring the required fuses and relays.
Filtration Media
- Cellulose: 10-micron nominal / 14-micron absolute disposable element with aluminum endcaps and Viton O-ring. For gasoline and race gas. Recommended for Injector Dynamics injectors.
- Microglass SSD Anti-Static: 12-micron absolute disposable, static-dissipating element with aluminum endcaps and Viton O-ring. Compatible with gasoline, race gas, E85, E100, M5, diesel, and other fuel blends. Recommended for Injector Dynamics injectors.
- Stainless: 10-micron nominal / 26-micron absolute reusable stainless element with stainless endcaps and Viton O-ring. Compatible with gasoline, race gas, E85, E100, M5, diesel, and other fuel blends.
Fuel Filter Upgrades
- 128mm Filter: Upgrades the standard 88mm filter to a larger 128mm filter for increased filtration capacity and longer service intervals.
- Billet Mounting Bracket: Provides a secure, show-quality underbody filter installation while keeping the filter accessible for maintenance.
- Filter Monitoring Gauge and Fitting: Monitors fuel pressure before the filter to help identify restriction. Increasing pre-filter pressure can indicate a clogged filter, which can reduce pump performance, shorten pump life, and increase fuel temperature. Includes a fitting for proper gauge orientation.
Additional System Options
- Honeywell Pressure Switch for FC3: 1/8"" NPT male pressure switch designed for installation in the intake manifold. Must receive both boost and vacuum signals.
- Boost / Vacuum Manifold Kit: Includes Fore Innovations Boost / Vacuum Manifold, three 1/4"" barb fittings, and four plugs.
Fuel Pump Warranty:
We take great pride in our product line since we design, machine, assemble, and package our products entirely in house. We guarantee our products to be free of defects in materials and workmanship to the original purchaser. Due to the highly technical nature of our products, we recommend only experienced and competent individuals and shops install our products and systems.
We cannot accept returns on injectors or pumps that have been in contact with fuel.
Fore Innovations, LLC does not warranty any product that have been damaged or rendered defective as a result of accident, misuse, or abuse. Additionally, Fore Innovations is not responsible for special, incidental, or consequential damages or costs incurred due to the installation, use, or misuse of our products.
We will gladly refund any parts that are received in new resalable condition and accompanied with a Return Authorization Number to the original purchaser. Fore Innovations will not be responsible for any items sent to us without a Return Authorization Number.
TI Automotive (and Walbro) fuel pumps are sold only with TI Automotive’s warranty. Currently, TI Automotive does not have a warranty on their high performance parts. For more information:
