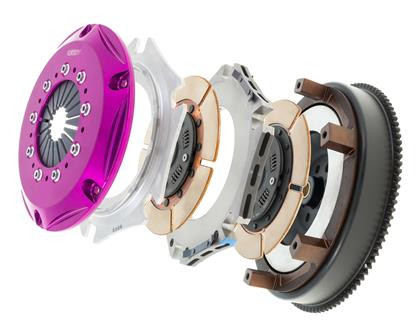

Exedy Hyper Twin Cerametallic Disc Clutch 24 Spline (99-02 Silvia) NM022SD

For high-powered applications, Exedy offers twin Multi-Plate clutches. These are designed for high power street action as well as drag, road and rally racing. The twin plate clutches are rated for approximately 500 ft/lbs of torque. Twins come with both spring damper discs or solid discs depending on application.

All Exedy Hyper Multi-Plate clutches come with a lightweight, chromoly steel flywheel and the famous purple anodized forged aluminum clutch cover. Depending on the application, we have both strap drive and lug drive models. All have T5001 cerametallic friction materials for extreme heat resistance. Surprisingly, even with it’s additional power capability, most multi-plate clutches exhibit light pedal pressure thanks to a half-engaged zone provided by the patented clutch cushion function.

SD Type

This model has been developed for high powered street cars and race cars with up to approximately 600TQ at FW. They feature ventilated, thick intermediate plates for improved life and spring damper discs to protect your transmission and drive line.

SR Type

These clutch covers are designed to achieve a clamping load that is approx. 40 percent higher than the genuine part allowing a higher torque transmitting capacity. Ductile material is used for all pressure plates and, high burst strength can be achieved in all temperature ranges.

HR Type

This model has three plates and is developed specifically for high power applications such as over 800 ft/lbs of torque at the flywheel for drag racing. It handles high torque loads and shifts smooth, and because of the lightweight clutch discs, you can reduce your shift times.

Hyper Twin Cerametallic Clutch

Sprung Center Disc

Push Type Cover

Includes Flywheel Bolts

For use w/ Hyper Accessory Kit NSAK102

Clamp Load: 2205

Disc Diameter: 7.9in./200mm

Kit Contents: CM01S, PP01, IM01, DM01DA, DM01DB, FR01, FM02, BS05, BS01, BF08

Spline Count: 24

Spline Size: 1in./25.6mm

Torque Capacity: 511 ft/lbs.

Application

• 99-02 Nissan Silvia L4 2.0 (From 3/99 Production Date; 6Speed Transmission)
