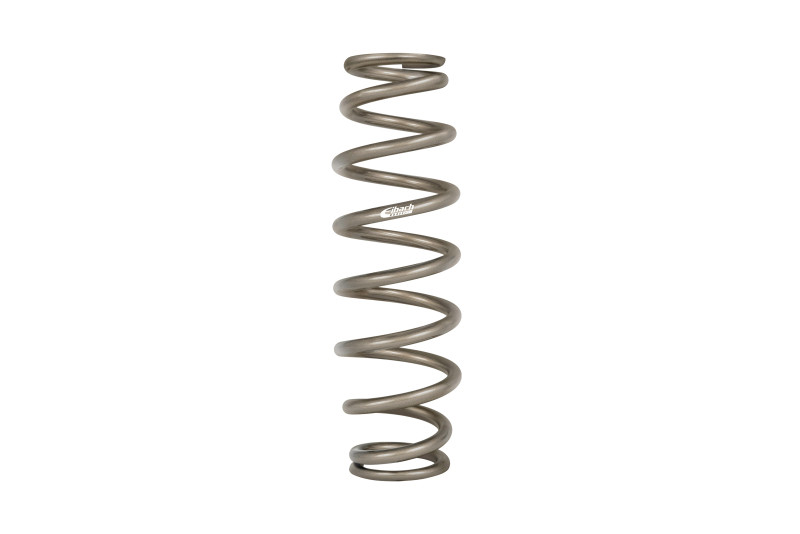

Eibach Platinum XT Barrel Main Spring 2.50in Dia 16.00in Length 75 lbs/in (P1600.2530.0075)
The Eibach Platinum XT Barrel Main Spring P1600.2530.0075 is designed for maximum suspension travel, ultra-low block height, and exceptional linearity. As part of Eibach's premium Platinum XT series, this 16-inch, 75 lb/in spring is ideal for long-travel coilover systems that require a low spring rate with high responsiveness and lightweight construction.
Built using Eibach's Hi-Tensil Platinum spring wire, this spring delivers superior strength-to-weight performance, reduced unsprung mass, and long-term rate stability. The redesigned XT Barrel profile increases usable stroke and enhances suspension behavior throughout the travel range. Each spring is individually tested to ensure precision and reliability under demanding racing conditions.
Specifications
- Part Number: P1600.2530.0075
- Series: Platinum XT Barrel Main Spring
- Length: 16.00 in (406.00 mm)
- Diameter: 2.50 in I.D. (64.00 mm I.D.)
- Rate: 75 lbs/in (1.34 kg/mm)
- Block Height: 3.46 in (88.00 mm)
- Travel: 12.52 in (318.00 mm)
- Block Load: 940 lbs (4181 N)
- Weight: 3.52 lbs (1.60 kg)
Features
- Redesigned XT Barrel shape for increased suspension travel and improved linearity
- Hi-Tensil Platinum spring wire for maximum strength and reduced unsprung mass
- Ultra-lightweight construction optimized for competitive racing
- Small block height for maximum usable stroke
- Each spring is individually tested for accuracy and consistency
- Backed by Eibach's five-year warranty
Notes
- Ideal for long-travel coilover systems requiring a low spring rate and maximum stroke
- Verify 2.50in I.D. compatibility with your coilover hardware
