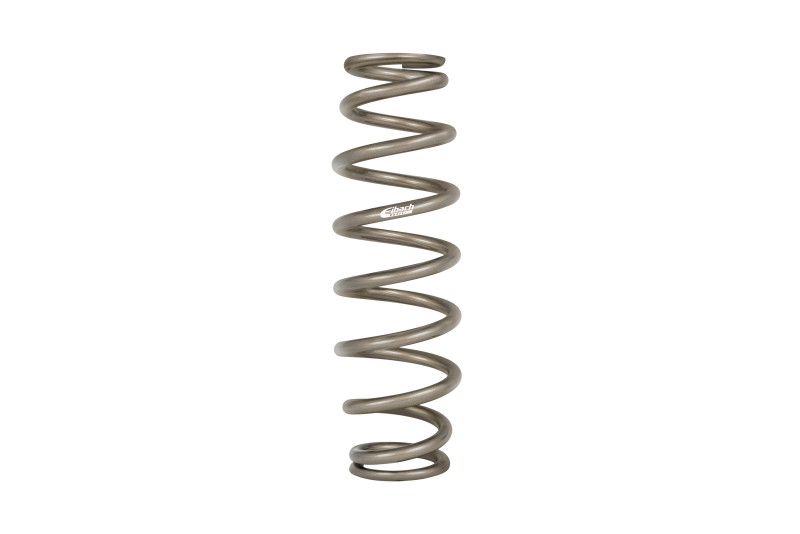

Eibach Platinum XT Barrel Main Spring 2.50in Dia 14.00in Length 200 lbs/in (P1400.2530.0200)
The Eibach Platinum XT Barrel Main Spring P1400.2530.0200 is engineered for maximum suspension travel, exceptional linearity, and ultra-low block height. As part of Eibach's top-tier Platinum XT series, this 14-inch, 200 lb/in spring is ideal for long-travel coilover systems that require a firmer mid-range rate while maintaining lightweight construction and consistent performance under demanding racing conditions.
Constructed using Eibach's Hi-Tensil Platinum spring wire, this spring delivers superior strength-to-weight characteristics, reduced unsprung mass, and long-term rate stability. The redesigned XT Barrel profile increases usable stroke and enhances suspension responsiveness throughout the travel range. Each spring is individually tested to ensure precision, accuracy, and reliability.
Specifications
- Part Number: P1400.2530.0200
- Series: Platinum XT Barrel Main Spring
- Length: 14.00 in (356.00 mm)
- Diameter: 2.50 in I.D. (64.00 mm I.D.)
- Rate: 200 lbs/in (3.58 kg/mm)
- Block Height: 3.96 in (101.00 mm)
- Travel: 10.05 in (255.00 mm)
- Block Load: 2009 lbs (8935 N)
- Weight: 4.85 lbs (2.20 kg)
Features
- Redesigned XT Barrel shape for increased suspension travel and improved linearity
- Hi-Tensil Platinum spring wire for maximum strength and reduced unsprung mass
- Ultra-lightweight construction optimized for competitive racing
- Small block height for maximum usable stroke
- Each spring is individually tested for accuracy and consistency
- Backed by Eibach's five-year warranty
Notes
- Ideal for long-travel coilover systems requiring a firmer mid-range spring rate
- Verify 2.50in I.D. compatibility with your coilover hardware
