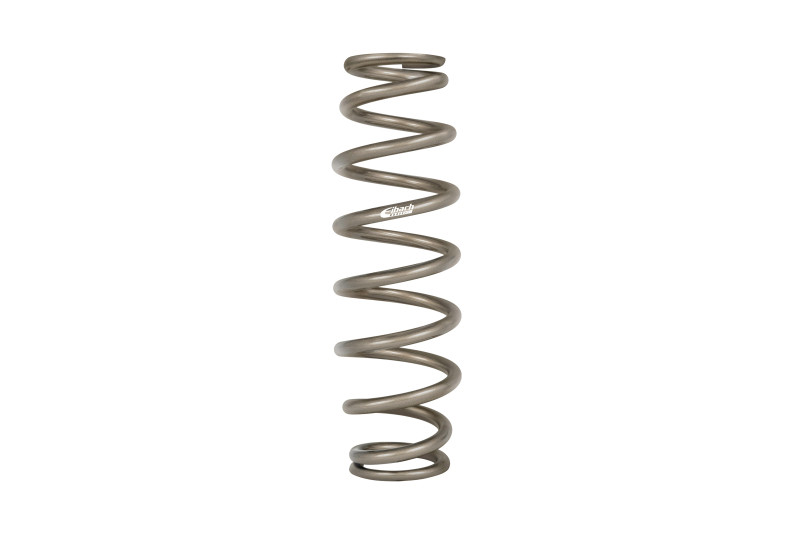

Eibach Platinum XT Barrel Main Spring 2.50in Dia 14.00in Length 175 lbs/in (P1400.2530.0175)
The Eibach Platinum XT Barrel Main Spring P1400.2530.0175 is engineered for long-travel coilover performance with exceptional linearity, lightweight construction, and ultra-low block height. As part of Eibach's Platinum XT series, this 14-inch, 175 lb/in spring is ideal for applications requiring a slightly firmer mid-range rate while maintaining maximum usable stroke and consistent performance under demanding racing conditions.
Built using Eibach's Hi-Tensil Platinum spring wire, this spring delivers superior strength-to-weight characteristics, reduced unsprung mass, and long-term rate stability. The redesigned XT Barrel profile increases suspension travel and improves responsiveness throughout the stroke. Each spring is individually tested to ensure precision and reliability.
Specifications
- Part Number: P1400.2530.0175
- Series: Platinum XT Barrel Main Spring
- Length: 14.00 in (356.00 mm)
- Diameter: 2.50 in I.D. (64.00 mm I.D.)
- Rate: 175 lbs/in (3.13 kg/mm)
- Block Height: 3.62 in (92.00 mm)
- Travel: 10.39 in (264.00 mm)
- Block Load: 1818 lbs (8087 N)
- Weight: 4.19 lbs (1.90 kg)
Features
- Redesigned XT Barrel shape for increased suspension travel and improved linearity
- Hi-Tensil Platinum spring wire for maximum strength and reduced unsprung mass
- Ultra-lightweight construction optimized for competitive racing
- Small block height for maximum usable stroke
- Each spring is individually tested for accuracy and consistency
- Backed by Eibach's five-year warranty
Notes
- Ideal for long-travel coilover systems requiring a firmer mid-range spring rate
- Verify 2.50in I.D. compatibility with your coilover hardware
