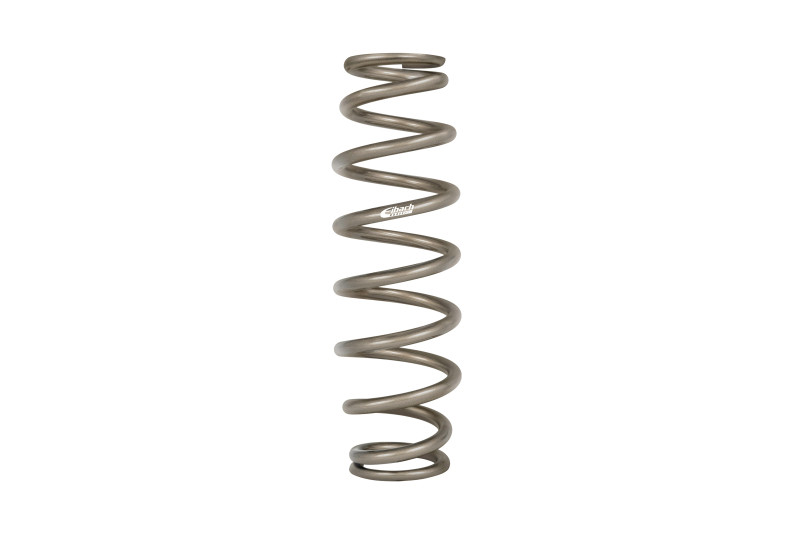

Eibach Platinum XT Barrel Main Spring 2.50in Dia 12.00in Length 175 lbs/in (P1200.2530.0175)
The Eibach Platinum XT Barrel Main Spring P1200.2530.0175 is engineered for long-travel coilover performance with exceptional linearity and ultra-low block height. As part of the Platinum XT series, this 12-inch, 175 lb/in spring delivers increased usable stroke, reduced unsprung mass, and consistent rate control - ideal for competitive racing and high-performance suspension setups.
Manufactured using Eibach's Hi-Tensil Platinum spring wire, this spring provides superior strength-to-weight characteristics and long-term durability. The redesigned XT Barrel profile enhances suspension travel and responsiveness, while each spring undergoes individual testing to ensure precision and reliability.
Specifications
- Part Number: P1200.2530.0175
- Series: Platinum XT Barrel Main Spring
- Length: 12.00 in (305.00 mm)
- Diameter: 2.50 in I.D. (64.00 mm I.D.)
- Rate: 175 lbs/in (3.13 kg/mm)
- Block Height: 3.44 in (87.00 mm)
- Travel: 8.56 in (217.00 mm)
- Block Load: 1498 lbs (6661 N)
- Weight: 3.97 lbs (1.80 kg)
Features
- Redesigned XT Barrel shape for increased suspension travel and improved linearity
- Hi-Tensil Platinum spring wire for maximum strength and reduced unsprung mass
- Ultra-lightweight construction optimized for competitive racing
- Small block height for maximum usable stroke
- Each spring is individually tested for accuracy and consistency
- Backed by Eibach's five-year warranty
Notes
- Ideal for long-travel coilover systems requiring a mid-range spring rate
- Verify 2.50in I.D. compatibility with your coilover hardware
