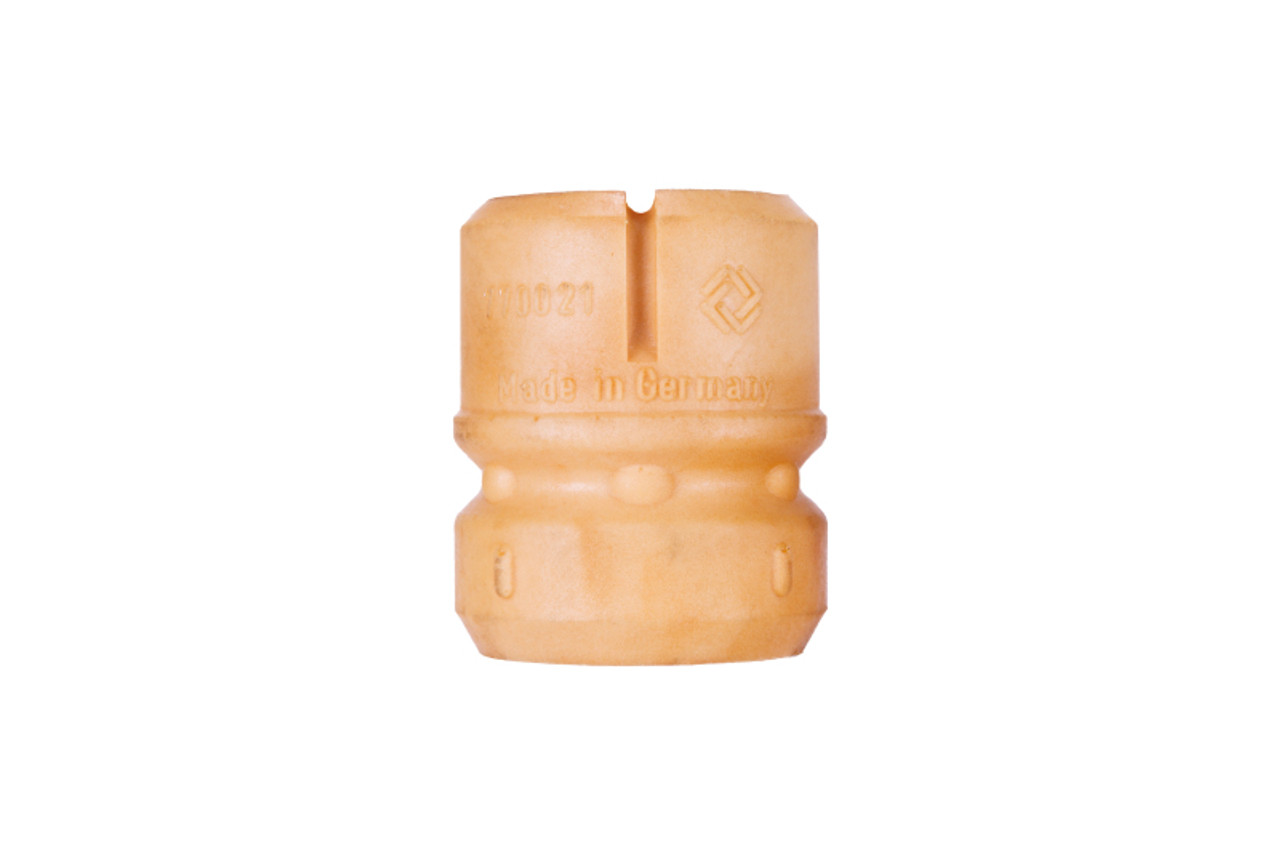

Eibach Elastomeric Bump Stop 0.81in x 2.48in 1172 lbs/in (EBS770021)
Improve suspension control and bottom out performance with the Eibach Elastomeric Bump Stop, engineered for smooth, progressive engagement throughout the full compression range. With a 0.81 inch inside diameter, 2.48 inch length, and a 1172 lbs/in rate, this bump stop is ideal for performance, off road, and custom suspension applications requiring predictable, controlled compression behavior.
Constructed from race proven micro cellular polyurethane elastomer, this bump stop delivers tremendous deflection potential with near zero lateral expansion. Acting as a secondary spring, it stabilizes the chassis under heavy compression while maintaining a progressive, controlled response. Eibach's elastomer bump stop lineup offers a wide range of sizes and rates for precise suspension tuning.
Specifications
- Part Number: EBS770021
- Configuration: Single bump stop
- Length: 2.48 in (63.00 mm)
- Diameter: 0.81 in I.D. (20.00 mm I.D.)
- Rate: 1172 lbs/in (20.97 kg/mm)
Features
- Progressive elastomer bump stop for controlled suspension engagement
- Made from race proven micro cellular polyurethane elastomer
- Acts as a secondary spring for improved bottom out control
- Tremendous deflection potential with near zero lateral expansion
- Progressive compression characteristics for enhanced stability
- Wide range of sizes and rates available for tuning flexibility
- Backed by a one year Eibach warranty
Notes
- Sold individually as a single bump stop
- Designed for passenger cars and light duty class 1 to 3 trucks
- Fitment and integration should be verified for each specific suspension setup
