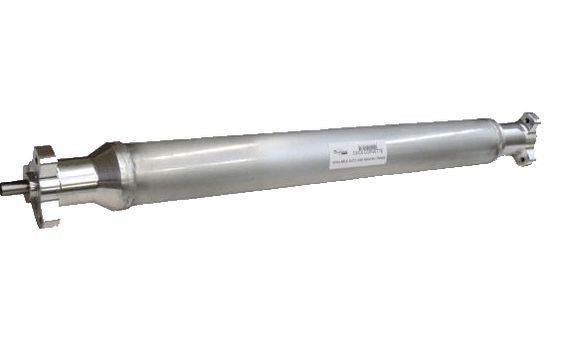

Driveshaft Shop 3.5" Heavy Duty Aluminum Torque Tube Driveshaft (610176) - 2009-2013 Corvette C6 6-Speed Manual / Z06
Upgrade one of the critical components inside your 2009-2013 Chevrolet Corvette C6 torque tube with the Driveshaft Shop 3.5" Heavy Duty Aluminum Driveshaft. Designed for 6-speed manual Corvette applications, including the Z06, the DSS 610176 replaces the factory torque tube driveshaft with a heavy-duty 3.5" x .125" wall 6061-T6 aluminum shaft engineered to eliminate the factory rubber couplers and withstand the demands of high-horsepower applications.
Previously offered under part number GMC6M-2-E, this DSS torque tube driveshaft uses custom-machined ends in place of the factory rubber couplers. By eliminating these couplers and upgrading the shaft itself, DSS addresses two areas that can become problematic under hard acceleration and increased power. The result is a stronger torque tube driveshaft rated for more than 1,000 horsepower and backed by a 1-year warranty.
Heavy Duty 3.5" 6061-T6 Aluminum Construction
The DSS 610176 is manufactured from 3.5" diameter 6061-T6 aluminum tubing with a substantial .125" wall thickness. This heavy-duty construction provides an upgraded foundation for high-powered C6 Corvette applications where the factory torque tube driveshaft can become a limiting component.
DSS specifically developed the larger aluminum shaft to resist the flexing and distortion that can occur with the smaller factory driveshaft during hard acceleration.
Eliminates the Factory Rubber Couplers
One of the most important features of the DSS 610176 is the elimination of the factory rubber couplers. Instead of retaining these rubber drive components, DSS uses its own custom-machined ends as part of the upgraded driveshaft assembly.
In high-horsepower applications, distortion or failure of the factory rubber couplers can become a concern. Eliminating them removes these components from the torque transfer path and provides a more performance-focused solution for modified Corvette applications.
Designed to Prevent Driveshaft Distortion
According to DSS, the factory Corvette torque tube driveshaft uses a smaller-diameter tube and was produced in two different factory versions. Under hard acceleration, the factory shaft can flex and actually bend, placing additional stress on the rubber drive couplers.
Repeated shaft movement can cause the factory rubber couplers to wear prematurely. The larger 3.5" x .125" wall aluminum construction of the DSS driveshaft is designed to prevent the distortion and breakage associated with the factory configuration.
Custom-Machined DSS Ends
DSS equips the 610176 with custom-machined ends specifically designed around its heavy-duty torque tube driveshaft configuration. These components allow the upgraded shaft to eliminate the factory rubber couplers while creating a complete high-performance assembly.
The custom-machined end design works together with the larger 6061-T6 aluminum tube to provide a stronger solution for transferring increased power through the Corvette torque tube.
1000HP+ Rated
The Driveshaft Shop rates the 610176 for more than 1,000 horsepower, making it suitable for substantially modified C6 Corvette applications. Whether the additional output comes from extensive naturally aspirated modifications or a high-horsepower combination, the heavy-duty shaft is designed to withstand significantly greater drivetrain demands.
The combination of the 3.5" diameter tube, .125" wall thickness, 6061-T6 aluminum construction, and custom-machined coupler-eliminating ends creates a torque tube driveshaft engineered specifically around increased strength and power capability.
Designed for 6-Speed Manual C6 Corvette Applications
The DSS 610176 is designed for supported 2009-2013 Chevrolet Corvette C6 models equipped with a 6-speed manual transmission. This application also includes the C6 Z06, providing a heavy-duty torque tube driveshaft option for both standard manual C6 and Z06 applications within the supported model years.
This version uses the 12mm bolt configuration, making bolt size an important consideration when confirming the correct DSS torque tube driveshaft for your Corvette.
Custom Length Capability
In addition to standard C5 and C6 Corvette applications, DSS notes that its heavy-duty torque tube driveshaft design can also be manufactured in custom lengths. This provides additional flexibility for specialized drivetrain combinations where the standard driveshaft dimensions are not appropriate.
1-Year Warranty
The Driveshaft Shop backs the 610176 Heavy Duty Aluminum Torque Tube Driveshaft with a 1-year warranty, providing additional confidence in this high-horsepower Corvette driveline upgrade.
Features
- Driveshaft Shop heavy-duty torque tube driveshaft
- Designed for supported 2009-2013 Chevrolet Corvette C6 6-speed manual applications
- Includes supported C6 Z06 applications
- Previous part number GMC6M-2-E
- 3.5" diameter aluminum driveshaft
- .125" wall thickness
- 6061-T6 aluminum construction
- Uses DSS custom-machined ends
- Eliminates the factory rubber couplers
- Designed to prevent the shaft distortion and breakage associated with the factory configuration
- Helps eliminate premature wear and failure of factory-style rubber drive couplers
- Larger and heavier-duty tube design than the factory driveshaft
- Designed for demanding high-horsepower applications
- Rated for more than 1,000 horsepower
- 12mm bolt configuration
- Available for C5 and C6 applications in the DSS product line
- Can also be manufactured in custom lengths
- 1-year warranty
Fitment
- 2009 Chevrolet Corvette C6 - 6-Speed Manual Transmission - 12mm Bolts
- 2009 Chevrolet Corvette Z06 - 6-Speed Manual Transmission - 12mm Bolts
- 2010 Chevrolet Corvette C6 - 6-Speed Manual Transmission - 12mm Bolts
- 2010 Chevrolet Corvette Z06 - 6-Speed Manual Transmission - 12mm Bolts
- 2011 Chevrolet Corvette C6 - 6-Speed Manual Transmission - 12mm Bolts
- 2011 Chevrolet Corvette Z06 - 6-Speed Manual Transmission - 12mm Bolts
- 2012 Chevrolet Corvette C6 - 6-Speed Manual Transmission - 12mm Bolts
- 2012 Chevrolet Corvette Z06 - 6-Speed Manual Transmission - 12mm Bolts
- 2013 Chevrolet Corvette C6 - 6-Speed Manual Transmission - 12mm Bolts
- 2013 Chevrolet Corvette Z06 - 6-Speed Manual Transmission - 12mm Bolts
Fitment Notes
- Designed for supported 2009-2013 Chevrolet Corvette C6 models equipped with a 6-speed manual transmission.
- Includes supported 2009-2013 Corvette Z06 applications.
- This version is designed for the 12mm bolt configuration.
- Previous Driveshaft Shop part number: GMC6M-2-E.
- Eliminates the factory rubber driveshaft couplers.
- Rated for more than 1,000 horsepower.
- Backed by a 1-year warranty.
