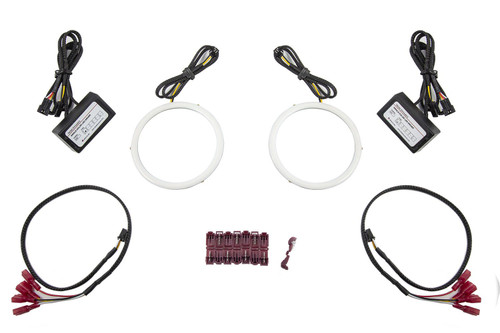

Diode Dynamics 185mm Switchback LED Halos Pair (2018+ Wrangler JL) DD2241

Image is a representation of this item.
Actual item may vary.

Item#:
diode-dd2241
Price: $150.00
(No reviews yet) Write a Review
HDHalo Technology These HD LED halo rings for the 2018+ Jeep JL Wrangler have been designed from the ground-up to be absolutely the brightest, most reliable halos physically possible. Each halo is populated with a large number of high-density (HD) LEDs, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

Wiring All wires have a durable braided wire covering. The LED has a 20-inch wire with female JST type connector. This connector may be de-pinned in order to run wires through small holes during installation. Both the input and output wire on the driver are also 20 inches each. A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps. You will have plenty of room to run wires anywhere you'd like. Also for convenience, we added integrated mounting tabs for easy installation.

PWM Control Aside from the high brightness and perfectly uniform output, one great feature of these halos is the PWM dimming control. The included waterproof drivers have four wires, to be connected to any 12V signals as follows:


- White: White Low Power, 50% brightness

- Red: White High Power, 100% brightness

- Yellow: Amber Signal, 200% brightness flashing (dims if powered more than two seconds)

- Black: Ground


All input wires activate the halos, at different brightness levels. Your order will ship with "low" priority drivers. This means that if both "low" and "high" power inputs are powered, the LED will light up in white, with low power level. This is convenient for connecting the red wire to a parking light or DRL signal, for use during the day as a high-power DRL. Then, if the white wire is connected to the headlamp power, they will dim down at night. If the yellow wire is powered at any time, the halo will light up in amber color, intended for signaling. If you'd like to use amber all the time, no problem! It will dim automatically if powered for more than two seconds, to keep it safe.

This entire setup allows you to connect the halo directly to your headlamp, without any external controllers needed. Of course, this is completely optional. You can just use one or two of the input wires if you'd like.

Experience After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.


Features:

• Computer-designed LED Halos for 2018+ Jeep JL Wrangler with halogen headlights

• Proprietary durable phosphor coating, for uniform solid appearance

• Extremely bright, high-density LEDs that are visible even in direct sunlight

• Integrated mounting tabs for easy installation

• Made in USA



Fitment

  • 2018 Jeep Wrangler JL
  • 2019 Jeep Wrangler JL
  • 2020 Jeep Wrangler JL
