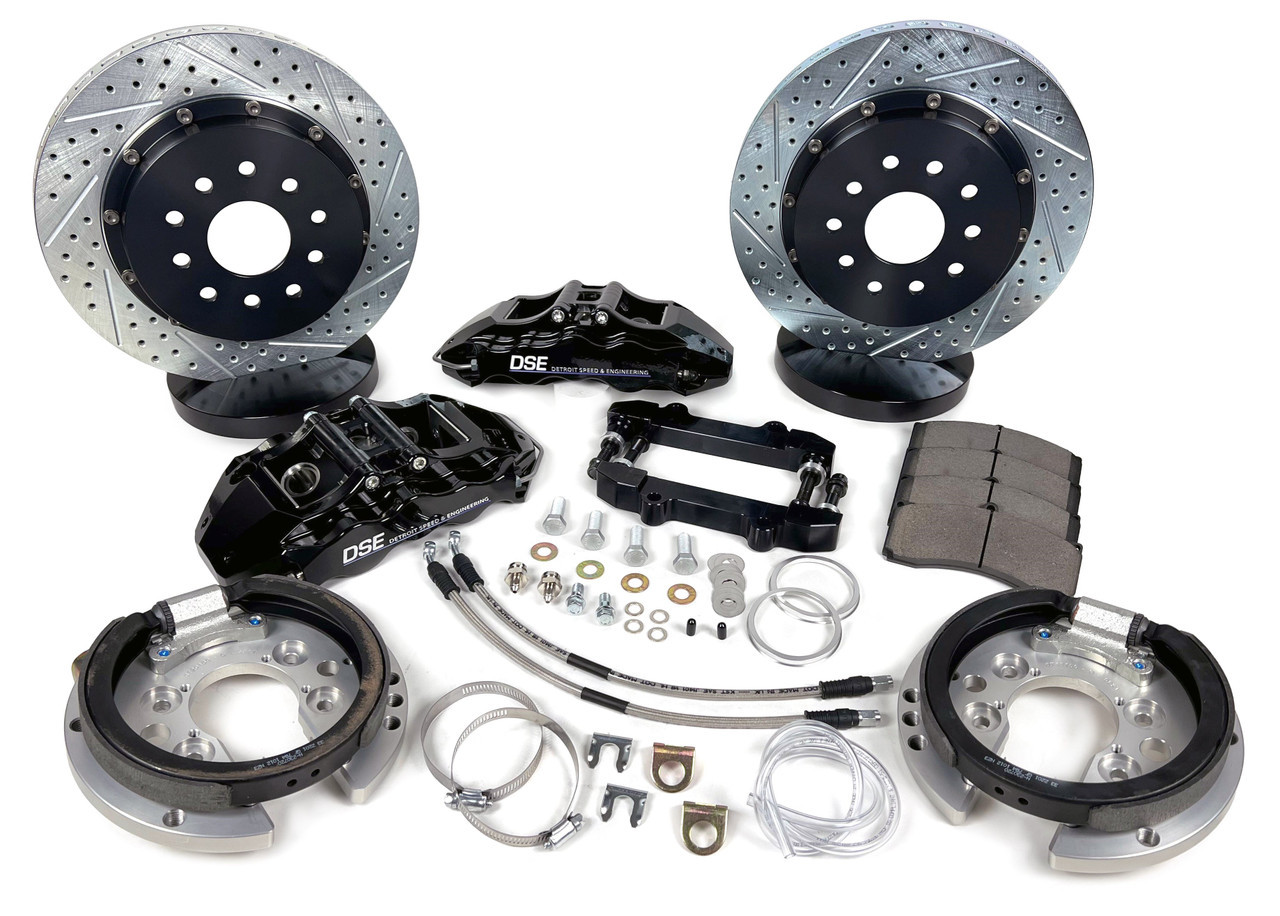

DSE 14-Inch Rear Extreme+ Brake System - Torino Flange - DSE Caliper - 4262097DSE
Step up the stopping capability of your Ford 9-inch rear end with the Detroit Speed 4262097DSE 14-Inch Rear Extreme+ Brake System. Built for rear ends using the Ford 9-inch Torino bearing flange, also known as the late big or new style big Ford flange, this premium rear disc brake package combines massive 14-inch 2-piece rotors with powerful 6-piston monoblock 6S calipers. It is a serious braking package for high-performance builds that demand increased brake capacity along with high-quality, competition-inspired components.
The Extreme+ system pairs its 6S calipers with 14-inch 2-piece slotted, drilled and zinc-plated rotors. The rotors come pre-assembled with NAS high-grade stainless hardware, while the calipers feature D.O.T.-compliant dust and weather seals and use the popular D1247 brake pad shape, also known as DR11. The backing plate serves as both the caliper mount and housing for a modern one-piece park brake shoe assembly. Stainless braided brake hoses and system hardware are also included, giving you a comprehensive rear brake package engineered to fit most 18-inch or larger wheels.
Specifications
- Part Number: 4262097DSE
- Manufacturer: Detroit Speed
- Product Type: Rear Brake Kit
- Series: Extreme+
- Position: Rear
- Rear End Type: Ford 9-Inch
- Bearing Flange: Torino, Also Known as Late Big or New Style Big Ford
- Rotor Diameter: 14 Inches
- Rotor Construction: 2-Piece
- Rotor Design: Slotted and Drilled
- Rotor Finish: Zinc Plated
- Rotor Hardware: NAS High-Grade Stainless Hardware
- Rotor Assemblies: Pre-Assembled
- Caliper: 6S Monoblock
- Caliper Pistons: 6
- Caliper Seals: D.O.T.-Compliant Dust and Weather Seals
- Brake Pad Type: D1247, Also Known as DR11
- Bolt Circle: 5 x 4.5 Inches and 5 x 4.75 Inches
- Minimum Wheel Size: 18 Inches
- Park Brake: Modern One-Piece Park Brake Shoe Assembly
- Park Brake Cables: Not Included
- Stainless Braided Brake Hoses: Included
- Calipers: Included
- Rotor and Hat Assemblies: Included
- Brackets: Included
- System Hardware: Included
- Color: Black
- Emission Code: 4
Features
- Extreme+ rear disc brake system designed for Ford 9-inch rear ends with Torino bearing ends
- Large 14-inch 2-piece rotors provide substantial braking capacity for high-performance applications
- Slotted and drilled rotor surfaces are paired with a zinc-plated finish
- Rotors arrive pre-assembled with NAS high-grade stainless hardware
- 6S monoblock calipers feature six pistons for high-performance rear braking
- D.O.T.-compliant dust and weather seals help protect the calipers in street-driven applications
- Uses the popular D1247 brake pad shape, also known as DR11
- Backing plate serves as both the caliper mounting point and housing for the park brake assembly
- Modern one-piece park brake shoe assembly is integrated into the system
- Compatible with 5 x 4.5-inch and 5 x 4.75-inch bolt circles
- Stainless braided brake hoses are included
- Complete package includes calipers, rotor and hat assemblies, brackets, park brake assembly, stainless braided brake hoses and system hardware
- Designed to fit most 18-inch or larger wheels
Fitment
- Ford 9-Inch Rear End with Torino Bearing Flange
- Ford 9-Inch Rear End with Late Big Ford Bearing Flange
- Ford 9-Inch Rear End with New Style Big Ford Bearing Flange
- Applications Using a 5 x 4.5-Inch Bolt Circle
- Applications Using a 5 x 4.75-Inch Bolt Circle
Fitment Notes
Detroit Speed specifies the 4262097DSE for Ford 9-inch rear ends using the Torino bearing flange, also known as the late big or new style big Ford bearing end. The system supports 5 x 4.5-inch and 5 x 4.75-inch bolt circles and is designed to fit most 18-inch or larger wheels. Wheel clearance should be verified for the specific wheel being used. Park brake cables are not included.
FAQs
What rear end fits the DSE 4262097DSE Extreme+ Brake System?
The 4262097DSE is designed for Ford 9-inch rear ends using the Torino bearing flange, which is also referred to as the late big or new style big Ford bearing end. It supports both 5 x 4.5-inch and 5 x 4.75-inch bolt circles.
What brakes are included with DSE 4262097DSE?
The system includes 6-piston monoblock 6S calipers, 14-inch 2-piece rotor and hat assemblies, brackets, a park brake assembly, stainless braided brake hoses and system hardware. The calipers use the popular D1247 brake pad shape, also known as DR11.
Does the DSE 4262097DSE include the park brake cables?
No. A modern one-piece park brake shoe assembly is included with the brake system, but Detroit Speed specifically states that the park brake cables are not included.
Get Your Detroit Speed Components from Beefcake Racing
Build your Ford 9-inch rear end with serious stopping hardware using the Detroit Speed 4262097DSE 14-Inch Rear Extreme+ Brake System from Beefcake Racing. If you need help confirming bearing flange compatibility, wheel clearance or other brake components for your build, email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
