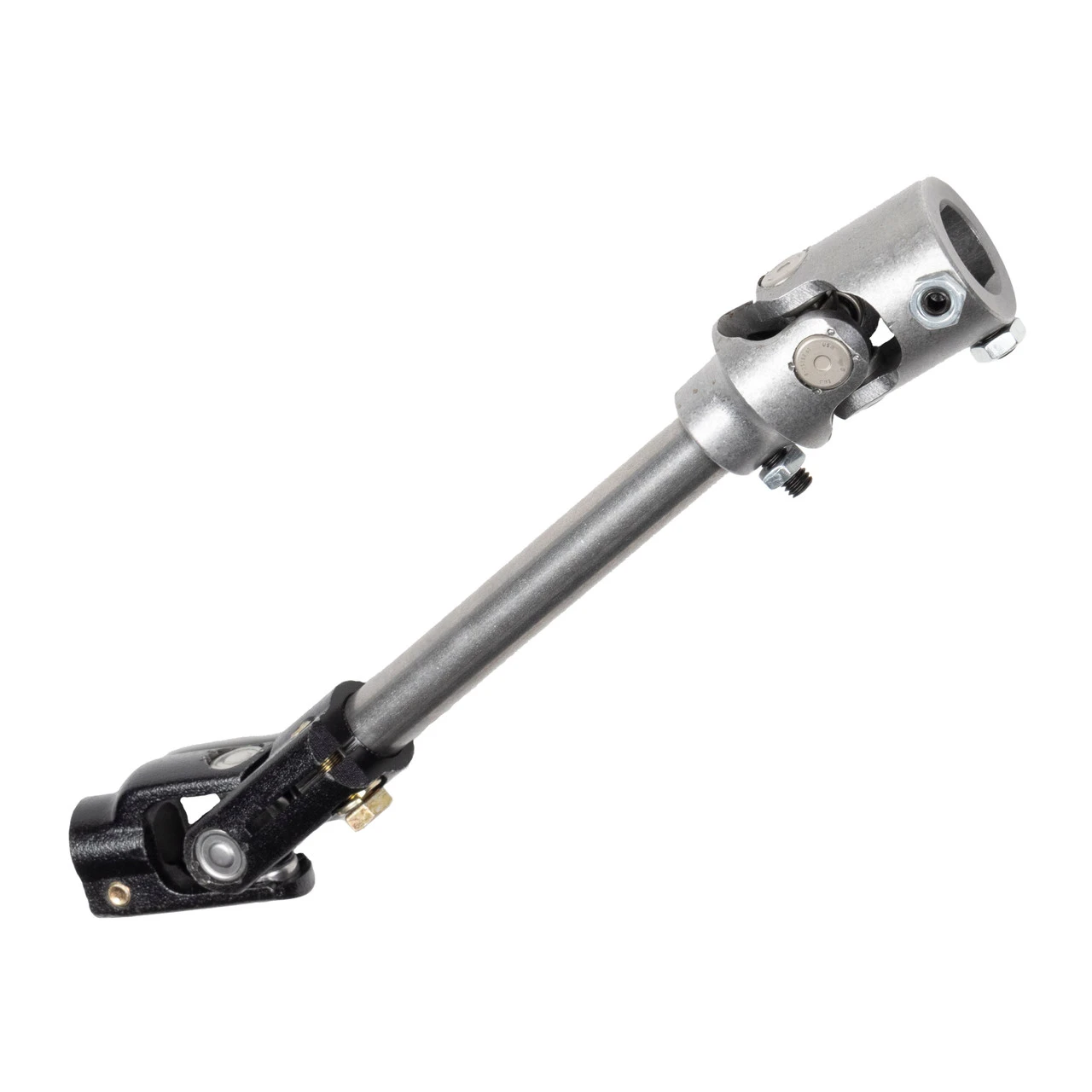

DSE Steering Shaft - OEM Column - 1-Inch DD Output (1993 - 2002 Chevrolet Camaro / Pontiac Firebird with DSE or OEM LS Rack & Pinion) - 092537DS
Tighten up the steering connection in your fourth-generation F-Body with the Detroit Speed 092537DS Steering Shaft Kit. Designed for 1993 - 2002 Chevrolet Camaro and Pontiac Firebird applications using the OEM steering column with a 1-inch DD output and a Detroit Speed or OEM LS rack and pinion, this kit replaces the factory rag joint connection for improved steering feel. It is also an ideal solution when converting an original LT1 or V6 Camaro or Firebird to an LS engine and compatible rack-and-pinion steering configuration.
Detroit Speed engineers its steering coupler U-joints using modern CNC machining technology and high-quality steel. Staked needle-bearing caps, similar to those used in OEM automotive U-joints, help prevent loosening and adjustment issues. Part number 092537DS includes a 7-1/2-inch-long steering shaft with 3/4-inch-36 splines on both ends, a 1-inch DD x 3/4-inch-36 column U-joint and the steering rack to 3/4-inch-36 U-joint required to complete the connection. The result is a purpose-built steering solution that eliminates a worn rag joint while providing the solid connection performance enthusiasts want from an upgraded F-Body steering system.
Specifications
- Part Number: 092537DS
- Manufacturer: Detroit Speed
- Product Type: Steering Shaft Kit
- Finish: Bare Steel / Natural Finish
- Steering Column: OEM / Factory
- Column Output Shaft: 1-inch DD
- Rack and Pinion Compatibility: Detroit Speed or OEM LS Rack and Pinion
- Steering Shaft: 3/4-inch-36 spline on both ends
- Steering Shaft Length: 7-1/2 inches
- Column-Side U-Joint: 1-inch DD x 3/4-inch-36
- Rack-Side U-Joint: Steering rack to 3/4-inch-36
- U-Joint Material: Steel
- Emission Code: 4
Features
- Designed for the factory steering column with a 1-inch DD output
- Compatible with Detroit Speed or OEM LS rack-and-pinion steering
- Replaces the factory rag joint for improved steering feel
- Ideal for LS engine conversions in 1993 - 2002 LT1 and V6 Camaro / Firebird applications
- Includes a 7-1/2-inch-long steering shaft with 3/4-inch-36 splines on both ends
- Includes a 1-inch DD x 3/4-inch-36 column U-joint
- Includes the steering rack to 3/4-inch-36 U-joint
- Steering coupler U-joints utilize modern CNC machining technology
- U-joints are manufactured from high-quality steel
- Staked needle-bearing caps help prevent loosening and adjustment malfunction
- Natural bare-steel finish
Installation Notes
The 092537DS is designed around the factory 1-inch DD steering-column output and a Detroit Speed or OEM LS rack and pinion. Detroit Speed's installation instructions identify the kit specifically for 1993 - 1999 V6 and 1993 - 1997 LT1 Camaro / Firebird applications when installing the Detroit Speed rack, while the current Detroit Speed product listing identifies overall compatibility as 1993 - 2002 Camaro / Firebird with the OEM column and DSE or OEM LS rack and pinion. Verify the steering column output and rack configuration before installation.
Fitment
- 1993 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 1993 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
- 1994 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 1994 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
- 1995 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 1995 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
- 1996 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 1996 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
- 1997 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 1997 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
- 1998 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 1998 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
- 1999 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 1999 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
- 2000 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 2000 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
- 2001 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 2001 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
- 2002 Chevrolet Camaro with OEM Column and DSE or OEM LS Rack and Pinion
- 2002 Pontiac Firebird with OEM Column and DSE or OEM LS Rack and Pinion
FAQs
What does the DSE 092537DS replace?
The 092537DS replaces the factory rag joint steering connection, providing a more direct connection designed to improve steering feel.
Is the DSE 092537DS suitable for an LS swap?
Yes. Detroit Speed specifically identifies this steering shaft as ideal for LS engine conversions in 1993 - 2002 LT1 and V6 Camaro / Firebird applications when used with the appropriate DSE or OEM LS rack-and-pinion configuration.
What steering column output does the 092537DS require?
Detroit Speed specifies the factory steering column with a 1-inch DD output. The included column-side U-joint connects the 1-inch DD output to the 3/4-inch-36 steering shaft.
Get Your Detroit Speed Steering Components from Beefcake Racing
Upgrade your F-Body steering with proven Detroit Speed components from Beefcake Racing. Whether you're replacing a worn factory rag joint, completing an LS conversion or building a more responsive Camaro or Firebird, our team can help you select the correct components for your combination. Questions about the DSE 092537DS Steering Shaft Kit? Email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
