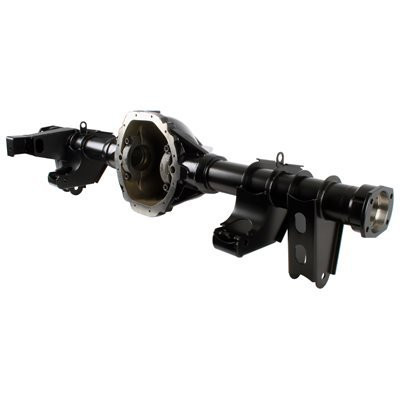

DSE GM 12-Bolt QuadraLink Narrowed Housing - Torino Flange - Satin Black - (1962 - 1967 Chevy II) - 075510DS
Give your 1962 - 1967 Chevy II a serious rear axle foundation with the Detroit Speed GM 12-Bolt QuadraLink Narrowed Housing. Part number 075510DS combines proven GM 12-bolt architecture with a narrowed housing configuration, billet Torino axle ends, and application-specific QuadraLink suspension mounting. Instead of starting with a generic housing and fabricating the suspension brackets separately, this purpose-built housing provides a strong foundation for a high-performance street, Pro Touring, autocross, or track-oriented Chevy II.
Detroit Speed constructs the 075510DS with a heavy-duty housing and TIG-welded 3-inch axle tubes featuring .218-inch wall thickness. The QuadraLink suspension brackets are TIG welded directly to the housing, while billet Torino axle ends accept compatible 2.5-inch-offset rear brake packages from AP, Baer, or Wilwood. An axle vent is included, and this version arrives powdercoated satin black for a durable, finished appearance. Detroit Speed supplies 075510DS as the axle housing only, allowing the remaining axle, differential, and brake components to be selected for the requirements of your build.
Specifications
- Part Number: 075510DS
- Product Type: Axle Housing
- Axle Style: GM 12-Bolt
- Carrier Style: GM 12-Bolt
- Suspension Style: QuadraLink
- Axle End Style: Torino
- Housing Construction: Heavy-Duty
- Axle Tube Diameter: 3 Inches
- Axle Tube Wall Thickness: .218 Inch
- Axle Tubes: TIG Welded
- Axle Ends: Billet Torino
- QuadraLink Brackets: TIG Welded
- Rear Brake Package Offset: 2.5 Inches
- Aftermarket Brake Compatibility: AP, Baer, or Wilwood
- Axle Vent: Included
- Finish: Powdercoated Satin Black
- Product Includes: Axle Housing Only
- Made in USA: Yes
Features
- Narrowed GM 12-bolt housing engineered for 1962 - 1967 Chevy II applications
- Designed specifically for the Detroit Speed QuadraLink rear suspension system
- Heavy-duty housing construction for performance-oriented builds
- TIG-welded 3-inch axle tubes with .218-inch wall thickness
- Billet Torino axle ends for a strong performance-focused configuration
- QuadraLink suspension brackets TIG welded directly to the housing
- Accepts compatible 2.5-inch-offset AP, Baer, or Wilwood rear brake packages
- Axle vent included
- Durable satin black powdercoat finish
- Made in the USA
Fitment
- 1962 Chevrolet Chevy II
- 1963 Chevrolet Chevy II
- 1964 Chevrolet Chevy II
- 1965 Chevrolet Chevy II
- 1966 Chevrolet Chevy II
- 1967 Chevrolet Chevy II
Fitment Note: Part number 075510DS is designed for 1962 - 1967 Chevrolet Chevy II applications using the Detroit Speed QuadraLink rear suspension system. This product includes the axle housing only. Additional components are required to complete the rear axle assembly.
FAQs
Is DSE 075510DS a complete GM 12-bolt rear axle assembly?
No. Part number 075510DS includes the axle housing only. Additional axle, differential, brake, and related components are required to complete the rear axle assembly.
What rear brakes are compatible with DSE 075510DS?
Detroit Speed specifies that the billet Torino ends accept compatible 2.5-inch-offset rear brake packages from AP, Baer, or Wilwood.
Are the QuadraLink brackets already installed on DSE 075510DS?
Yes. Detroit Speed TIG welds the QuadraLink suspension brackets directly to the housing, providing an application-specific foundation for the Detroit Speed QuadraLink rear suspension system.
