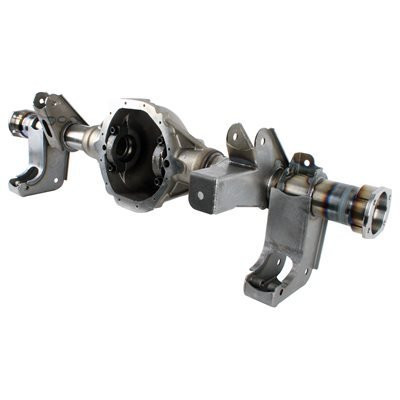

DSE GM 12-Bolt QuadraLink Narrowed Housing - Torino Flange - Bare - (1962 - 1967 Chevy II) - 075010DS
Build your 1962 - 1967 Chevy II around a rear axle housing engineered specifically for the Detroit Speed QuadraLink rear suspension system. Detroit Speed 075010DS combines proven GM 12-bolt architecture with a narrowed configuration, billet Torino axle ends, and application-specific QuadraLink mounting. Rather than starting with a generic housing and fabricating the suspension brackets separately, this purpose-built housing gives serious street, Pro Touring, autocross, and track builds a strong foundation for a properly integrated rear suspension and axle package.
Detroit Speed constructs the 075010DS with a heavy-duty housing and TIG-welded 3-inch axle tubes featuring .218-inch wall thickness. The billet Torino ends accept compatible 2.5-inch-offset rear brake packages from AP, Baer, or Wilwood, while the QuadraLink suspension brackets are TIG welded directly to the housing. An axle vent is also included. This version is supplied in a bare finish, allowing you to choose the final coating or finish that best suits the rest of your build. The 075010DS is the axle housing only, so additional components are required to complete the rear axle assembly.
Specifications
- Part Number: 075010DS
- Product Type: Axle Housing
- Axle Style: GM 12-Bolt
- Carrier Style: GM 12-Bolt
- Suspension Style: QuadraLink
- Axle End Style: Torino
- Housing Construction: Heavy-Duty
- Axle Tube Diameter: 3 Inches
- Axle Tube Wall Thickness: .218 Inch
- Axle Tubes: TIG Welded
- Axle Ends: Billet Torino
- QuadraLink Brackets: TIG Welded
- Rear Brake Package Offset: 2.5 Inches
- Aftermarket Brake Compatibility: AP, Baer, or Wilwood
- Axle Vent: Included
- Finish: Bare
- Product Includes: Axle Housing Only
- Made in USA: Yes
Features
- Narrowed GM 12-bolt housing engineered for 1962 - 1967 Chevy II applications
- Designed specifically for the Detroit Speed QuadraLink rear suspension system
- Heavy-duty housing construction for performance-oriented builds
- TIG-welded 3-inch axle tubes with .218-inch wall thickness
- Billet Torino axle ends
- QuadraLink suspension brackets TIG welded directly to the housing
- Accepts compatible 2.5-inch-offset AP, Baer, or Wilwood rear brake packages
- Axle vent included
- Bare finish allows the builder to choose the final coating or finish
- Made in the USA
Fitment
- 1962 Chevrolet Chevy II
- 1963 Chevrolet Chevy II
- 1964 Chevrolet Chevy II
- 1965 Chevrolet Chevy II
- 1966 Chevrolet Chevy II
- 1967 Chevrolet Chevy II
Fitment Note: Part number 075010DS is designed for 1962 - 1967 Chevrolet Chevy II applications using the Detroit Speed QuadraLink rear suspension system. This product includes the axle housing only. Additional components are required to complete the rear axle assembly.
FAQs
Is DSE 075010DS a complete GM 12-bolt rear axle assembly?
No. Detroit Speed specifies 075010DS as the axle housing only. Additional components are required to complete the rear axle assembly.
What rear brakes are compatible with DSE 075010DS?
Detroit Speed specifies that the billet Torino ends accept compatible 2.5-inch-offset rear brake packages from AP, Baer, or Wilwood.
Are the QuadraLink brackets already installed on DSE 075010DS?
Yes. Detroit Speed TIG welds the QuadraLink suspension brackets directly to the housing, giving your 1962 - 1967 Chevy II an application-specific foundation for the QuadraLink rear suspension system.
