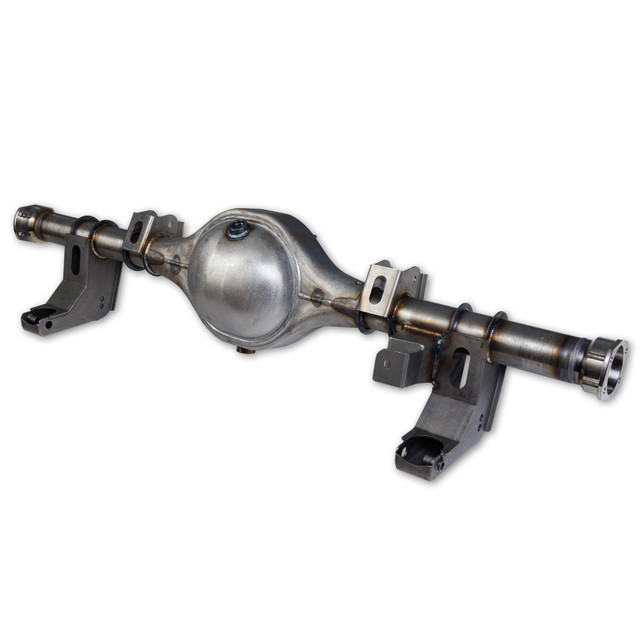

DSE Ford 9-Inch QuadraLink Housing - C6 Floater - Bare - 1967-1972 C10 / C15 - 073041DS
Build your 1967-1972 Chevrolet C10 or GMC C15 around a rear axle designed for serious handling, braking, and power with the Detroit Speed Ford 9-inch QuadraLink C6 Floater Housing. Part number 073041DS combines the strength and versatility of a Ford 9-inch housing with Detroit Speed's full-floater design and application-specific QuadraLink suspension mounting. The track width is widened to allow the wheel and tire to be centered when using a 0-inch-offset wheel, making this housing a purpose-built foundation for a high-performance street, Pro Touring, autocross, or track-focused truck.
Detroit Speed builds the 073041DS with TIG-welded 3-inch axle tubes featuring .218-inch wall thickness and TIG-welded QuadraLink brackets to save fabrication time when installing the Detroit Speed QuadraLink rear suspension. The C6 full-floater configuration allows ABS use and accepts factory C6 rear brakes as well as compatible Baer and Wilwood aftermarket brake packages. The housing also supports either a Detroit Speed FN988 or conventional Ford 9-inch center section. An axle vent plus fill and drain plugs are included, while the bare finish gives you the freedom to choose the final coating for your truck.
Specifications
- Part Number: 073041DS
- Product Type: Axle Housing
- Axle Style: Ford 9-Inch
- Carrier Style: FN988 or Ford 9-Inch
- Suspension Style: QuadraLink
- Axle End Style: C6 Full Floater
- Axle Tube Diameter: 3 Inches
- Axle Tube Wall Thickness: .218 Inch
- Axle Tubes: TIG Welded
- QuadraLink Brackets: TIG Welded
- Track Width Configuration: Widened to center the wheel and tire with a 0-inch-offset wheel
- ABS Capability: Yes
- Factory Brake Compatibility: C6 Rear Brakes
- Aftermarket Brake Compatibility: Baer or Wilwood Rear Brake Packages
- Axle Vent: Included
- Fill Plug: Included
- Drain Plug: Included
- Finish: Bare
- Quantity: One Housing
- Made in USA: Yes
Features
- Purpose-built Ford 9-inch C6 full-floater housing for 1967-1972 Chevrolet C10 and GMC C15 trucks
- Designed specifically for the Detroit Speed QuadraLink rear suspension system
- Full-floater configuration provides a performance-focused rear axle foundation for demanding street, autocross, and track builds
- Widened track width allows the wheel and tire to be centered with a 0-inch-offset wheel
- TIG-welded 3-inch axle tubes with .218-inch wall thickness
- QuadraLink suspension brackets TIG welded directly to the housing
- Compatible with Detroit Speed FN988 or conventional Ford 9-inch center sections
- Allows use of ABS
- Accepts factory C6 rear brakes
- Compatible with Baer and Wilwood aftermarket rear brake packages
- Integrated axle vent
- Fill and drain plugs included
- Application-specific housing reduces fabrication required for a QuadraLink rear suspension installation
- Bare finish allows you to choose the final coating for your build
- Made in the USA
Fitment
- 1967 Chevrolet C10
- 1967 GMC C15
- 1968 Chevrolet C10
- 1968 GMC C15
- 1969 Chevrolet C10
- 1969 GMC C15
- 1970 Chevrolet C10
- 1970 GMC C15
- 1971 Chevrolet C10
- 1971 GMC C15
- 1972 Chevrolet C10
- 1972 GMC C15
Fitment Note: Part number 073041DS is designed for 1967-1972 Chevrolet C10 and GMC C15 truck applications using the Detroit Speed QuadraLink rear suspension system. Detroit Speed specifies a widened track width designed to center the wheel and tire when using a 0-inch-offset wheel. This product is the axle housing and requires additional components to complete the rear axle assembly.
FAQs
What center sections are compatible with DSE 073041DS?
Detroit Speed specifies compatibility with either its FN988 center section or a conventional Ford 9-inch center section, giving you flexibility when configuring the rear axle for your build.
What rear brakes can be used with DSE 073041DS?
The C6 floater housing accepts factory C6 rear brakes as well as compatible aftermarket rear brake packages from Baer or Wilwood. Detroit Speed also confirms that the floater housing allows the use of ABS.
Why is the track width widened on DSE 073041DS?
Detroit Speed widens the track width to allow the wheel and tire to be centered when using a 0-inch-offset wheel, providing the wheel positioning intended for this QuadraLink truck application.
