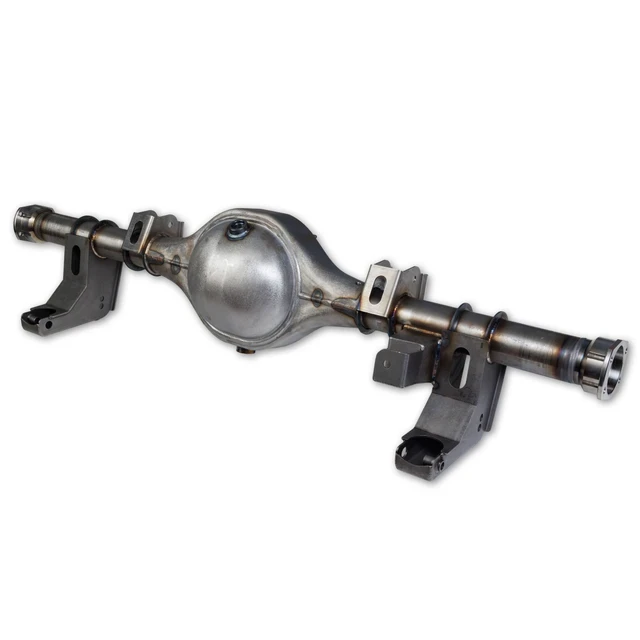

DSE Ford 9-Inch QuadraLink Housing - Torino Flange - Bare - 1967-1972 C10 / C15 - 071041DS
Upgrade the rear axle foundation of your 1967-1972 Chevrolet C10 or GMC C15 with the Detroit Speed Ford 9-inch QuadraLink Housing. Part number 071041DS is engineered specifically to pair with the Detroit Speed QuadraLink rear suspension system, eliminating the need to start with a generic housing and fabricate the suspension mounting points yourself. Detroit Speed also widens the track width to allow the wheel and tire to be centered when using a 0-inch-offset wheel, helping create the stance and wheel positioning these performance truck builds demand.
The 071041DS housing uses heavy-duty construction with TIG-welded 3-inch axle tubes featuring .218-inch wall thickness. The QuadraLink brackets are TIG welded directly to the housing, while Torino-style axle ends provide compatibility with 2.5-inch-offset rear brake packages from Baer or Wilwood. Detroit Speed also incorporates an axle vent plus fill and drain plugs. This version is supplied in a bare finish and gives builders a purpose-built Ford 9-inch foundation for completing a street, Pro Touring, autocross, or track-oriented C10 or C15 rear axle assembly.
Specifications
- Part Number: 071041DS
- Product Type: Axle Housing
- Axle Style: Ford 9-Inch
- Carrier Style: FN988 or Ford 9-Inch
- Suspension Style: QuadraLink
- Axle End Style: Torino
- Axle Tube Diameter: 3 Inches
- Axle Tube Wall Thickness: .218 Inch
- Axle Tubes: TIG Welded
- QuadraLink Brackets: TIG Welded
- Axle Vent: Included
- Fill Plug: Included
- Drain Plug: Included
- Rear Brake Package Offset Compatibility: 2.5 Inches
- Track Width Configuration: Widened for centering the wheel and tire with a 0-inch-offset wheel
- Finish: Bare
- Quantity: One Housing
- Made in USA: Yes
Features
- Purpose-built Ford 9-inch housing for Detroit Speed QuadraLink rear suspension applications
- Designed for 1967-1972 Chevrolet C10 and GMC C15 trucks
- Widened track width allows the wheel and tire to be centered with a 0-inch-offset wheel
- TIG-welded 3-inch axle tubes with .218-inch wall thickness
- QuadraLink suspension brackets TIG welded directly to the housing
- Torino-style axle ends
- Accepts 2.5-inch-offset rear brake packages from Baer or Wilwood
- Compatible with FN988 or conventional Ford 9-inch carrier configurations
- Axle vent included
- Fill and drain plugs included
- Bare finish allows the housing to be finished as desired for the build
- Made in the USA
Fitment
- 1967 Chevrolet C10
- 1967 GMC C15
- 1968 Chevrolet C10
- 1968 GMC C15
- 1969 Chevrolet C10
- 1969 GMC C15
- 1970 Chevrolet C10
- 1970 GMC C15
- 1971 Chevrolet C10
- 1971 GMC C15
- 1972 Chevrolet C10
- 1972 GMC C15
Fitment Note: Part number 071041DS is designed for 1967-1972 Chevrolet C10 and GMC C15 truck applications using the Detroit Speed QuadraLink rear suspension system. Detroit Speed specifies a widened track width that allows the wheel and tire to be centered with a 0-inch-offset wheel.
FAQs
What suspension system is DSE 071041DS designed for?
The 071041DS housing is designed to pair with the Detroit Speed QuadraLink rear suspension system for 1967-1972 Chevrolet C10 and GMC C15 trucks. The required QuadraLink brackets are already TIG welded to the housing.
Can 071041DS use a conventional Ford 9-inch center section?
Yes. Detroit Speed lists the carrier style for 071041DS as compatible with an FN988 or Ford 9-inch configuration, giving builders flexibility when selecting the drivetrain combination.
What rear brakes are compatible with the Torino housing ends?
Detroit Speed specifies that the Torino housing accepts rear brake packages using a 2.5-inch offset from Baer or Wilwood.
