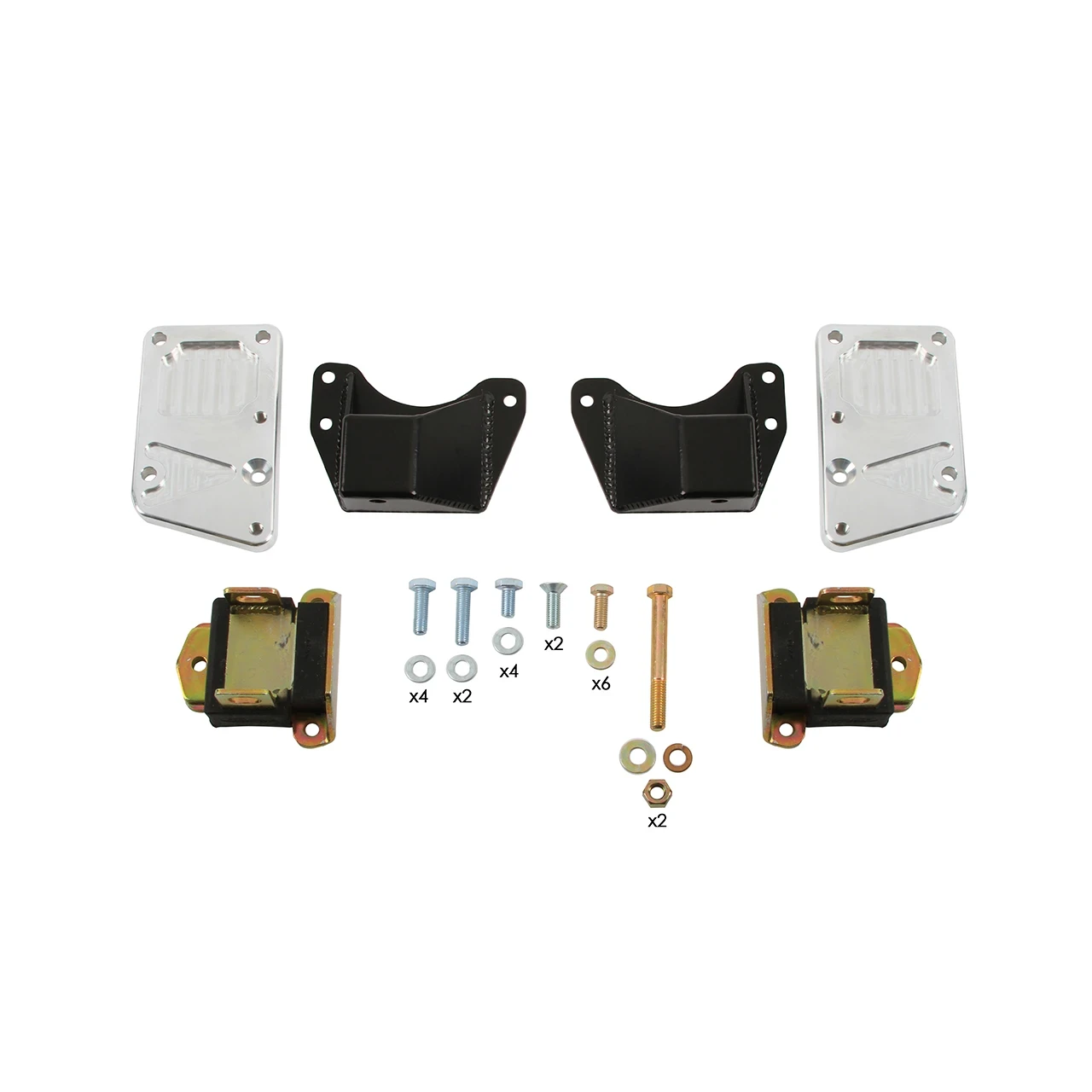

DSE LS Engine Mount Kit - Hydroformed Subframe (060404DS) - 1967-1969 Camaro / Firebird / 1968-1974 GM X-Body
Build your LS-powered classic GM around the engine position Detroit Speed engineered for its Hydroformed Subframe with the DSE LS Engine Mount Kit. Part number 060404DS is designed for 1967-1969 Chevrolet Camaro, 1967-1969 Pontiac Firebird, and 1968-1974 GM X-Body applications equipped with a Detroit Speed Hydroformed Subframe and GM LS engine. Unlike an engine mount package that retains the original small-block location, 060404DS positions the LS engine 1.5 inches rearward from the stock small-block position.
That specific engine location is an important part of the complete Detroit Speed LS installation package. Detroit Speed specifies a C6 Corvette LS2 or LS3 oil pan, GM part number 12624617, on the current 060404DS product page and requires this engine mount kit when using DSE 061001DS LS headers with the Hydroformed Subframe. Current Detroit Speed subframe documentation also identifies additional compatible oil-pan configurations for certain LS engines, so the complete engine, oil pan, header, accessory drive, and subframe combination should be verified when planning the swap.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 060404DS
- Product Type: LS Engine Mount Kit
- Engine Type: GM LS
- Subframe: Detroit Speed Hydroformed Subframe
- Application: 1967-1969 Chevrolet Camaro / 1967-1969 Pontiac Firebird / 1968-1974 GM X-Body
- Engine Position: 1.5 inches rearward from stock small-block location
- Current Product Page Oil Pan Requirement: C6 Corvette LS2 or LS3 oil pan, GM part number 12624617
- DSE Header Compatibility: Designed for use with Detroit Speed 061001DS LS headers
Features
- Purpose-built LS engine mounting solution for the Detroit Speed Hydroformed Subframe
- Designed for GM LS engine installations
- Fits compatible 1967-1969 Chevrolet Camaro and Pontiac Firebird applications
- Fits compatible 1968-1974 GM X-Body applications
- Positions the LS engine 1.5 inches rearward from the stock small-block engine location
- Application-specific design eliminates the guesswork of adapting a generic engine mounting solution to the DSE Hydroformed Subframe
- Current Detroit Speed product information specifies the C6 Corvette LS2 or LS3 oil pan, GM part number 12624617
- Required engine mount kit when using Detroit Speed 061001DS LS headers with the compatible DSE Hydroformed Subframe
- Engine position and component compatibility are engineered around the complete Detroit Speed LS installation
Fitment
- 1967 Chevrolet Camaro with DSE Hydroformed Subframe and GM LS engine
- 1967 Pontiac Firebird with DSE Hydroformed Subframe and GM LS engine
- 1968 Chevrolet Camaro with DSE Hydroformed Subframe and GM LS engine
- 1968 Pontiac Firebird with DSE Hydroformed Subframe and GM LS engine
- 1968 GM X-Body with DSE Hydroformed Subframe and GM LS engine
- 1969 Chevrolet Camaro with DSE Hydroformed Subframe and GM LS engine
- 1969 Pontiac Firebird with DSE Hydroformed Subframe and GM LS engine
- 1969 GM X-Body with DSE Hydroformed Subframe and GM LS engine
- 1970 GM X-Body with DSE Hydroformed Subframe and GM LS engine
- 1971 GM X-Body with DSE Hydroformed Subframe and GM LS engine
- 1972 GM X-Body with DSE Hydroformed Subframe and GM LS engine
- 1973 GM X-Body with DSE Hydroformed Subframe and GM LS engine
- 1974 GM X-Body with DSE Hydroformed Subframe and GM LS engine
Fitment Note: Detroit Speed 060404DS is specifically designed for GM LS engines installed with the Detroit Speed Hydroformed Subframe and moves the engine 1.5 inches rearward from the stock small-block location. Detroit Speed specifies the C6 Corvette LS2 or LS3 oil pan, GM part number 12624617, on the current product page. Current DSE subframe documentation lists additional oil-pan configurations for certain LS engines. Detroit Speed 061001DS LS headers require the 060404DS engine mount kit. Detroit Speed also notes that the A/C compressor must be relocated to the top of the engine to clear the crossmember in the documented LS installation.
FAQs
Where does Detroit Speed 060404DS position the LS engine?
Detroit Speed 060404DS positions the GM LS engine 1.5 inches rearward from the stock small-block engine location when installed with the compatible DSE Hydroformed Subframe.
What oil pan does Detroit Speed specify for 060404DS?
The current Detroit Speed 060404DS product page specifies a C6 Corvette LS2 or LS3 oil pan, GM part number 12624617. Detroit Speed's current subframe documentation also identifies additional oil-pan options for certain LS engine combinations, so verify the exact engine and oil-pan combination before ordering.
Can I use Detroit Speed 061001DS headers with 060404DS?
Yes. Detroit Speed specifically requires engine mount kit 060404DS when installing its 061001DS stainless steel LS headers with the compatible DSE Hydroformed Subframe.
