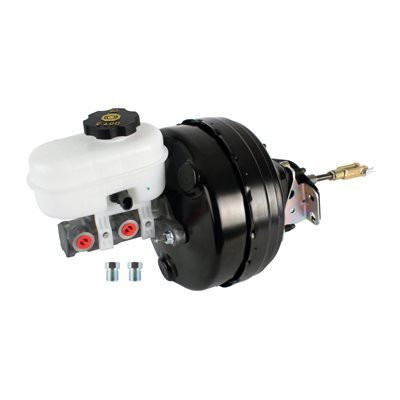

DSE Brake Booster & Master Cylinder Kit (050107DS) - 1964-1967 GM A-Body
Bring a more modern, performance-oriented brake pedal feel to your classic GM A-Body with the Detroit Speed Brake Booster & Master Cylinder Kit. Part number 050107DS is engineered for 1964-1967 GM A-Body applications and combines the major power brake components into a direct bolt-on package. Detroit Speed pairs a compact 9 inch dual-diaphragm brake booster with a 1 inch bore aluminum master cylinder and reservoir, giving builders a matched solution designed to work with stock or aftermarket brake systems.
The 050107DS kit goes beyond the booster and master cylinder by supplying the application-specific components needed to complete the installation. Detroit Speed includes the booster bracket set, brake booster pushrod, two master cylinder fittings, firewall seal and seal plate, pedal clevis components, installation hardware, and instructions. The booster requires a minimum of 10-12 inches of mercury engine vacuum, making available vacuum an important consideration when pairing this system with an engine using an aggressive camshaft.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 050107DS
- Product Type: Brake Booster and Master Cylinder Kit
- Application: 1964-1967 GM A-Body
- Brake Booster Diameter: 9 inches
- Brake Booster Type: Dual diaphragm
- Master Cylinder Bore Size: 1 inch
- Master Cylinder Material: Aluminum
- Master Cylinder Reservoir: Included
- Master Cylinder Fittings: Two included
- Adapter Size A: M12 x 1.0 inverted flare male
- Adapter Size B: M12 x 1.0 inverted flare male
- Minimum Vacuum Requirement: 10-12 inches of mercury
- Installation Type: Direct bolt-on
- Brake System Compatibility: Stock or aftermarket brake systems
Features
- Application-specific power brake upgrade for 1964-1967 GM A-Body vehicles
- Designed to provide a late-model performance brake pedal feel
- Compact 9 inch dual-diaphragm power brake booster
- 1 inch bore aluminum master cylinder with reservoir
- Direct bolt-on design for compatible GM A-Body applications
- Designed for use with stock or aftermarket brake systems
- Includes application-specific booster bracket set
- Includes brake booster pushrod
- Includes two brake master cylinder fittings
- Includes brake booster firewall seal and firewall seal plate
- Includes 3/8-24 female pedal clevis and associated installation hardware
- Matched booster and master cylinder package eliminates the need to source the primary components separately
- Well suited for restoration, performance street, pro-touring, autocross, and other performance-oriented classic A-Body builds
Fitment
- 1964 GM A-Body
- 1965 GM A-Body
- 1966 GM A-Body
- 1967 GM A-Body
Fitment Note: Detroit Speed 050107DS is designed for 1964-1967 GM A-Body applications. The power brake booster requires a minimum of 10-12 inches of mercury engine vacuum for proper operation. Verify available engine vacuum before ordering, particularly when the engine is equipped with an aggressive aftermarket camshaft.
FAQs
What is included with Detroit Speed 050107DS?
The kit includes a 9 inch dual-diaphragm brake booster, 1 inch aluminum master cylinder, booster bracket set, brake booster pushrod, two master cylinder fittings, firewall seal and seal plate, pedal clevis components, required installation hardware, and instructions.
How much engine vacuum does Detroit Speed 050107DS require?
Detroit Speed specifies a minimum vacuum requirement of 10-12 inches of mercury. Available engine vacuum should be verified before installation, especially when running an aggressive aftermarket camshaft.
Can Detroit Speed 050107DS be used with aftermarket brakes?
Yes. Detroit Speed states that this brake booster and master cylinder kit is designed to work with stock or aftermarket brake systems.
