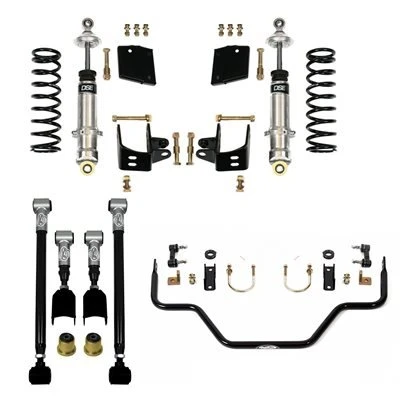

DSE Rear Speed Kit 3 - Factory GM 10-Bolt - 2-3/4 Inch Axle Tubes (043120DS) - 1978-1988 GM G-Body
Step up to a more complete rear suspension package for your GM G-Body with the Detroit Speed Rear Speed Kit 3. Part number 043120DS is engineered for 1978-1988 GM G-Body applications equipped with the factory GM 10-bolt rear axle and 2-3/4 inch axle tubes, excluding wagons. Detroit Speed designed its Speed Kits as integrated suspension systems that help maintain optimum suspension geometry and tire contact throughout rear suspension travel, giving performance-minded G-Body owners a properly matched combination rather than a collection of unrelated suspension upgrades.
The 043120DS package incorporates Detroit Speed's patented Swivel-Link rear-link technology, which allows the suspension to articulate without binding and eliminates the need for noisy spherical rod ends. The Swivel-Link design also allows pinion angle and wheelbase adjustments without removing the links from the vehicle, making it easier to optimize traction and driveline alignment. Detroit Speed combines the rear-link system with non-adjustable shocks, 175 pounds per inch springs with an 11 inch free length, and the additional performance components that make this a Speed Kit 3 package.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 043120DS
- Product Type: Rear Speed Kit
- Speed Kit Level: Speed Kit 3
- Position: Rear
- Application: 1978-1988 GM G-Body
- Rear Axle: Factory GM 10-bolt
- Axle Tube Diameter: 2-3/4 inches
- Shock Type: Non-adjustable
- Spring Rate: 175 pounds per inch
- Spring Free Length: 11 inches
- Rear Link Design: Patented Swivel-Link system
- Pinion Angle: Adjustable
- Wheelbase: Adjustable through Swivel-Link rear links
- Wagon Compatibility: Not compatible
Features
- Rear Speed Kit 3 engineered for 1978-1988 GM G-Body applications
- Designed specifically for the factory GM 10-bolt rear axle with 2-3/4 inch axle tubes
- Integrated suspension package designed to maintain optimum geometry throughout rear suspension travel
- Helps maintain consistent tire contact as the rear suspension moves through its range of travel
- Patented Detroit Speed Swivel-Link rear-link technology allows smooth suspension articulation
- Swivel-Link design eliminates suspension bind without relying on noisy spherical rod ends
- Allows pinion-angle adjustment to help optimize traction and driveline alignment
- Pinion angle can be adjusted without removing the rear link from the vehicle
- Wheelbase can also be adjusted without unbolting the Swivel-Link from the vehicle
- Proper pinion-angle setup can help reduce unwanted driveline vibration
- Includes non-adjustable rear shocks
- 175 pounds per inch rear spring rate
- 11 inch spring free length
- Speed Kit 3 provides a comprehensive performance upgrade for handling-focused G-Body builds
- Well suited for performance street, pro-touring, autocross, and other handling-oriented applications
Fitment
- 1978 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1979 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1980 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1981 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1982 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1983 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1984 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1985 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1986 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1987 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
- 1988 GM G-Body with factory GM 10-bolt and 2-3/4 inch axle tubes, excluding wagon
Fitment Note: Detroit Speed 043120DS is specifically designed for 1978-1988 GM G-Body applications equipped with the factory GM 10-bolt rear axle and 2-3/4 inch axle tubes. Wagon applications are excluded. Because many G-Body vehicles have received rear axle swaps or modifications, verify the rear axle type and actual axle tube diameter before ordering.
FAQs
What rear axle does Detroit Speed 043120DS fit?
Detroit Speed specifies 043120DS for 1978-1988 GM G-Body applications using the factory GM 10-bolt rear axle with 2-3/4 inch axle tubes. Verify both the axle type and tube diameter before ordering if the vehicle's rear axle history is unknown.
What does the Detroit Speed Swivel-Link system do?
Detroit Speed's patented Swivel-Link rear links allow the suspension to articulate without binding or requiring noisy spherical rod ends. The design also allows pinion angle and wheelbase adjustments without removing the links from the vehicle.
Does Detroit Speed 043120DS fit a G-Body wagon?
No. Detroit Speed specifically excludes wagon applications from the fitment for part number 043120DS.
Why Buy Detroit Speed from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension components for performance street cars, pro-touring builds, autocross combinations, and track-focused vehicles. Matching the correct Speed Kit to the rear axle actually installed in your G-Body is critical to getting the right components the first time. Questions about Detroit Speed 043120DS or your GM G-Body suspension setup? Email sales@beefcakeracing.com or call 1-855-827-7223.
